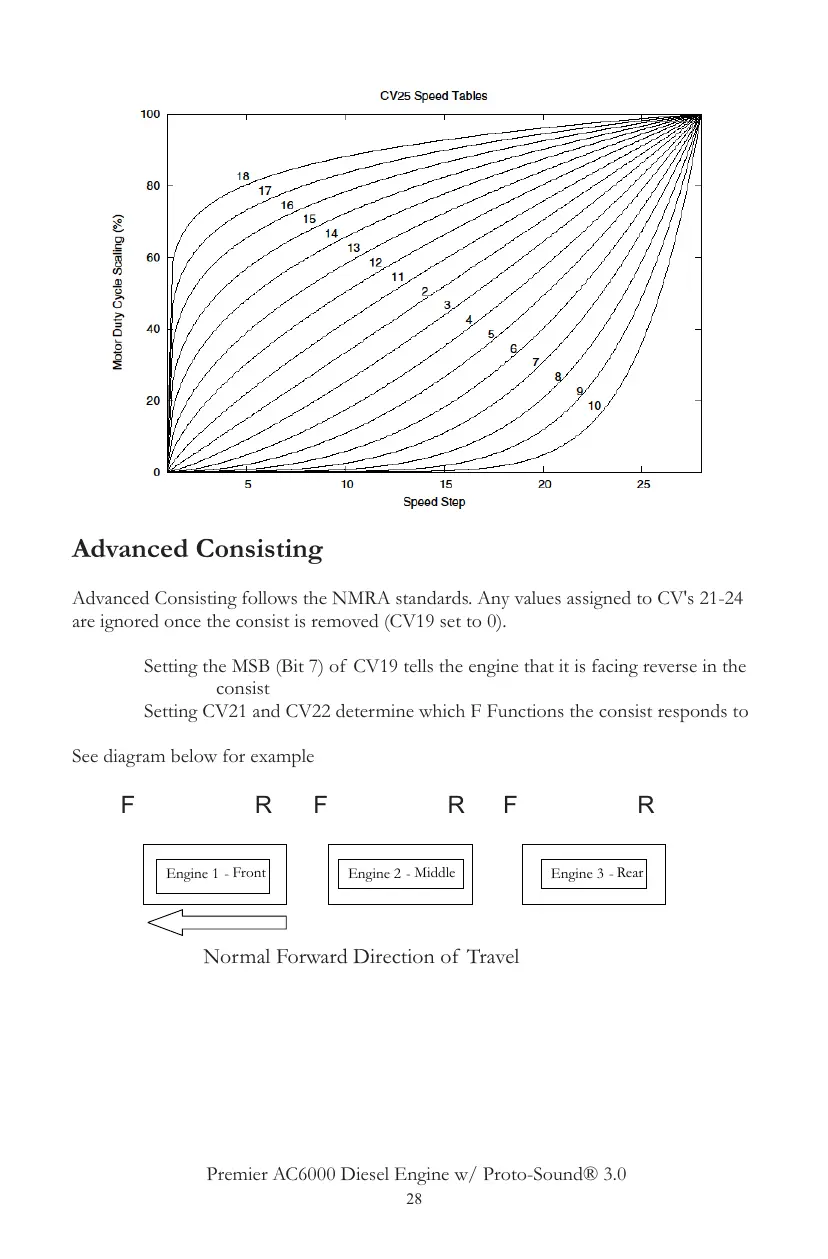

Advanced Consisting
Advanced Consisting follows the NMRA standards. Any values assigned to CV's 21-24
are ignored once the consist is removed (CV19 set to 0).
Setting the MSB (Bit 7) of CV19 tells the engine that it is facing reverse in the
consist
Setting CV21 and CV22 determine which F Functions the consist responds to
See diagram below for example
Normal Forward Direction of Travel
Engine 1 -
Front
Engine 2 -
Middle
Engine 3 -
Rear
F R F R F R
28
Premier AC6000 Diesel Engine w/ Proto-Sound® 3.0
