Series 111 Accumulators
8
Introduction

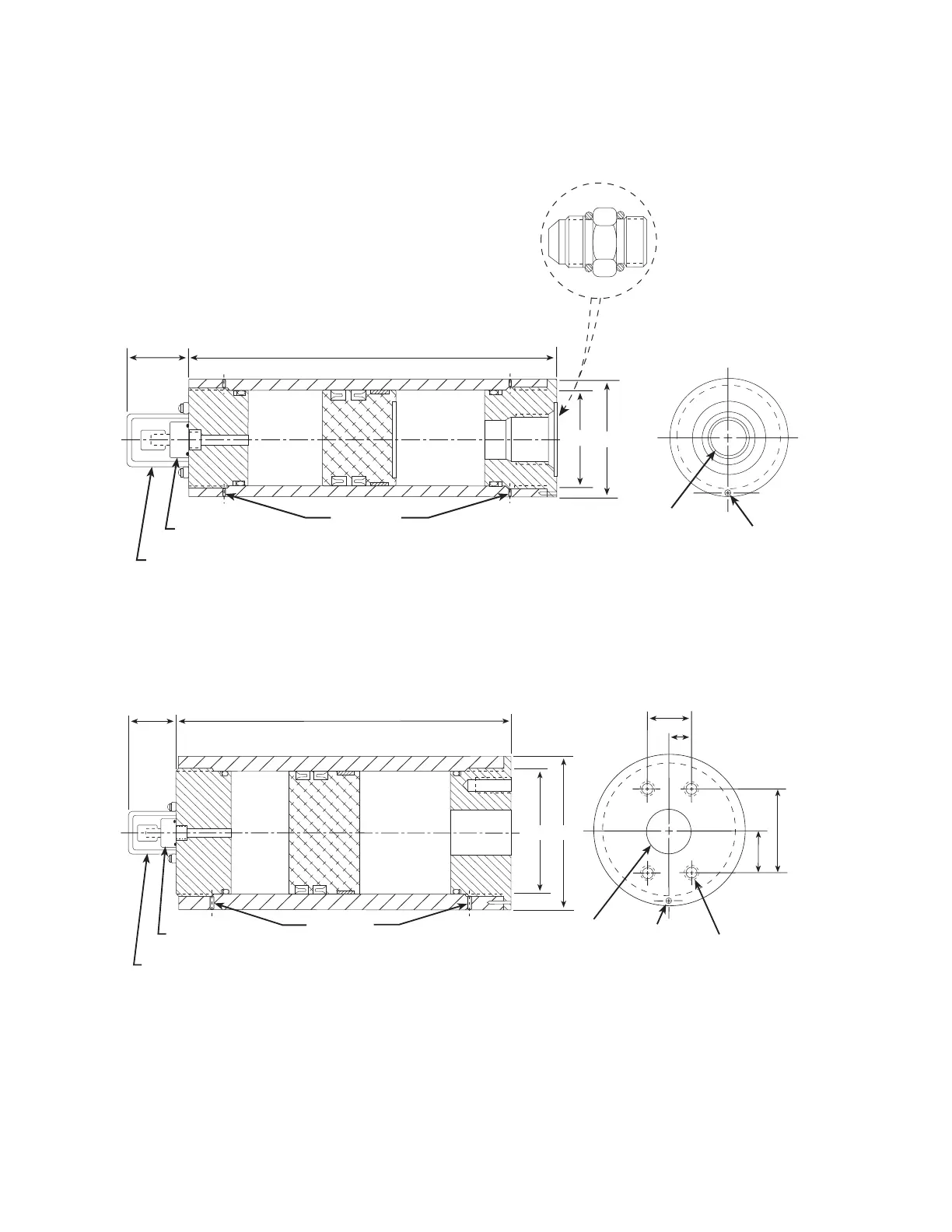

The cross-section figures shown on this page illustrate the difference
between the accumulator models.
Model 111.11B Accumulator Cross-section
Model 111.12C Accumulator Cross-section
A
B
Hydraulic
Fluid Port
Locking Pin
Length
Typical Boss
Adapter Fitting
Ref.
1.563 in.
(39.7 mm)
Protective Cover
Accumulator
Valve Assembly
Relief Vent
Length
Protective Cover
Hydraulic
Fluid Port
Locking Pin
Ref.
1.406 in.
(35.7 mm)
Ref.
0.703 in.
(17.8 mm)
Ref.
2.750 in.
(69.9 mm)
Ref.
1.375 in.
(34.9 mm)
1/2-13 UNC-2B
Accumulator
Valve Assembly
Relief Vent
Ref.
1.563 in.
(39.7 mm)
B
A
