Series 111 Accumulators Installation
9
Installation

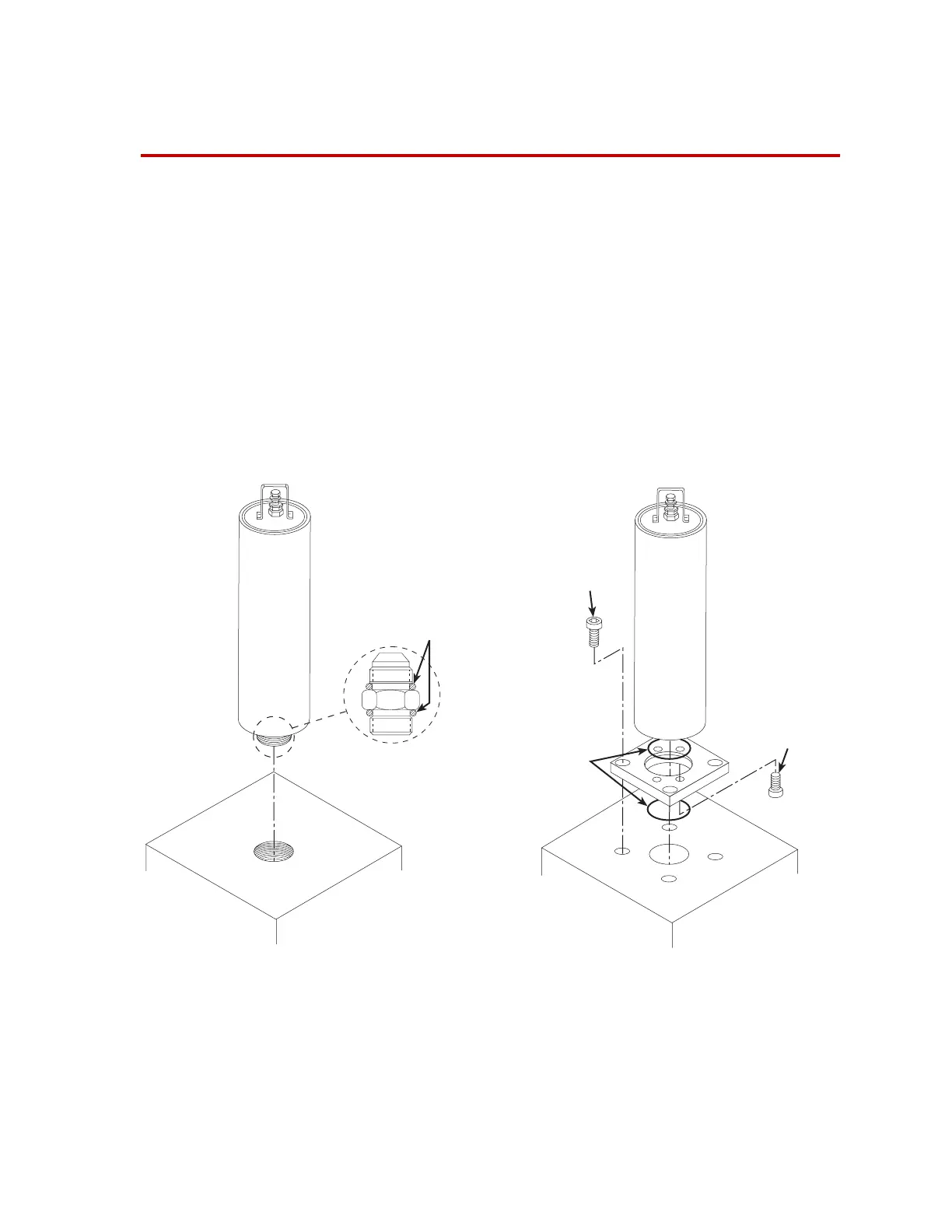

There are two models of the Series 111 Accumulator. The following figure
shows the typical mounting configuration for the Models 111.11B and
111.12C Accumulators.
The Model 111.11B Accumulator is mounted with a boss adapter
fitting and O-ring seals. When the accumulator is ordered as a
component, the boss adapter and O-ring seals are not included with
the accumulator, they must be purchased separately.
The Model 111.12C Accumulator is flush mounted with four bolts and
O-ring seal(s). When the accumulator is ordered as a component, the
four bolts (grade-8) and O-ring seal(s) (max. size 54.28 mm [2.137 in.]
outside diameter, 47.22 mm [1.859 in.] inside diameter), are not
included with the accumulator and must be purchased separately.
Mounting Configurations
Required equipment
The following equipment is required for accumulator installation:
Open-end wrench and strap wrench (for the Model 111.11B)
Hex key set and torque wrench (for the Model 111.12C)
Boss Adapter
Mounting
O-Rings
111.11B
111.12C
3
1
2
4
Accumulator
Mounting
Bolts (4)
Flange
Mounting
O-Rings
Flange
Mounting
Bolt
