MTS Exceed™ Series 40 Product Manual

Model E43 .104Accessory Mounting Dimensions

Installation

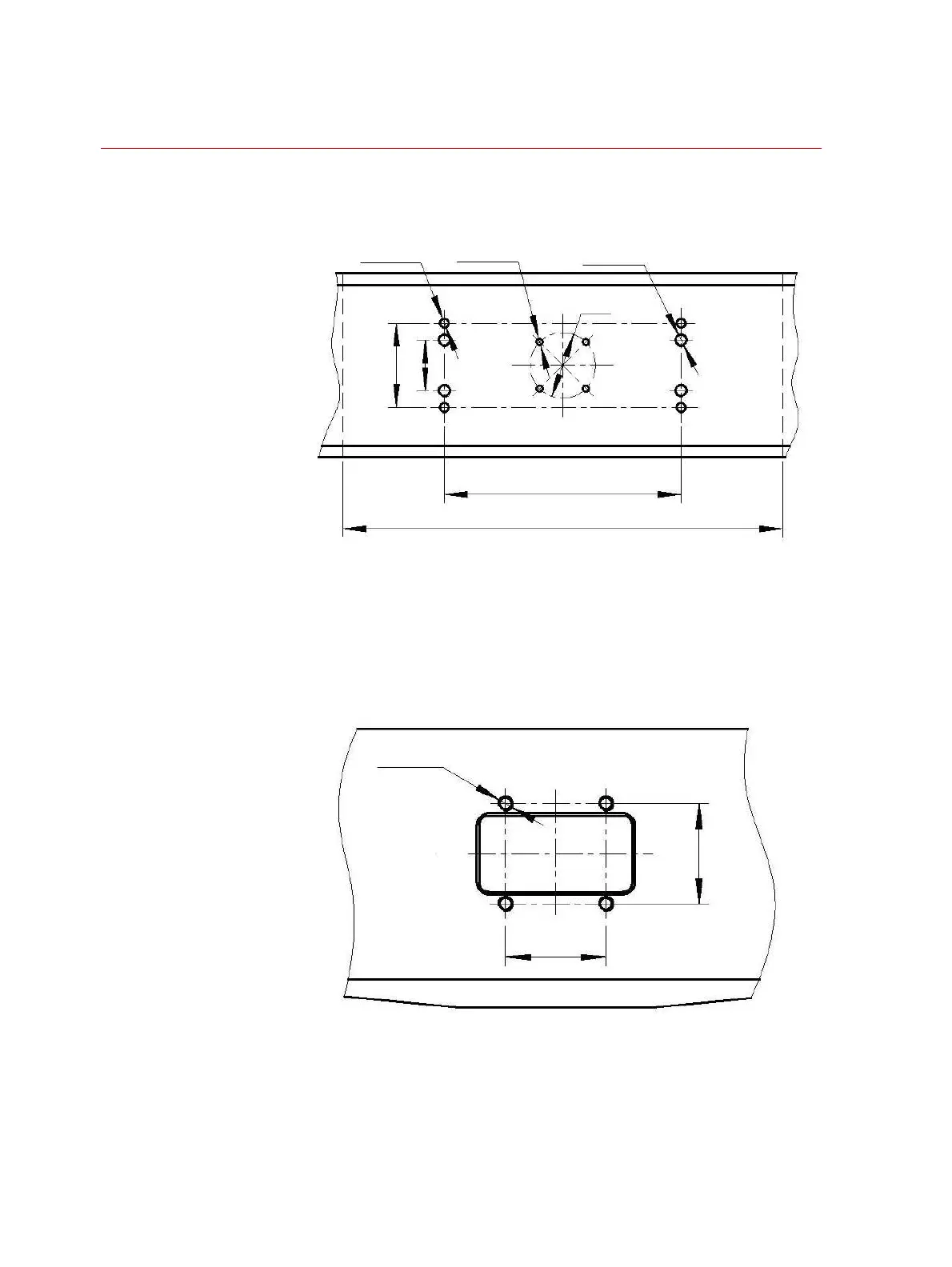

Model E43 .104Accessory Mounting Dimensions

Base beam

Crosshead

Φ50

4-M6x15

4-M8x20

340 Horizontal Clearance

180±0.1

64±0.1

4-M10x20

Model E43.104 Base Beam Mounting Dimensions

Model E43.104 Crosshead Mounting Dimensions

42±0.1

50±0.1

4-M6x12

0Exceed product manual.book Page 56 Wednesday, August 27, 2014 2:55 PM
