Page 106 (Drain and vent points (Right Side))
MTU 18V2000G26F - Drain and vent points (Right Side)
147 pages
Manual
Save Page as PDF
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

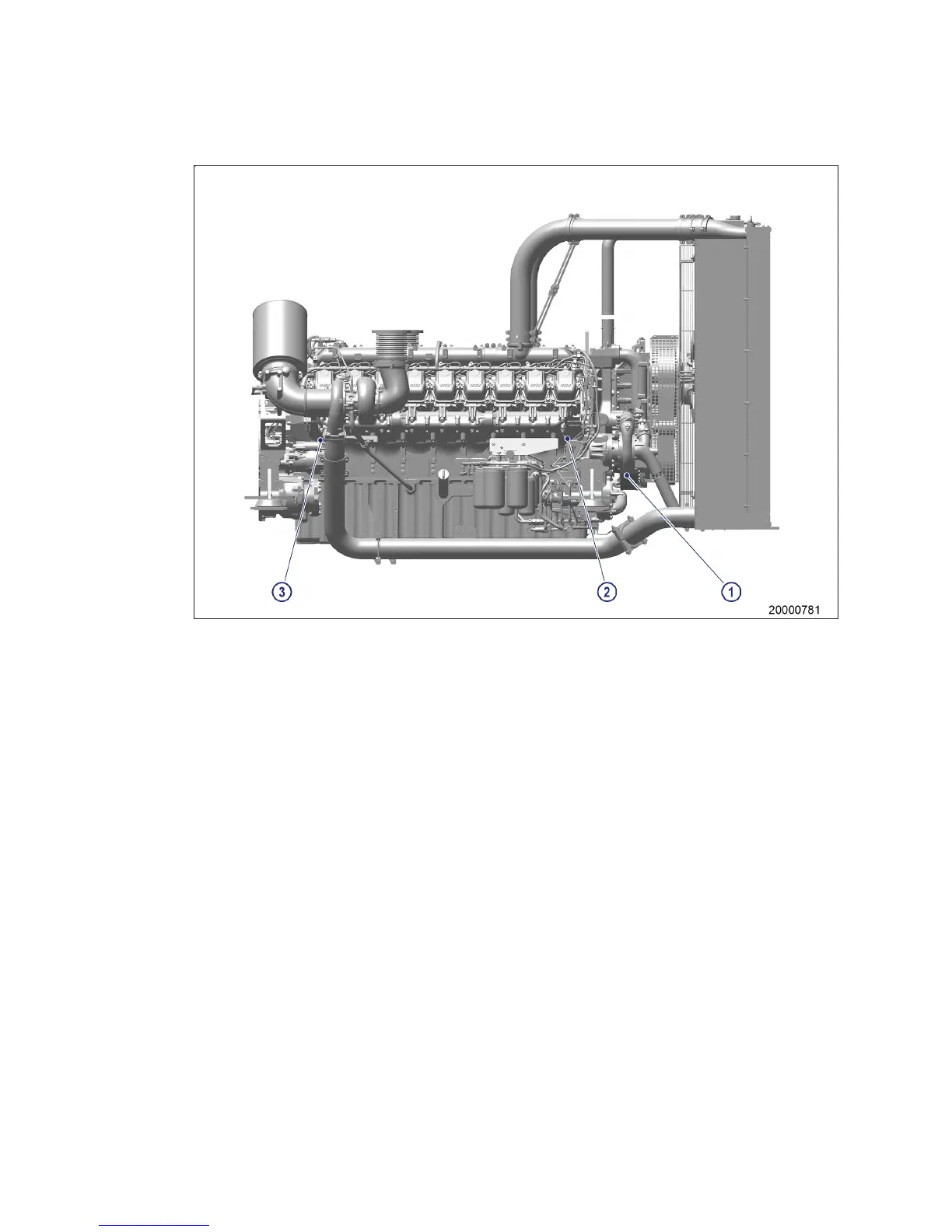

Right side
1
Coolant drain plug, engine
coolant
2
Coolant drain plug, crank-
case free end
3
Coolant drain plug, crank-
case driving end
Also applies to 12 V and 16 V engines.
106
|
Task Description
|
MS150118/00E 2014-07
TIM-ID: 0000053457 - 001
105
107
