Section B. Technical data Belarus – 90/92 Operating manual
23

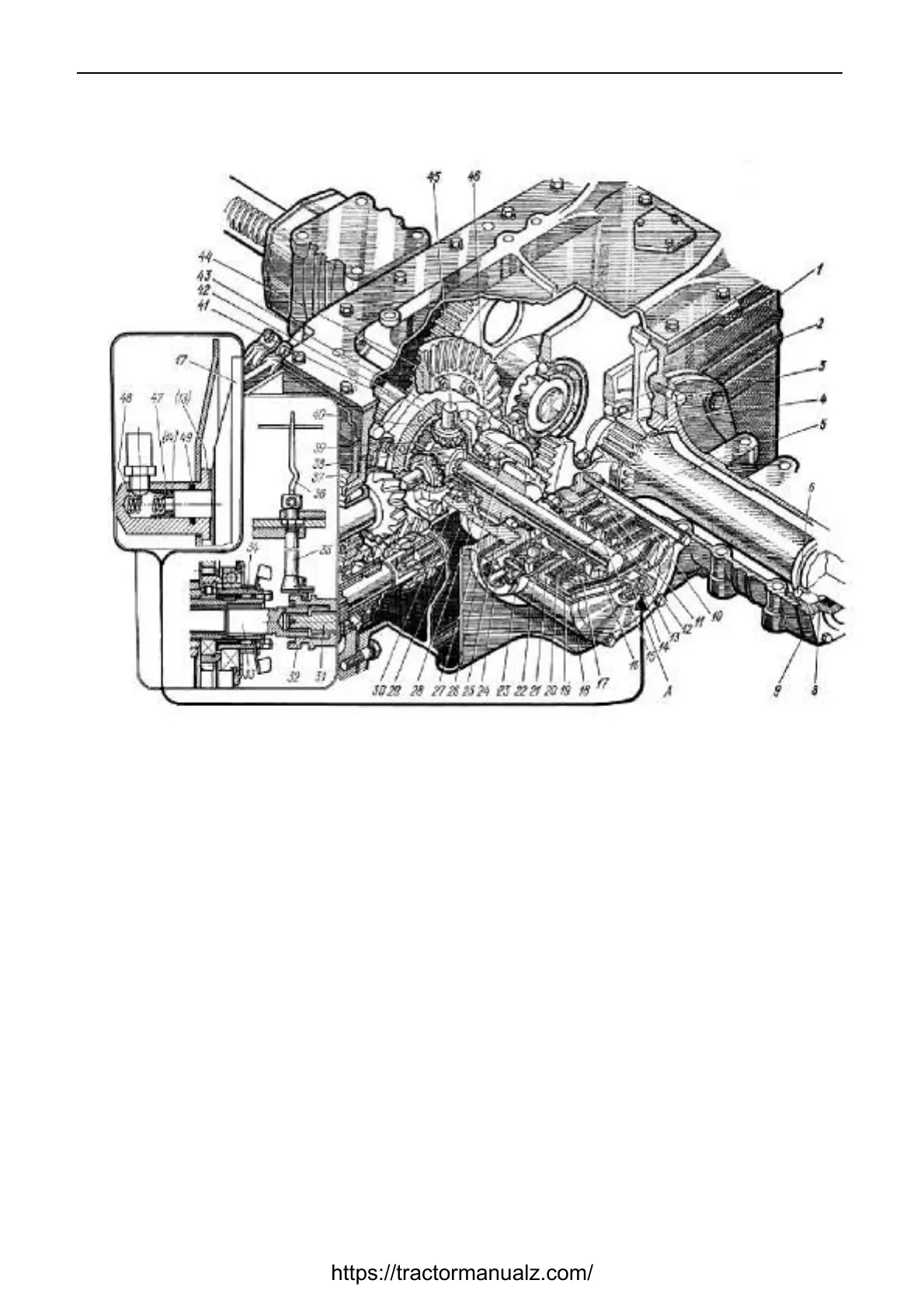

Rear axle:
1 — casing; 2 — bearing (217А) of half-axle; 3
— driven gear of final drive; 4 — half-axle
sleeve; 5— half-axle; 6 — bearing (217А) of
half-axle; 8 — cover; 9 — collar; 10 —
expansion springs; 11 — pressure plate; 12 —
brake disc; 13 — adapter connector; 14 — ring;
15 — coupling spring; А — working space of
lockup clutch; 16 — diaphragm cover; 17 —
backing plate; 18 — pressure disc; 19 —
diaphragm; 20 — spacing disk; 21 — clutch
housing of GB; 22 — clutch casing of GB; 23 —
brake casing; 24 — plug; 25 — left drive gear of
half axle; 26 — adjusting shims;
27 — clutching axle of GD; 28 — left bearing cup;
29 —drive gear bearings of final gears; 30 — left
differential bearing (7215А); 31 — crown gear
shafting; 32 — clutching; 33 — inner shafting; 34
— gear of synchronous power take off; 35 —
operation roller; 36 — power take off lever; 37 —
half-axle gear; 38 — back-up plate of half-axle
gear; 39 — differential cover; 40 — sattelite; 41
— right drive gear of final gear; 42 — ball washer
of satellites; 43 — differential casing; 44 — axle
driven gear; 45 — crossing; 46 — tightening bolts
of differential casing; 47 — bush; 48 — spring; 49 —
ring.
