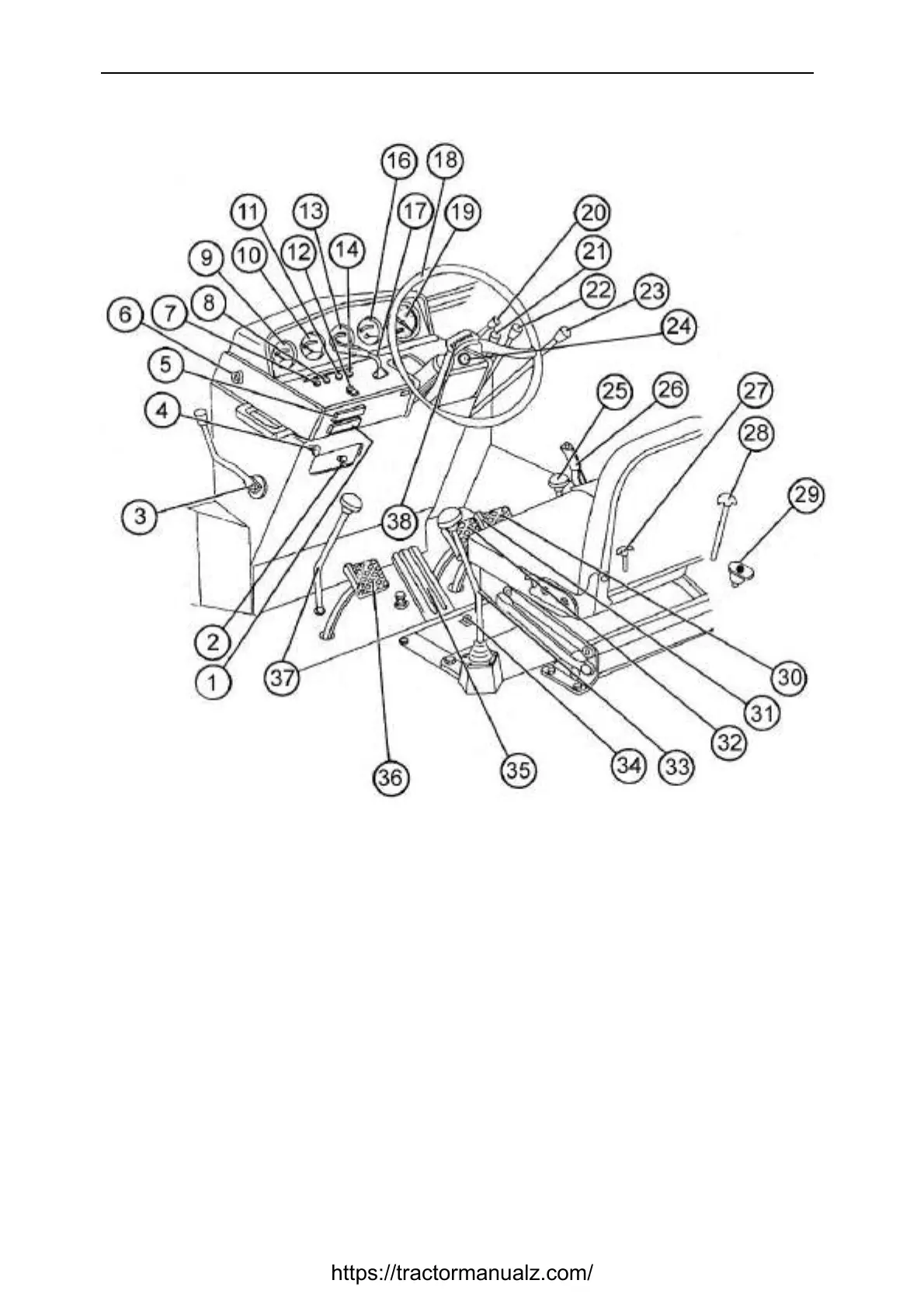

Section C. Controls and Instruments
1. Bottom block of fuses;
2. Handle of diesel engine stop;
3. Lever of fuel submission control;
4. Handle of differential block control;
5. Top block of fuses;
6. Switch of alarm system;
7. Control lamp of emergency drop of oil
pressure drop in diesel engine (red colour);
8. Control lamp of contamination of air filter
(red colour);
9. Index of temperature of cooling liquid of
diesel engine;
10. Index of pressure;
11. Control lamp of indexes of turn (green
colour);
12. Central switch of light;
13. Index of level of fuel in tanks;
14. Control lamp of high beam (dark blue color);
16. Index of pressure of oil in diesel engine;
17. Multipurpose switch, (index of turns, high
beam/lower beam, horn, signal system of
high beam);
18. Steering wheel;
19. Tachospeedometer;
20. Handle of fixator of steering column;
21, 22, 23. Levers of hydraulic hydrosystem
control;
24. Switch of starter;
25. Level of control of rear PTO. It has two
positions: bottom – “PTO is switched off”,
top – “PTO is switched in”.
26. Lever of control of parking brake;
27. Draft of control of transfer box;
28. Lever of control of mechanism of hitching
device;
29. Switch of “weight” of storage batteries;
