Section C. Controls and Instruments Belarus – 90/92 Operating manual
30
Electrical equipment connection
elements
Standard seven pin socket is intended
for connection of consumers of current of
transport machine or hook-on agricultural
instrument. It is installed on rear
support of cabin. Pin plug of plait of
wires of hook-on machines is connected
to socket.

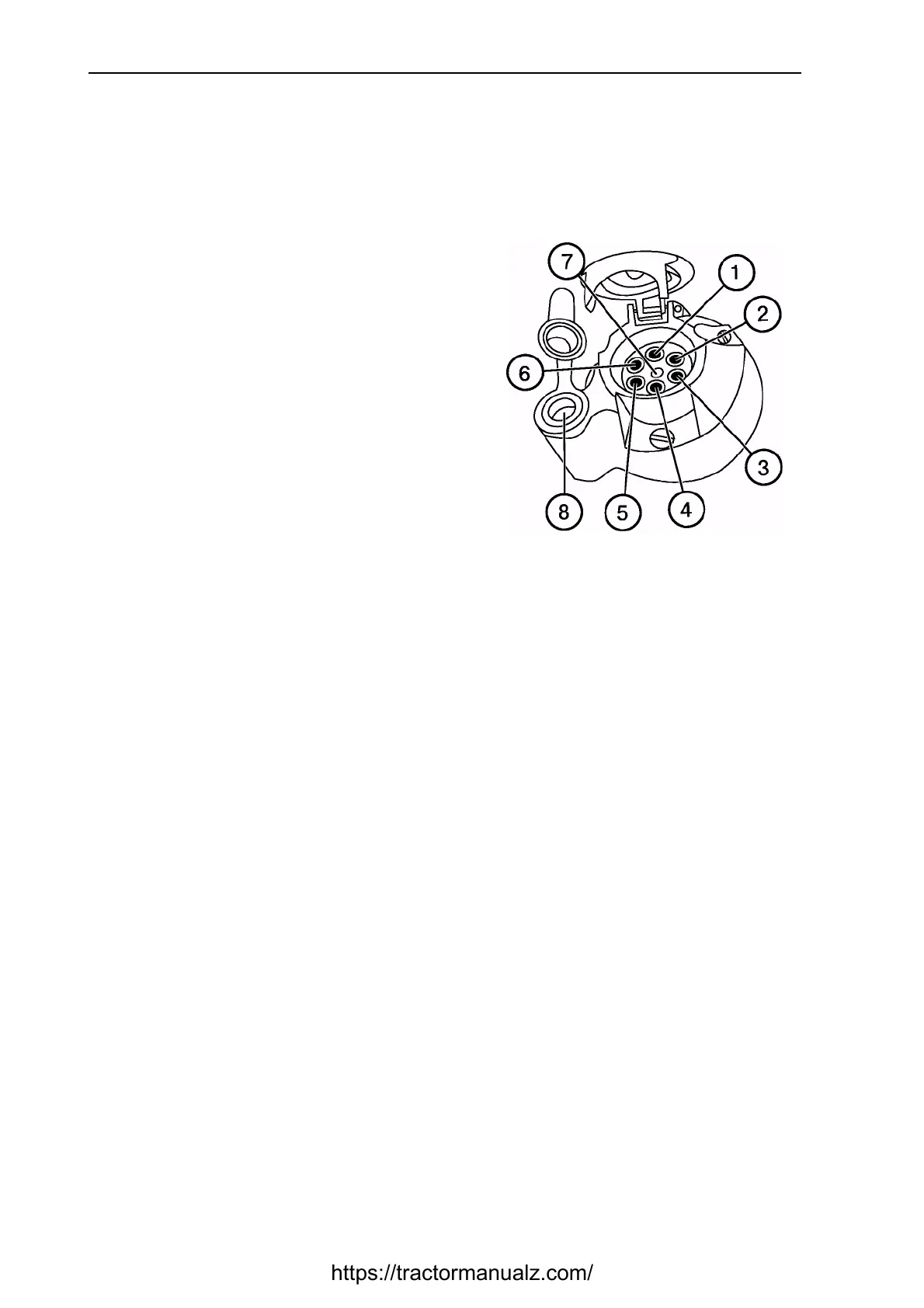

Marking of plugs of socket:
1 —Index of left turn;
2 —Horn;
3 — «Weight»;
4 —Index of right turn;
5 —Right dimensional light;
6 —Stop-signal;
7 —Left dimensional light;
8 — Connection of portable lamp and
other consumers with current loading till 8
ampere.
