MTX RFL Series - EBC Adjustment; Amplifier Gain Settings; External Bass Control Settings; Active Fan Cooling Warning

SERIES

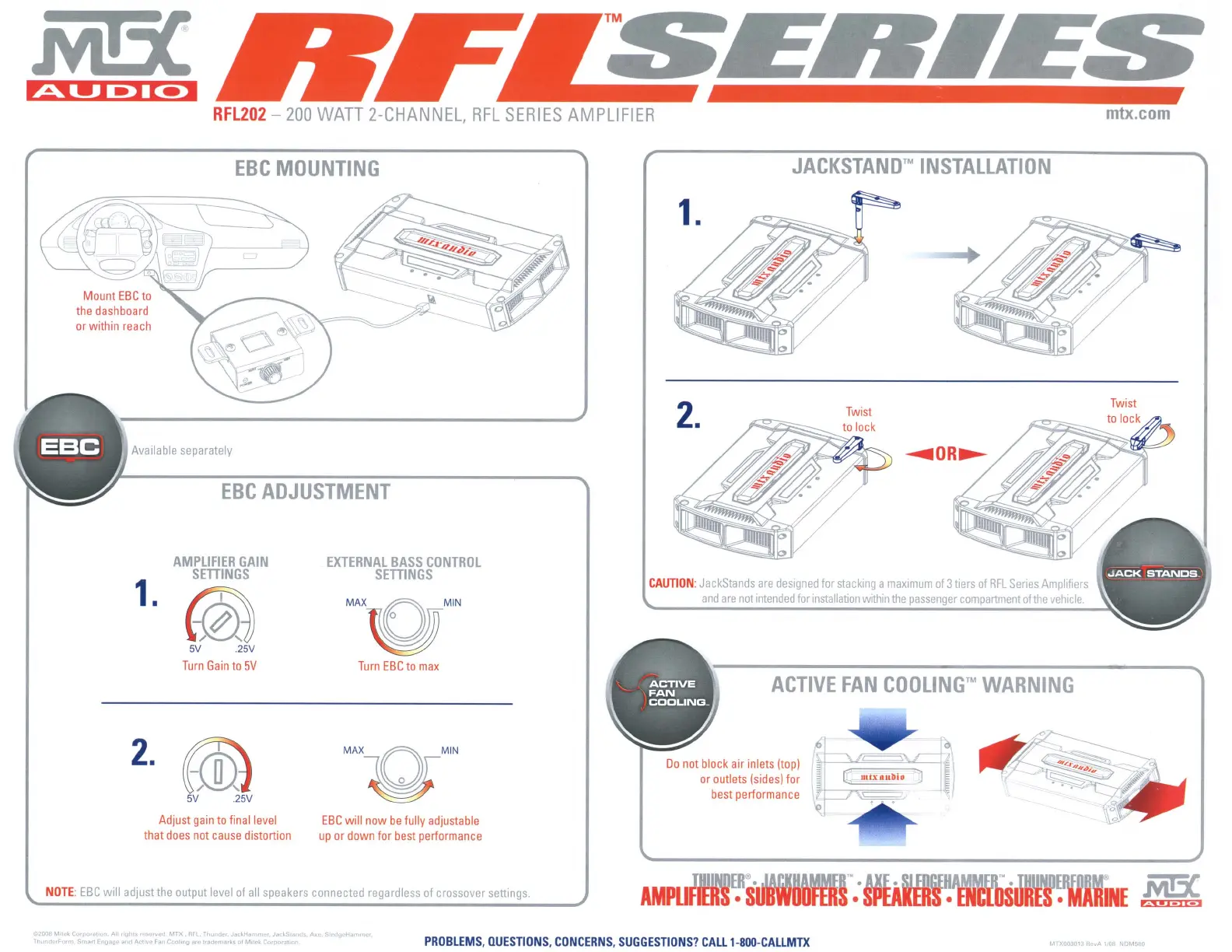

RFL202 - 200 WATT 2-CHANNEL, RFL SERIES AMPLIFIER
mtx.com
EBC MOUNTING
JACKSTANDTM INSTALLATION
~OR~
Twist
to lock
ACTIVE FAN COOllNGTM WARNING
2.
Do not block air inlets (topl
or outlets (sides) for
best performance
CAUTION: JackStands are designed for stacking a maximum of 3 tiers of RFL Series Amplifiers
and are not Intended for installation within the passenger compartment of the vehicle.
Turn ESC to max
EXTERNAL BASS CONTROL
SETIINGS
ESC will now be fully adjustable
up or down for best performance
EBC ADJUSTMENT
AMPLIFIER GAIN
SETIINGS
@
5V .25V
Turn Gain to 5V
@
5V .25V
Adjust gain to final level
that does not cause distortion
1.
Available separately
2.
NOTE: ESC will adjust the output level of all speakers connected regardless of crossover senings.
ved MTX RI Th el aclr.HlI n rJack s.
Fan C .ng Bre ademaR$ j M air. potlll
