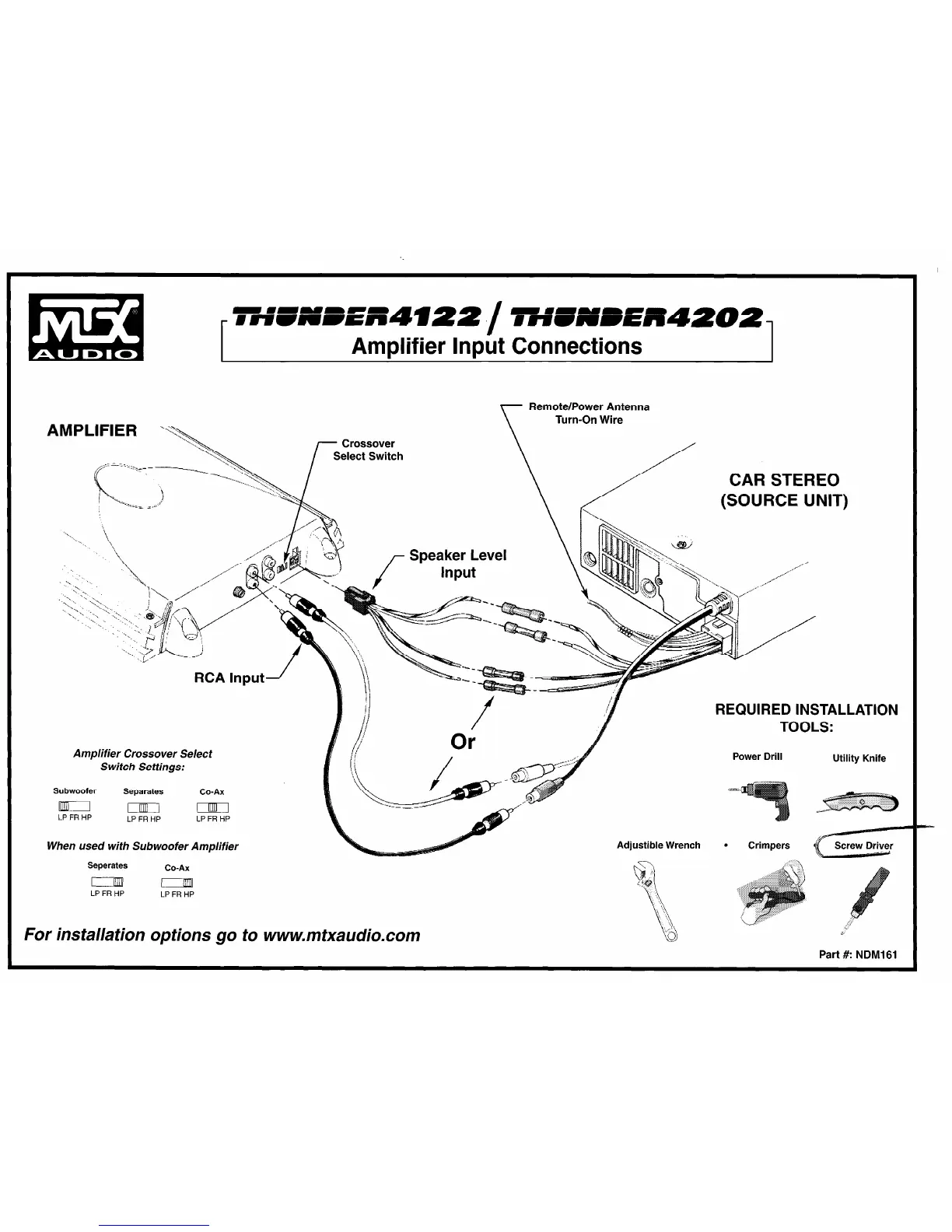

Amplifier Input Connections
1
RCA Input
\ Remote/Power Antenna
AMPLIFIER y
Turn-On Wire
Amplifier Crossover Select
Switch Settings:
Subwoofer
Separates
Co-Ax
LQiIr m m
LP FR HP
LP FR HP LP FR HP
When used with Subwoofer Amplifier
Seperates
Co-Ax
LIIIm I
LP FR HP
LP FR HP
CAR STEREO
(SOURCE UNIT)
REQUIRED INSTALLATION
TOOLS:
Power Drill
Utility Knife
Adjustible Wrench l
Crimpers
For installation options go to www.mtxaudio.com
Part #: NDM161
