Gearbox control (24F+12R) (if installed)
Gears shifting lever (2)

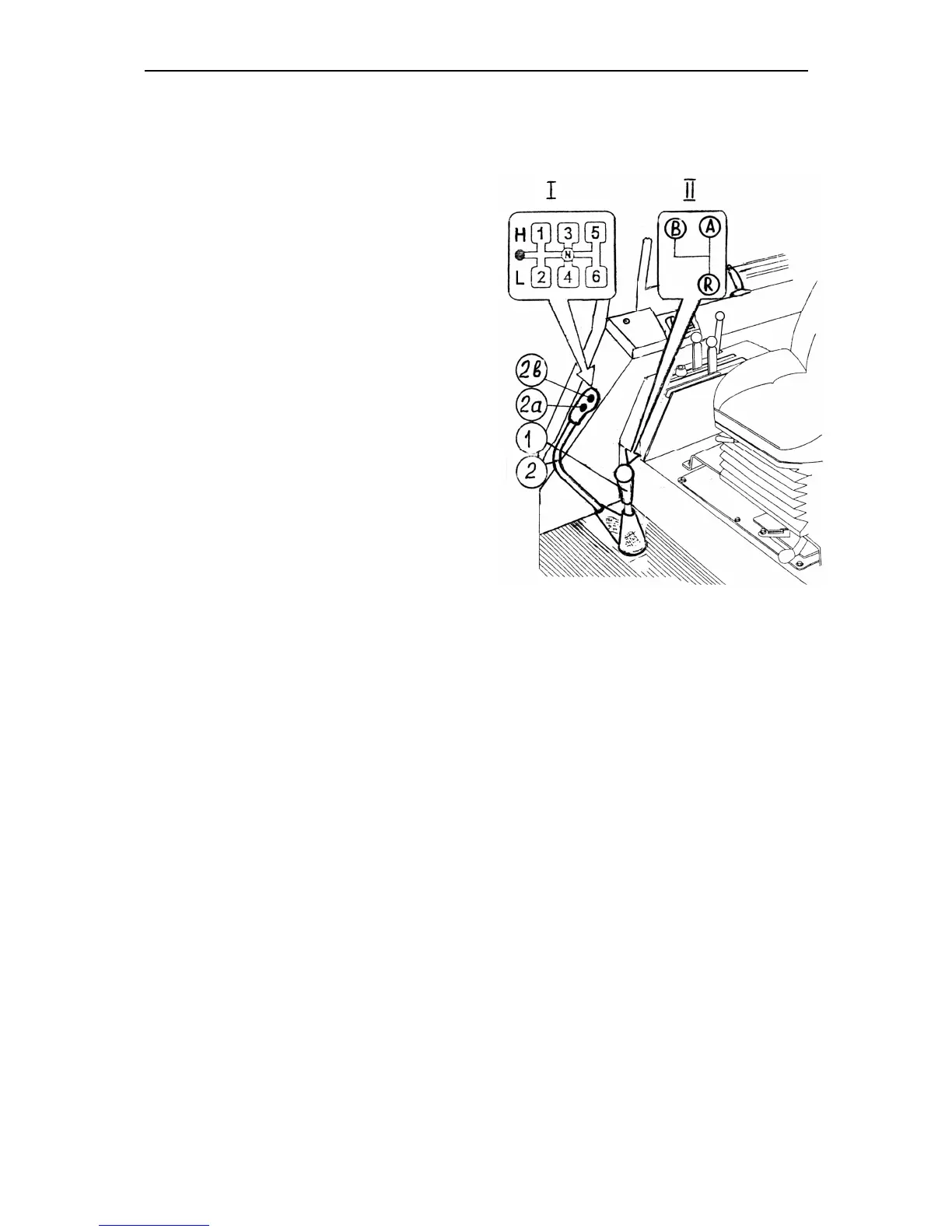

The shifting pattern is shown in the fig-
ure on the right (pattern I).
“On” button (2) of gearbox reducer
low gear (L).
On” button (2) of gearbox reducer
high gear (H).
Ranges shifting lever (1)
The shifting pattern is shown in the fig-
ure on the right (pattern II).
 – two low ranges of forward motion;
 – two high ranges of forward motion;
R – two ranges of reverse motion;
 –high pass of gearing;
L – low pass of gearing.
