MTZ 1220.1/1220.3 Section D. Construction and Operation
D45
The functions of control of the RHL
and hydroficated working members of
the external consumers are imple-
mented in the new hydraulic system
(Fig. E-32) at the cost of the electro-
hydraulic block (3) mounted on the oil
tank (1). The lever control of the dis-
tributor (2) and 32-3 the gear
pump are similar for all the versions of
the above hydraulic systems
.

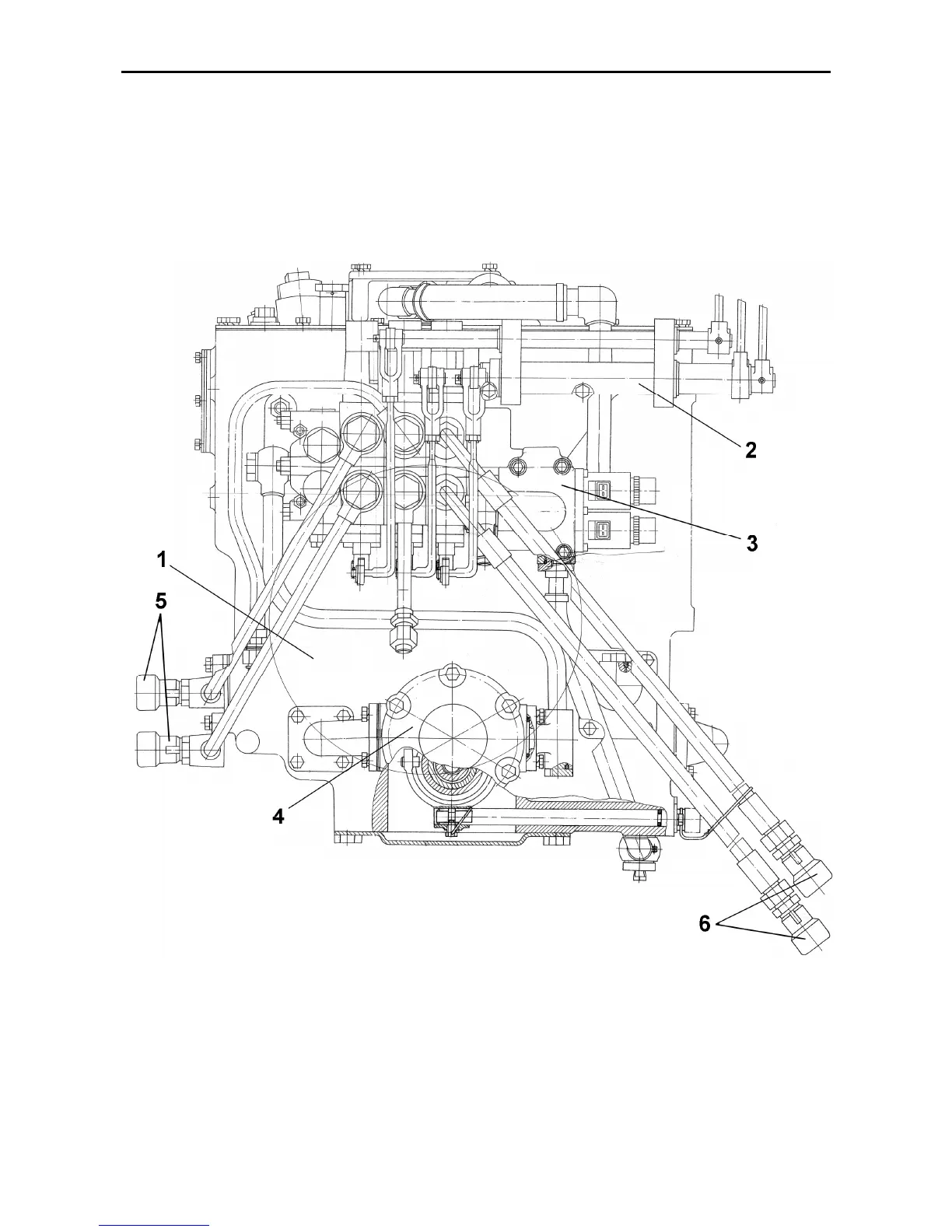

Fig. D-32. Casing of the hydraulic units assembled with the other ones
1 – oil tank; 2 – distributor control; 3 – electro-hydraulic unit (RS 213 “Mita” + adaptor +
R5); 4 – 32-3 pump; 5, 6 – side leads.
