Pg. 3………Mounting
Pg. 3………Break In
Pg. 4………Fuel and Storage
Pg. 4………Battery
Pg. 5………Trailering
Pg. 6..…….Oil
Pg. 6………Start Switch
Pg. 7………Starting
Pg. 7………Safety Lanyard
Pg. 8………Shifting
Pg. 9...……Trim Switch
Pg. 9...……Running
Pg. 10.……Handle Bolt Tension
Pg. 10.……Skeg Adjustment
Pg. 11.……Engine & Drive Service
Pg. 12.……Owners Responsibilities
Pg. 13.…...Check Oil
Pg. 14….…Engine RPM
Pg. 15……Owner Service
Pg. 15……Frame Grease
Pg. 16……Drive Greasing
Pg. 16……HDR Transmission Service
Pg. 17……Emissions Control
Pg. 17……Carburetor Adjustments
Pg. 18……How to Adjust Valve Lash
Pg. 19……Belt Tension Adjustment
Pg. 20……Spark Plug Gap
Pg. 20……Inspect Muer
Pg. 20……Change Oil Filter
Pg. 21……Service the Air Filter
Pg. 21……Clean the Air Cooling
System
Pg. 21……Fuel Filter
Pg. 22……Storage – Fuel System
Pg. 24…...Common Replacement
Periods
Pg. 25……Warranties
Pg. 28……Control Box Wiring
Pg. 29……HDR Wire Diagram
Pg. 30……HD Wire Diagram
Pg. 31……HDR 2019 Wire Diagram
Pg. 32……Belt Drive Reverse
Assembly
Pg. 33……Cover Assembly Tall
Reverse
Pg. 34……Handle Assembly
Pg. 35……Clamp Mount Assembly
Pg. 35……Drive Assembly
Pg. 36……Trouble Shooting
Momentary Forward
Bump Switch
Safety Kill Switch
Lanyard -
to be worn at all
times.
Trim Up and Down
HDR – Rear position is reverse gear.
Center position is neutral/start.
Forward position is forward gear.
HD - Center position is neutral/start.
Forward position is forward gear

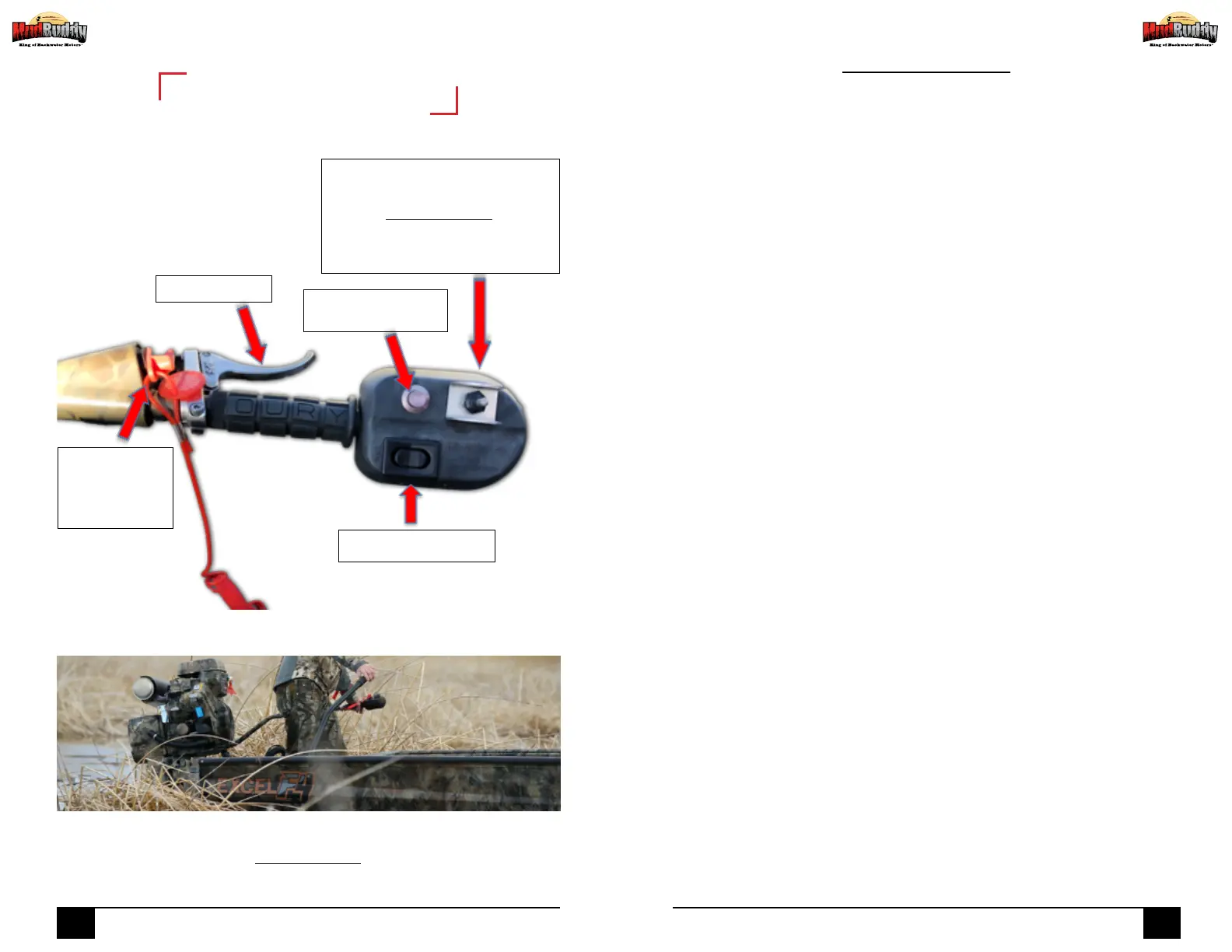

MUD BUDDY CONTROLS
HD model has forward and neutral.
HDR model has forward, neutral and reverse.
1 2
