C. Installation with Adapters:
(only for use
in
homes where only one
line
is
used,
and
each
jack has four wires attached)
Ring Supervision:
Excellent
Barge-in Protection:
Excellent
Install,
Ease/Expense
Good
Materials
Needed: 1 two-line splitter for
each
existing wall
jack,
1
line
cord.
To Telephone
Co. Central
Office
l=

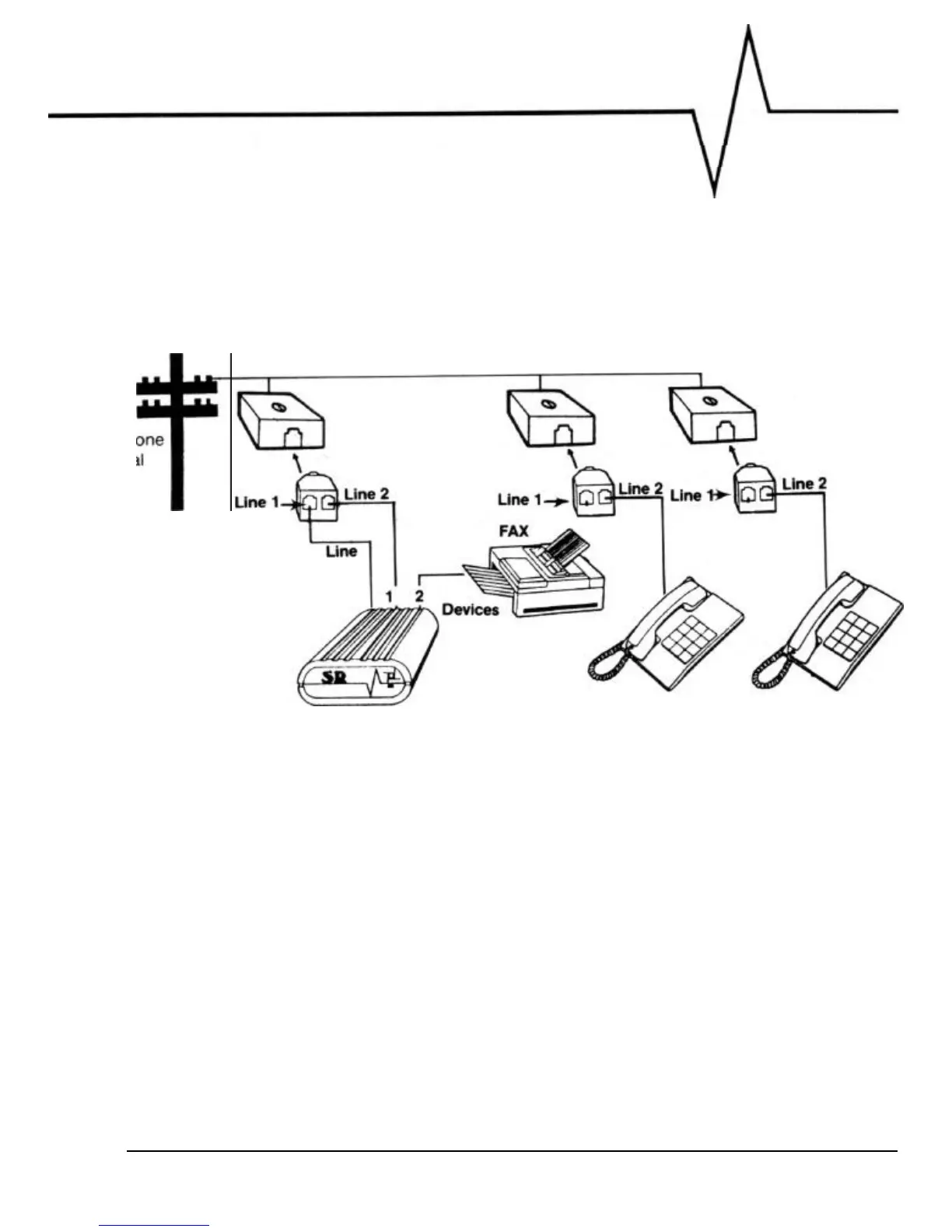

If your home has 4 or 6-wire cable to
each
wall
jack,
you can make your
installation look electronically like installation B by using
special
2-line (to
1-line) splitter
adapters*.
The adapters will utilize
an
unused pair of wires
in
your home to connect your telephones.
1) Choose a location where there
is
an
existing wall
jack
and where only
one phone or data device will be connected BY ITSELF to a DEVICE
jack.
You will
install
your SR at this location.
2) Unplug anything connected to this wall jack and plug the 2-line
adapter*
into the wall
jack.
3) (READ CAREFULLY) Connect the “LINE”
jack
of your SR to the
“LINE 1” side of the 2-line adapter with the supplied line
cord.
* Refer to Recommended
Parts
and Materials Section, page 22
Sectiuo2.
