Multi PSI Multi-160 - Replace Nozzle and Needle

16 | Droit d’auteur Multi PSI. Toutes les informations contenues dans ce document sont sujettes à
modification sans préavis. Copyright Multi PSI. All information contained herein is subject to change
without notice.
Replace nozzle and needle ?
When disassembling the nozzle, please pull the trigger first, then press and remove the nozzle.

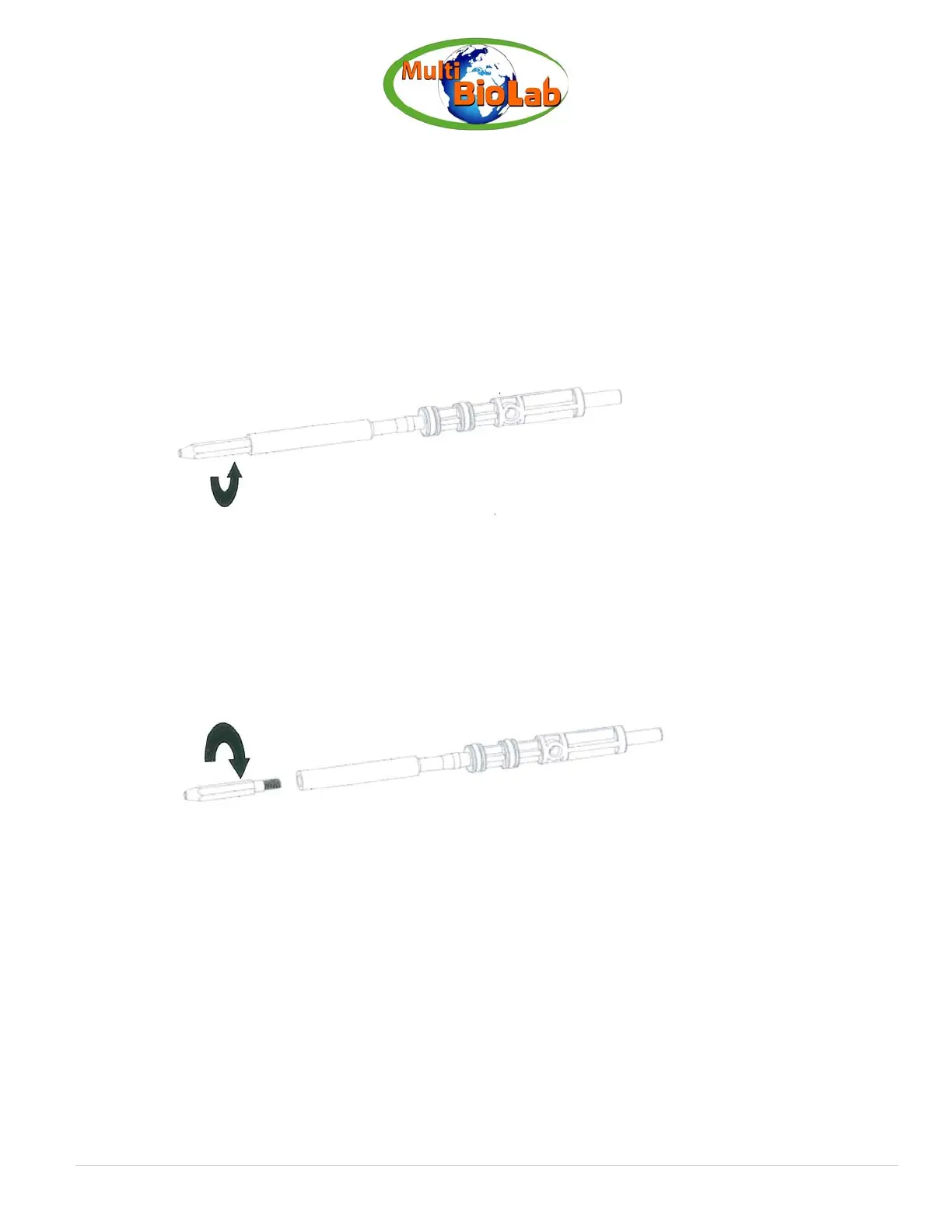

a. As shown in the figure, rotate to remove the needle.
b. As shown in the figure, rotate to set up the needle.
