Multiplex 2803 User Manual

Operation Section 3
3-2 Part Number 000003912 6/17
How the Multiplex Works
The Model 2803 is a 1/3 HP refrigeration unit that will
provide pre-mix carbonated beverages and chilled
carbonated water for up to 6 gal (3 L) of syrup/day or
280 drinks/day (2,000 gal/yr) with a 40 ft (12 m)
maximum conduit length. This is a remote refrigeration
unit that derives its peak draw capacity from the reserve
ice bank produced from a capillary tube refrigeration
system. This system is controlled to cycle ON and OFF
by the operation of the ice bank control. The sensing
bulb that controls the ice bank is located on an
adjustable bracket in the water bath.
The Model 11M is a 1/2 HP refrigeration unit that will
provide premix carbonated beverages and chilled
carbonated water for up to 12 gal (45 L) of
syrup/day or 560 drinks/day (4,000 gal/year) with a
100 ft (30 m) maximum conduit length. This is a remote
refrigeration unit that derives its peak draw capacity from
the reserve ice bank produced from a capillary tube
refrigeration system. This system is controlled to cycle
ON and OFF by the operation of the ice bank control.
The sensing bulb that controls the ice bank is located on
an adjustable bracket in the water bath.
The Multiplex Model 44M is a 1 HP refrigeration unit that
will provide pre-mix carbonated beverages and chilled
carbonated water for up to 32 gal (121 L) of
syrup/day or 1,400 drinks/day (11,500 gal/yr) with a
250 ft (80 m) maximum conduit length. This refrigeration
unit is a remote refrigeration unit that derives its peak
capacity from the reserve ice bank produced from a
capillary tube system. This system is controlled to cycle
ON and OFF by the operation of the ice control. The
sensing bulb that controls the ice bank is located on an
adjustable bracket in the water bath.
The Multiplex Model 50M 2.2 HP Pre-mix refrigeration
unit will provide pre-mix carbonated beverages and
chilled carbonated water for up to 42 gal (159 L) of
syrup/day or 2,000 drinks/day (15,000 gal/yr) with a
350 ft (107 m) maximum conduit length. This
refrigeration unit is a remote refrigeration unit that
derives its peak capacity from the reserve ice bank
produced by the operation of the compressor. This
system is controlled to cycle ON and OFF by the
operation of the ice bank control. The sensing bulb that
controls the ice bank is located on an adjustable bracket
in the water bath.

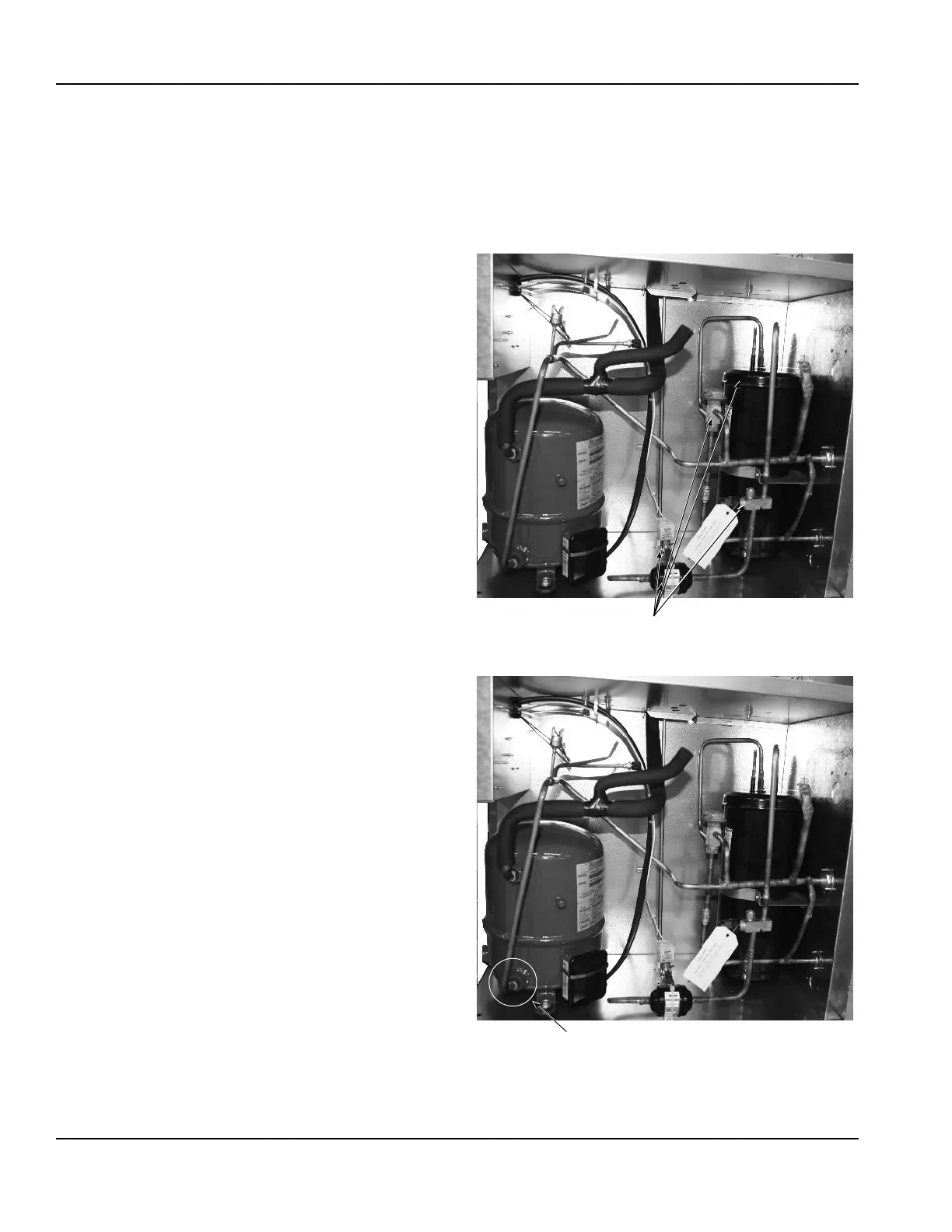

Differences Between the TS & SS Units
The Model 50M and 44M have 2 different sets of part
numbers. Starting in 2007 the Model 50M part numbers
no longer begin with a SS and now begin with a TS. The
following shows you how to tell the difference between
the TS version of the Model 50M and 44M and the SS.
• The TS uses common components from Manitowoc ice makers
to assist in product and parts availability.
• The TS compressor is mounted with bolts instead of studs.
