Multiplex FreshBlender Instruction Sheet

3 of 3
DocumentNumber:020008727 April14,2021
Subject:FreshBlenderCasterBrakeRetrofit

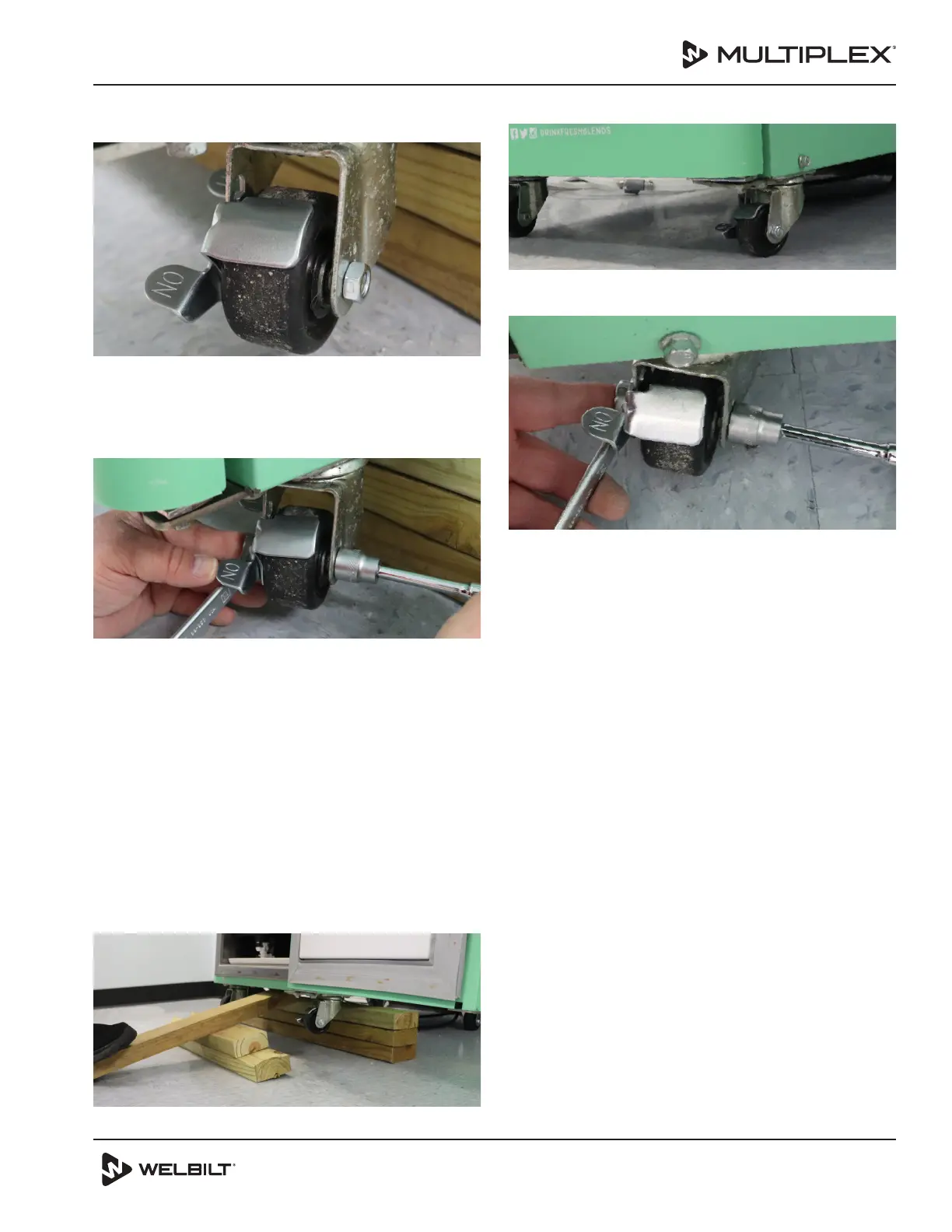

17.Place1-2dropsofBlueLocTiteontonutthenthreadnut
ontobolt.
18.Placewrenchoncasterboltandplacesocketoncaster
nut.Turnsockettoinstallnutwhileusingwrenchto
holdbolt.EndofBoltshouldbeflushwithendofnut.
DoNOTovertighten.WithBrakePedalinOFFposition,
wheelshouldturn.
19.Repeatsteps13-18forinstallingbrakehardwarefor
otherfrontwheel.
20.Stacktwo(2)boards6”(2.4cm)awayandparallelto
frontofunit.Theseboardswillbeusedasafulcrumto
liftfrontofunit.
21.Slideone(1)board3”(1.2cm)underfrontofunitand
layperpendicularontopoftwo(2)boardslayinginfront
ofunit.Thisboardwillbeusedasalevertoliftfrontof
unit.
22.Openlowerrefrigerationdoor.Doormustbeopento
preventdamagetodoorandunit.
23.Onepersonshouldcarefullysteponendofleverwhile
secondpersonslidesthethree(3)boardstackoutfrom
underunit.
24.Gentlylowerunitandremoveboards.
25.Testeachnewcasterbrakeassembly.Adjustif
necessary.
26.Closelowerrefrigerationdoorandlockunit.
27.Removedrainbucket.
28.Pushunitintoplace.
29.Connectdrain.
