MAYCO LS300 CONCRETE PUMP • OPERATION AND PARTS MANUAL — REV. #4 (06/21/10) — PAGE 75
HYDRAULIC SYSTEM DIAGRAM

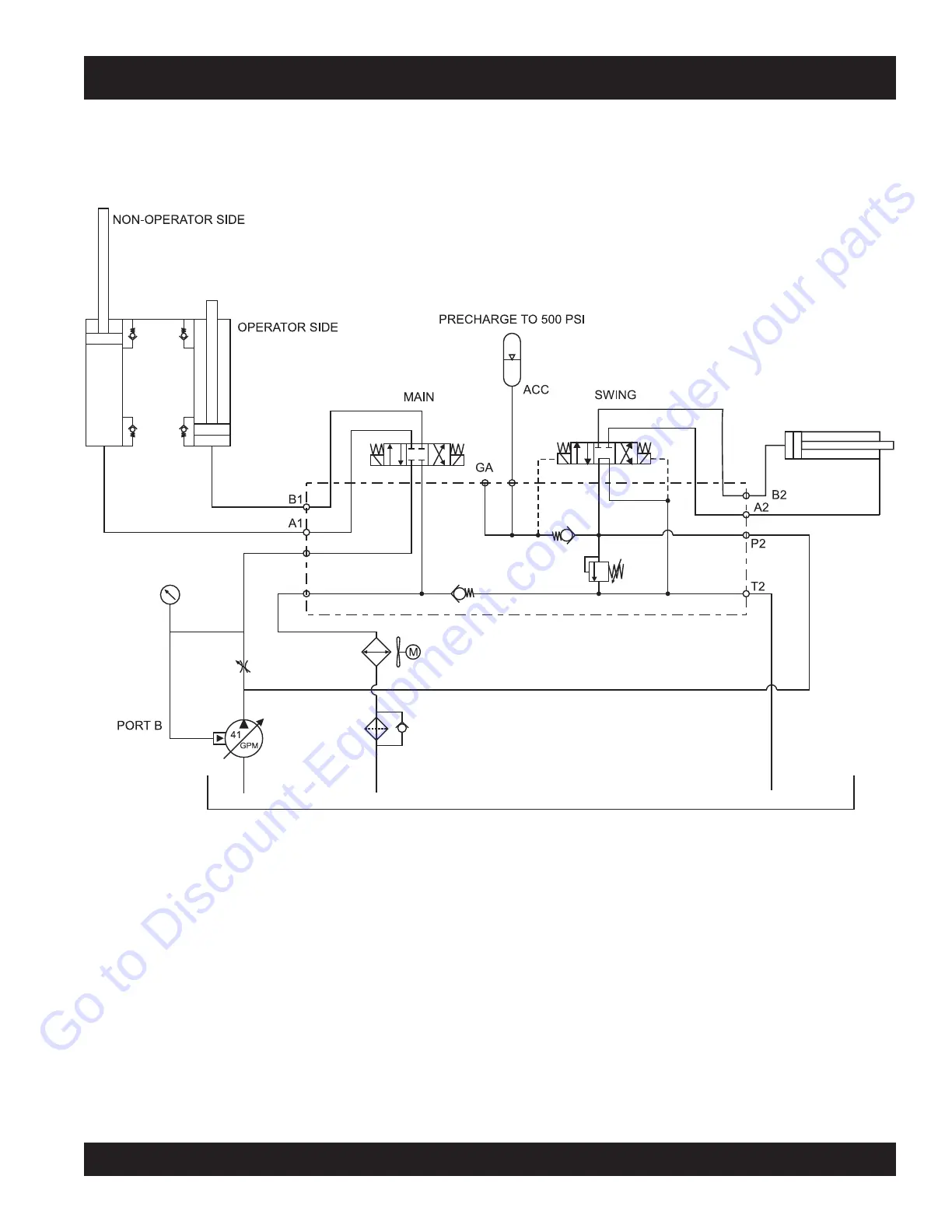

Figure 66. Hydraulic System Diagram
