PAGE 82 — MAYCO LS300 CONCRETE PUMP • OPERATION AND PARTS MANUAL — REV. #4 (06/21/10)
APPENDIX — RECOMMENDED SHOTCRETE ACCESSORIES
RECOMMENDED SHOTCRETE ACCESSORIES
Use a 1-3/8" rubber nozzle tip for a wide spray pattern. Use a 1-1/4" rubber nozzle tip for a narrow spray
pattern. DO NOT INSTALL THE NOZZLE AT THE END OF THE HOSE UNTIL THE FIRST MATERIAL
HAS PASSED THROUGH THE ENTIRE HOSE LENGTH.
Disassemble and clean the nozzle assembly thoroughly after each job. Grease all threads before reassembly.
DO NOT close the air valve when pumping is stopped as a continued air flow keeps the air passages clean.

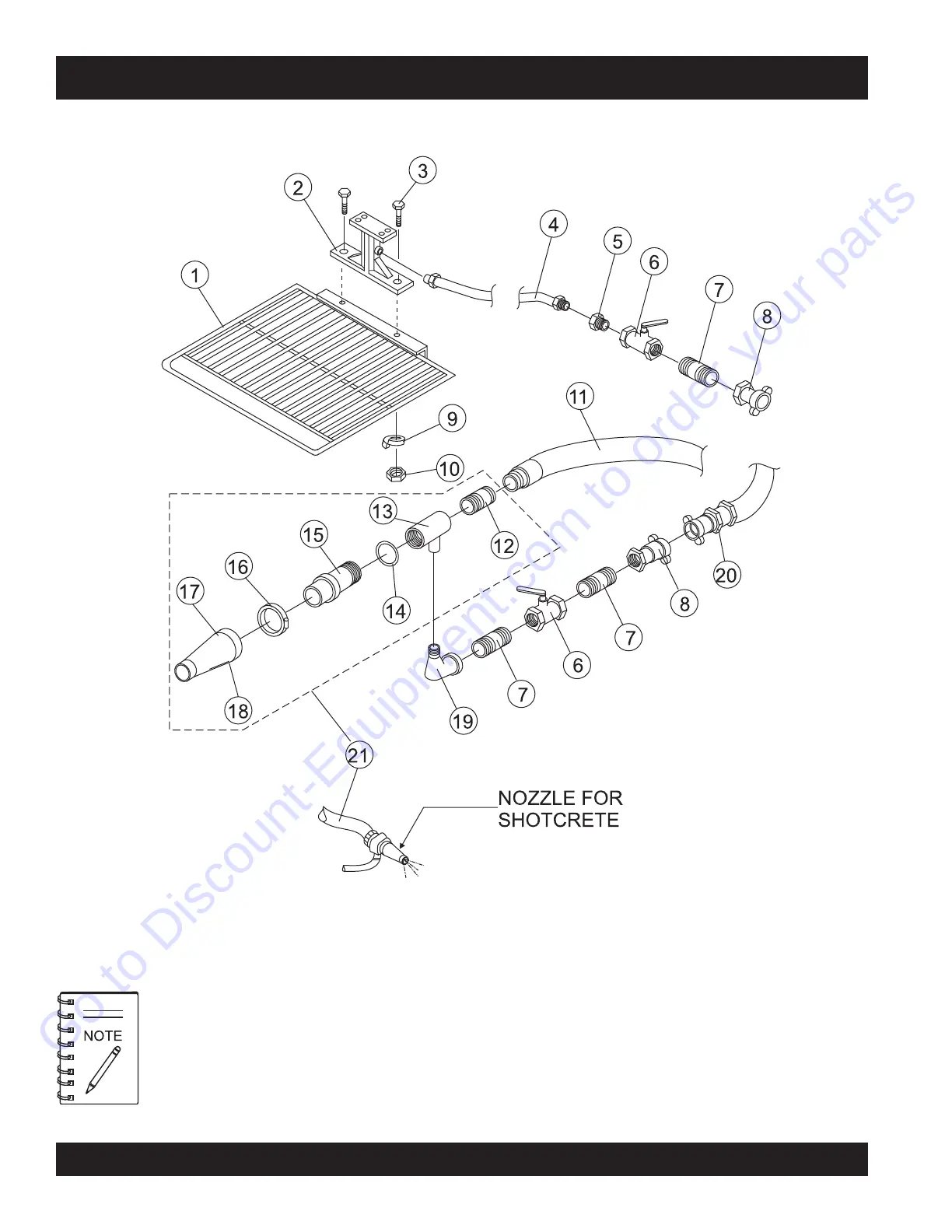

Figure 70. Shotcrete System Accessories
