MULTIQUIP MAYCO LS400 - Hydraulic System Diagram; Hydraulic Circuit Overview

MAYCO LS400/LS500 PUMP — OPERATION AND PARTS MANUAL — REV. #6 (09/19/11) — PAGE 75
ACC
B1
A1
T1
P1
T2
B2
A2
P2
7CC 14CC
TP
ABB
A
P T
MANIFOLD
IN
OUT
RELIEF
LS
STA-1
STA-2
T3
ACCUMULATOR
GAUGE
MAIN
PRESSURE
GAUGE
1750 PSI
1000 PSI
4400 PSI
RELIEF
1000 PSI
P
P
T
T
T
OPTIONAL AGITATOR AND
HYDRAULIC OUTRIGGERS
LS400/LS500 PUMP — HYDRAULIC SYSTEM DIAGRAM

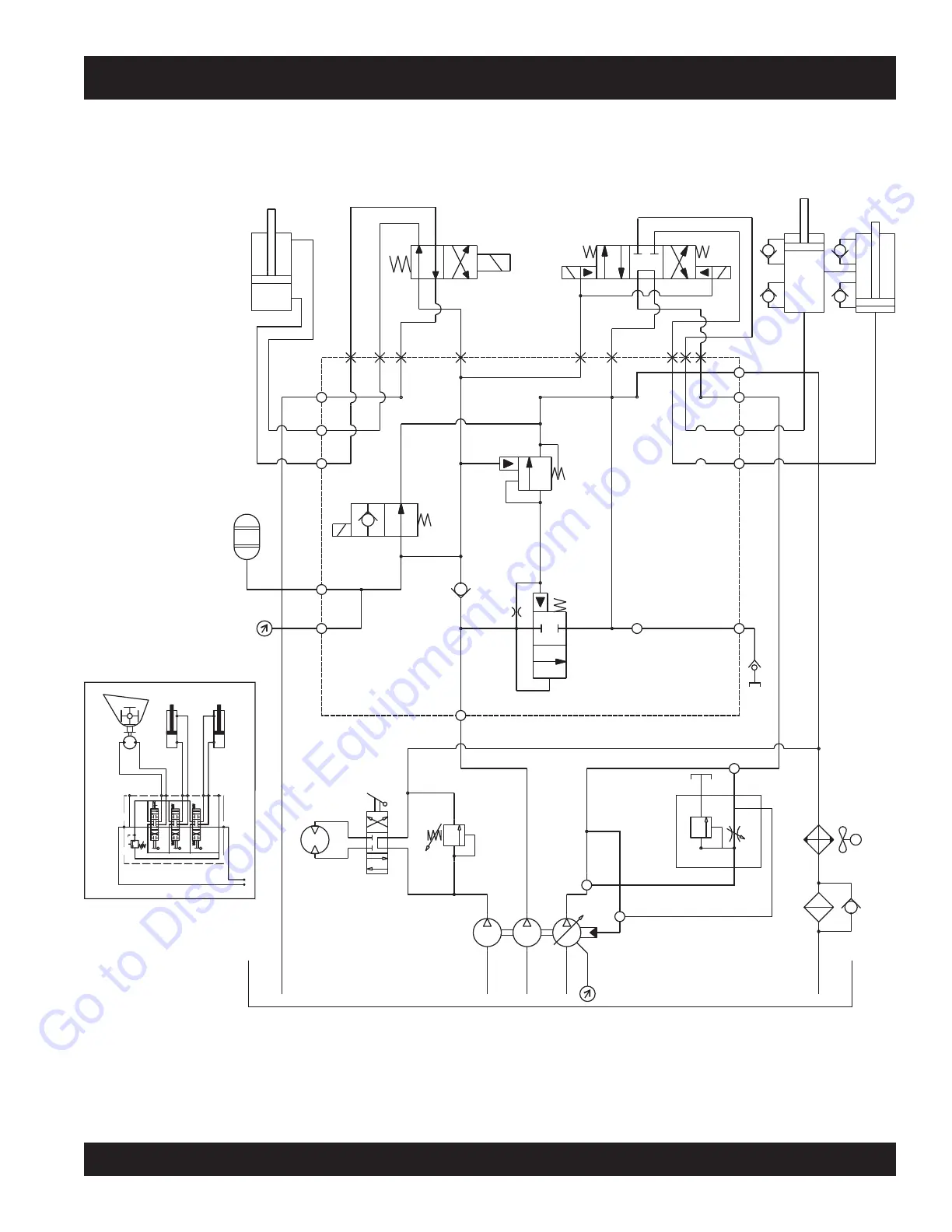

Figure 66. Hydraulic System Diagram
