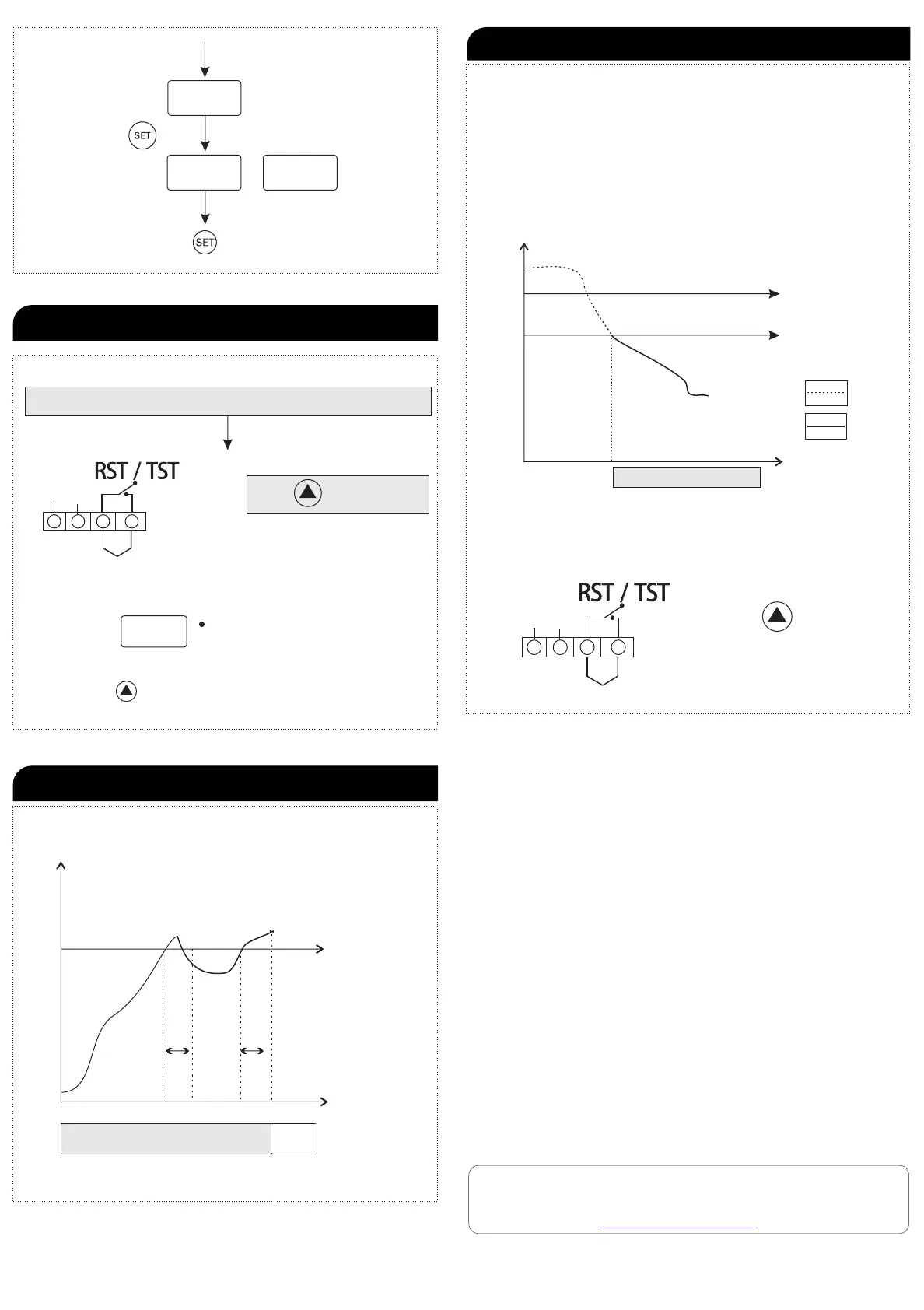

To Enter In Test Mode
NO C
→
Short RST/TST
pin for 5 second
OR Press Key for 5 sec
- Display Shows
T S T
Relay on
R
- To exit from test mode, short RST/TST Pin for 1 second
OR Press key for 1 sec.
Earth Leakage Current
Tripping Setting
Set Point
Time
TRIP
RLY-ON
Delay
Time
Delay
Time
Healthy Condition relay mode = ON
RLY-ON
RLY-OFF
HYST
2.00
1.99
Time
RLY-ON
Earth Leakage Current
Tripping Setting
Set Point
To Reset the Relay Contact after tripping two modes are
given.
NOTE: When Leakage Current < Setpoint
1) Auto Reset
Healthy Condition relay mode = ON
Trip Set Point = 2.00 Amp
Hysteresis = 0.1 Amp
NO C
→
Short RST/TST
pin for 2 second
OR Press Key for 2 Second
2) Manual Reset
Amp
Password enable/ disable
P A S
/
Enable /
Disable
E N B
D I S
Press key for 3 sec to
save parameter & exit.
Press key
Specifications are subject to change, since development is a continuous process,
So for more updated operating information and Support,
Please contact our Helpline: 9978991474/76/82 or
Email at Ver:191201service@multispanindia.com
Page -2
TEST MODE
TRIP FUNCTION
RESET FUNCTION
