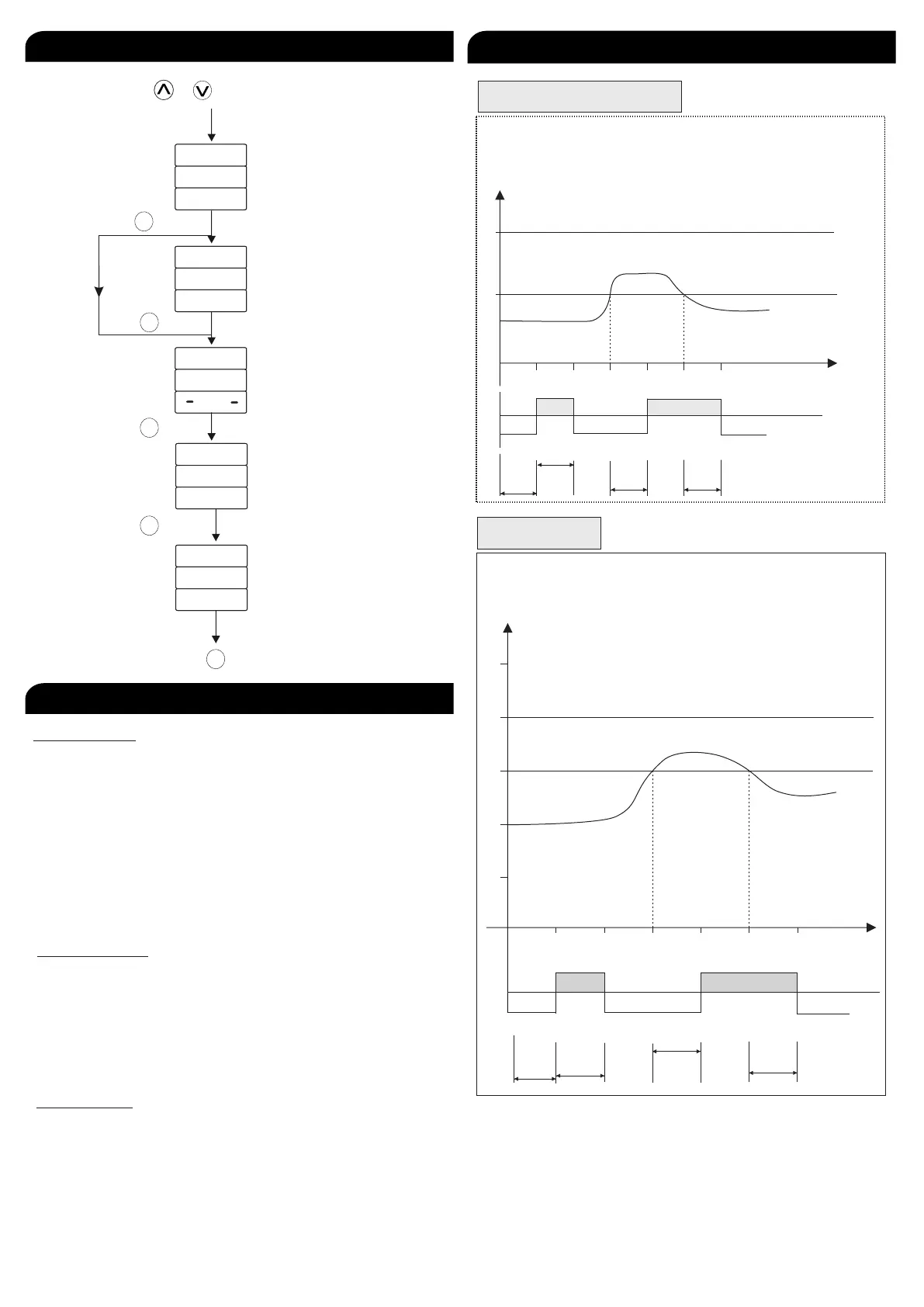

MULTISPAN MPD-152 User Manual

Reset
Initial
Reset
Trigger
Time
Manual /Auto/ZVR (Zero Value Reset )
If Reset
Mode
is Manual
If Reset Mode is Auto / ZVR
( Current ( I ) / Voltage (V) )
( 0-99 Sec )
Press & Key Together
P A S
2 9
R S T
m O D
M A N
P A S
2 9
r s t
T I M
5
P A S
2 9
I N T
t I g
I
Reset Mode:
1) If Reset Mode Selected is Manual, then the Fault
will Reset Manually by pressing the Reset key on
the instrument.
2) If Reset Mode Selected is Auto, then the Relay will
be reset after Selected Reset time once the healthy
condition achieved.
3) If Reset Mode Selected As ZVR (Zero Value Reset),then
the Relay will be reset after Selected Reset time once
the healthy condition achieved OR Zero Value reached.
Initial Trigger:
1) If Initial trigger mode “I”is selected then Relay will
start working once current is applied.
2) If Initial trigger mode “V“ is selected then Relay will
start working once Voltage is applied.
Relay Fault:
1) If Relay fault selected is “off” than Relay will turn
“off” when fault is achieved, otherwise Relay will
remain turn “on”.
2) If Relay fault selected is “on” then Relay will turn
“on” when fault is achieved, otherwise Relay will
remain turn “off”.
Power On:- 5 Sec
Initial Time Delay:- 5 Sec
SPP:- Enable
SPP Time:- 5 Sec
Fault Reset mode:- Auto
Reset Time:- 5 Sec
Reset Fault:- OFF
5 10 15 20 25 30
100
250
B Phase
Time
Time
R.Y.Phase
OFF
ON
OFF
ON
OFF
Power
ON
Single
Phase
Delay
Reset
Single
Phase
Delay
5 10 15 20 25 30
360
370
380
390
400
B Phase
R,Y Phase
OFF
ON
OFF
ON
OFF
Power
ON
Under
Voltage
Delay
Reset
Under
Voltage
Delay
Power On:- 5 Sec
Initial Time Delay:- 5 Sec
Under Voltage:- Enable
Under Voltage time:- 5 Sec
Relay Fault:- OFF
Reset Mode:- Auto
Reset Time:- 5 Sec
Under Voltage:- 380V
NOTES
Under Voltage
Single Phase Prevention (SPP)
CONTROL FUNCTION
Relay
Power Fault Memory
On/Off
Yes/No
P A S
P A S
2 9
2 9
R L Y
P F M
F L T
O N
Y E S
Fault
PARAMETER SETTING
(For Voltage)
Mode
0
0
Press Key to Save & exit
SET
Press Key
Press Key
Press Key
Press Key
SET
SET
SET
SET
Page - 7
