MULTISPAN SVR-22 - Terminal Connections and Control Functions; Terminal Layout and Specifications; Delay Times and LED Indications; Control Function Waveforms

Terminal Connection:
VLN
T
ON
P
15
18
16
T
T
ON ON
6 V
Hysteresis
Over Voltage
Under Voltage
Hysteresis
Hysteresis
T
= Trip Delay (5 sec)
L
16
15
18
N
Output :
1 Relay 1C/O ,
5A, 230V AC (Res.)
Input Voltage:
160 to 300V AC (L-N)
1Ø - 2W, 50/60Hz
Function :
Hysteresis : 6V Fix
Auto reset
Self Powered
NO
C
NC
18 15 16
Power Supply :
Delay Time :
Trip Delay: 5 Sec.
Power ON Delay: 5 Sec.
LED Indication:
OV - Over Voltage
UV - Under Voltage
OV & UV LED OFF - Healthy

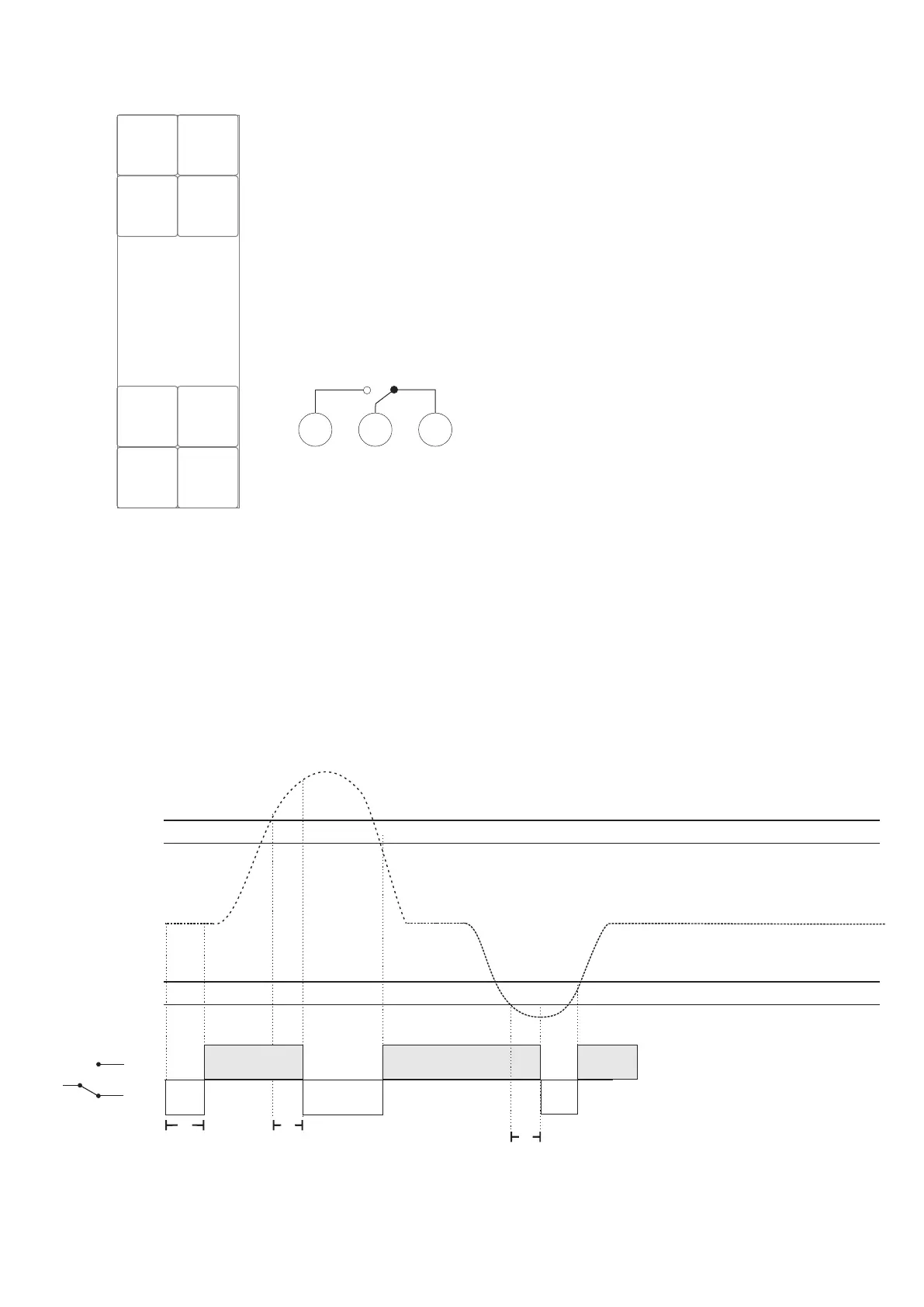

Control Function:
Terminal Connection:
L1-L2
L2-L3
L3-L1
T
ON ON
P
15
18
16
T
T
Phase
Loss
ON ON
ON
= Power ON Delay (5 sec)
TPON
