Multistack MS030XC - Page 16

16
Total Access Modules With or Without Variable Flow
Module Dimensions (No Panels)
Width (A) Depth (B) Height (C)
Standard 28” 47 ⁄” 64”
Total Access (MS010--050) 32” 56” 67”
Total Access (MS070) 34” 56” 67”
Extended Headers 28” 62 ⁄” 64” Extended Headers 28” 76 ⁄” 64”

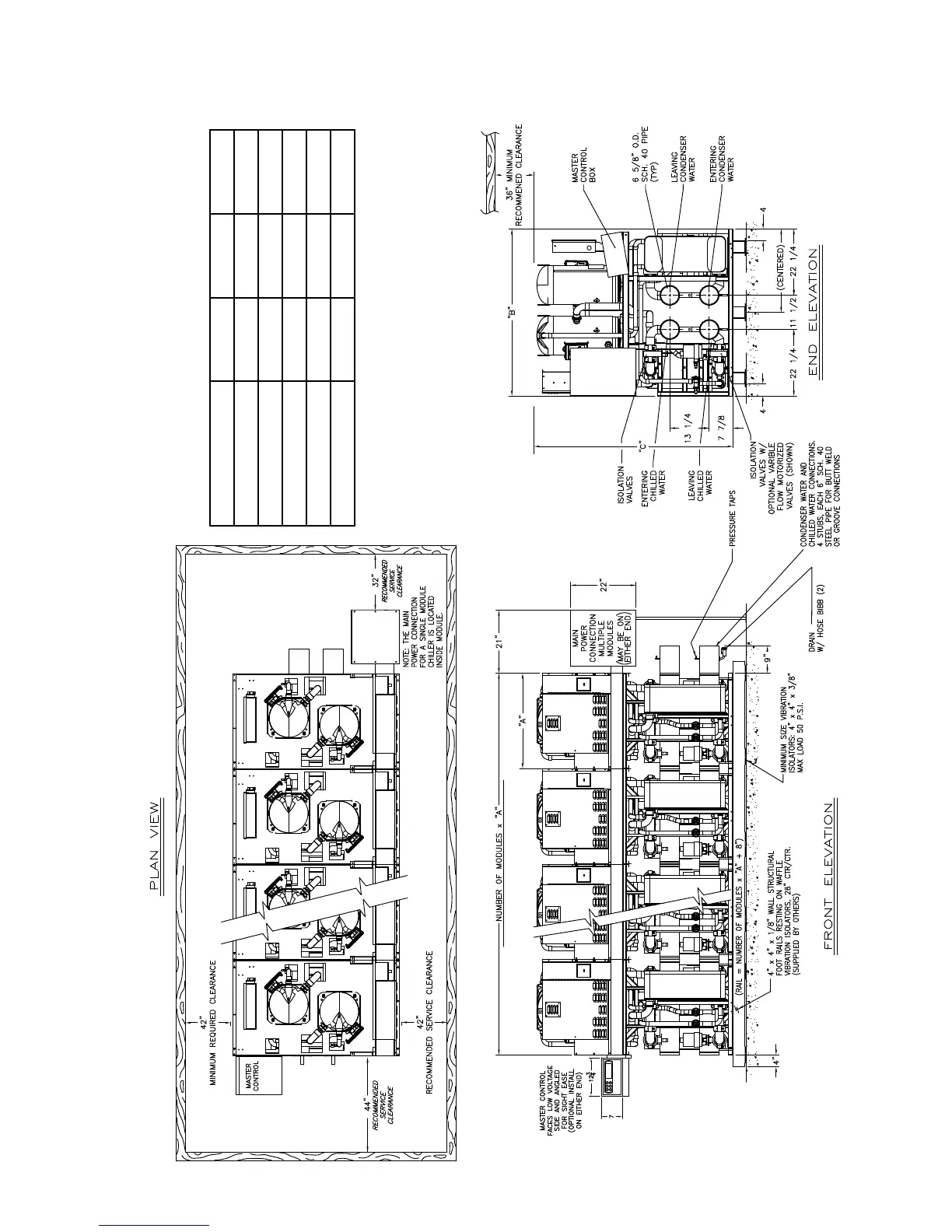

*Standardized drawing of sample customer installation ** Enclosure panels are optional
C
B
A
