15
Variable Flow Design for Chilled Water, Constant Flow for Condenser Water
Standard Modules with Extended Headers on Evaporators
Module Dimensions (No Panels)
Width (A) Depth (B) Height (C)
Standard 28” 47 ⁄” 64”
Total Access (MS010--050) 32” 56” 67”
Total Access (MS070) 34” 56” 67”
Extended Headers 28” 62 ⁄” 64”
Extended Headers 28” 76 ⁄” 64”
B

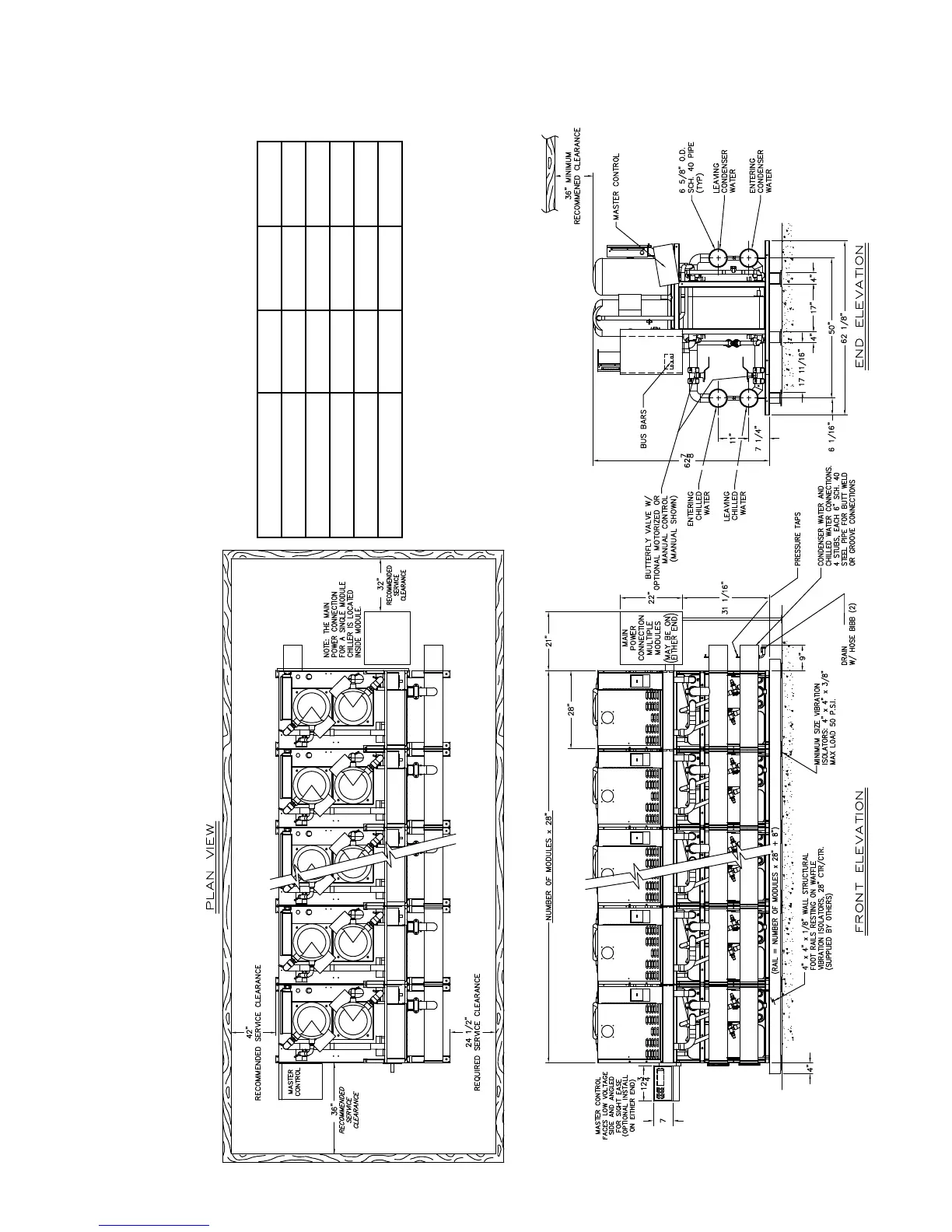

*Standardized drawing of sample customer installation
** Enclosure panels are optional
C
A
B
