Chapter 2 – Installation
Multi-Tech Systems, Inc. Serial-to-Ethernet Device Server User Guide (S000344E) 10
Installation

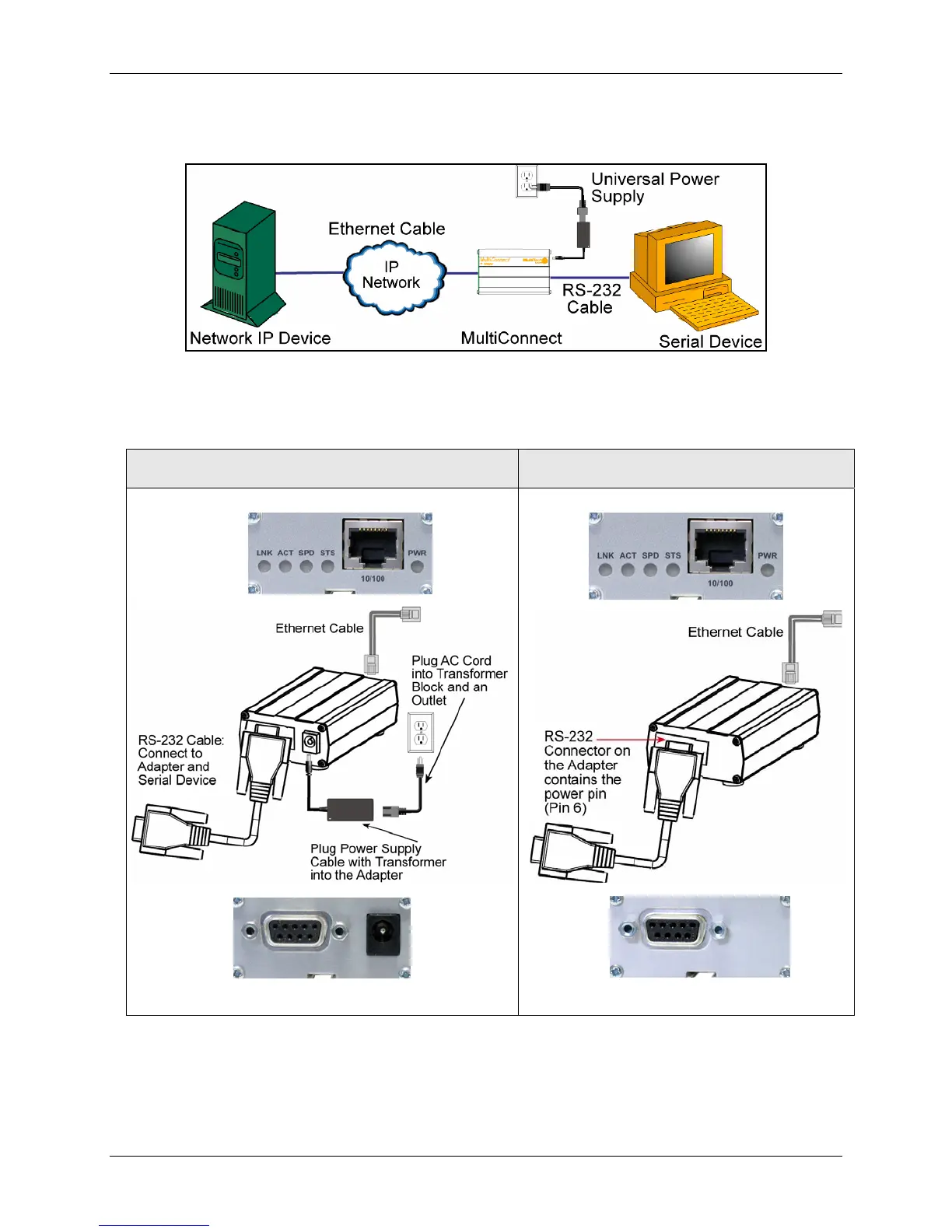

This is an example of a typical setup.
Serial-to-Ethernet Power Connections
The MultiConnects are powered in one of two ways:
Powered by External Power Supply
MTS2EA
Powered through RS-232 Cable (Pin 6)
MTS2EA-R
Ethernet Connector
RS-232 & External Power Connectors
Ethernet Connector
RS-232 Power Pin Connector
