Attaching the MultiConnect to a Fixed
Location
The MultiConnect is design to be used on the desktop or to be panel-mounted. To attach the bracket for panel-
mounting, following these steps:

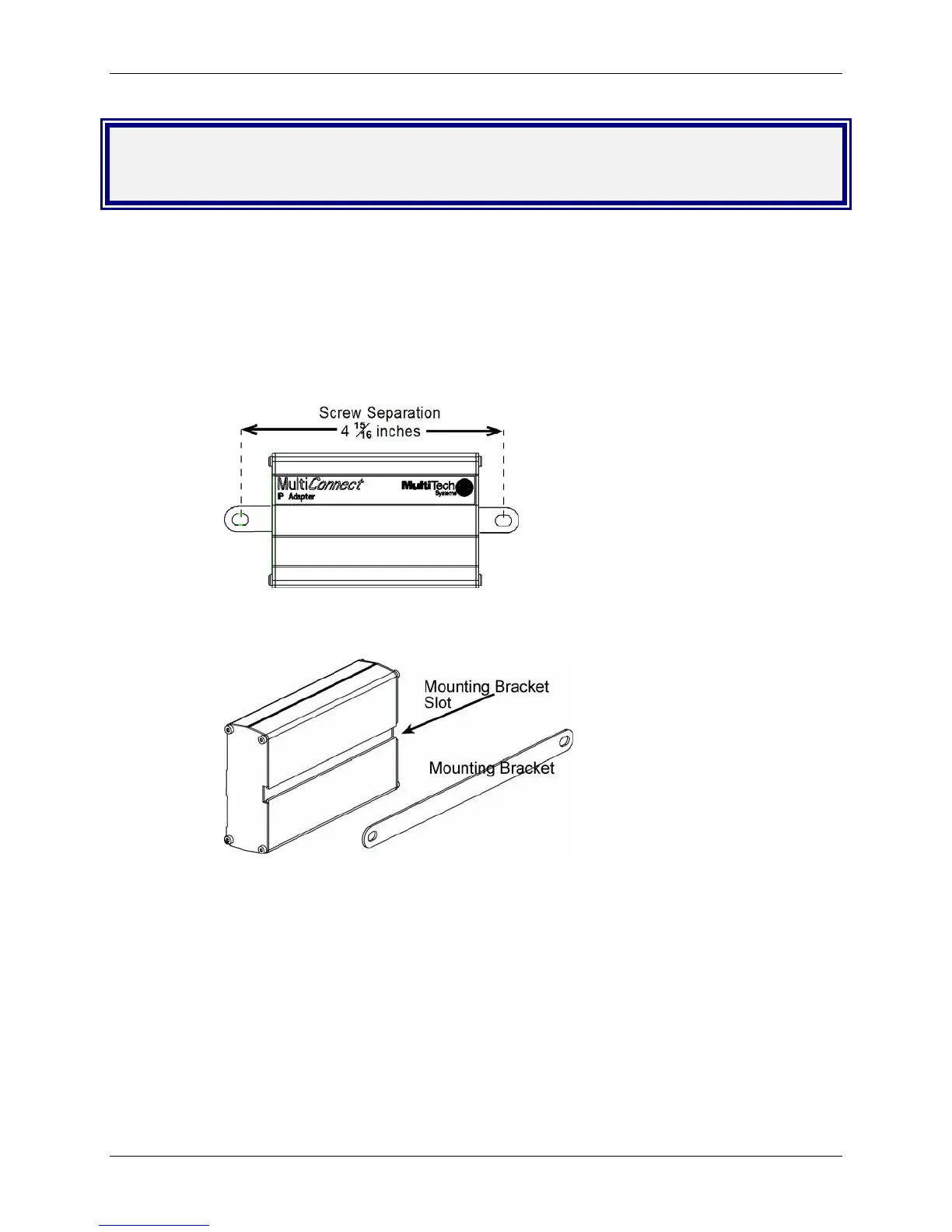

1. Typically, the MultiConnect is mounted against a flat surface with two mounting screws. Drill the mounting holes
at the desired location. The mounting holes must separated by 4 - 15/16 inches center-to-center.
2. To attach the brackets to the MultiConnect, slide the mounting brackets into the corresponding slots on the back
of the MultiConnect chassis.
3. Attach the device to the surface with two screws.
