Munters EM50 - Page 18

© Munters AB, 2018
18

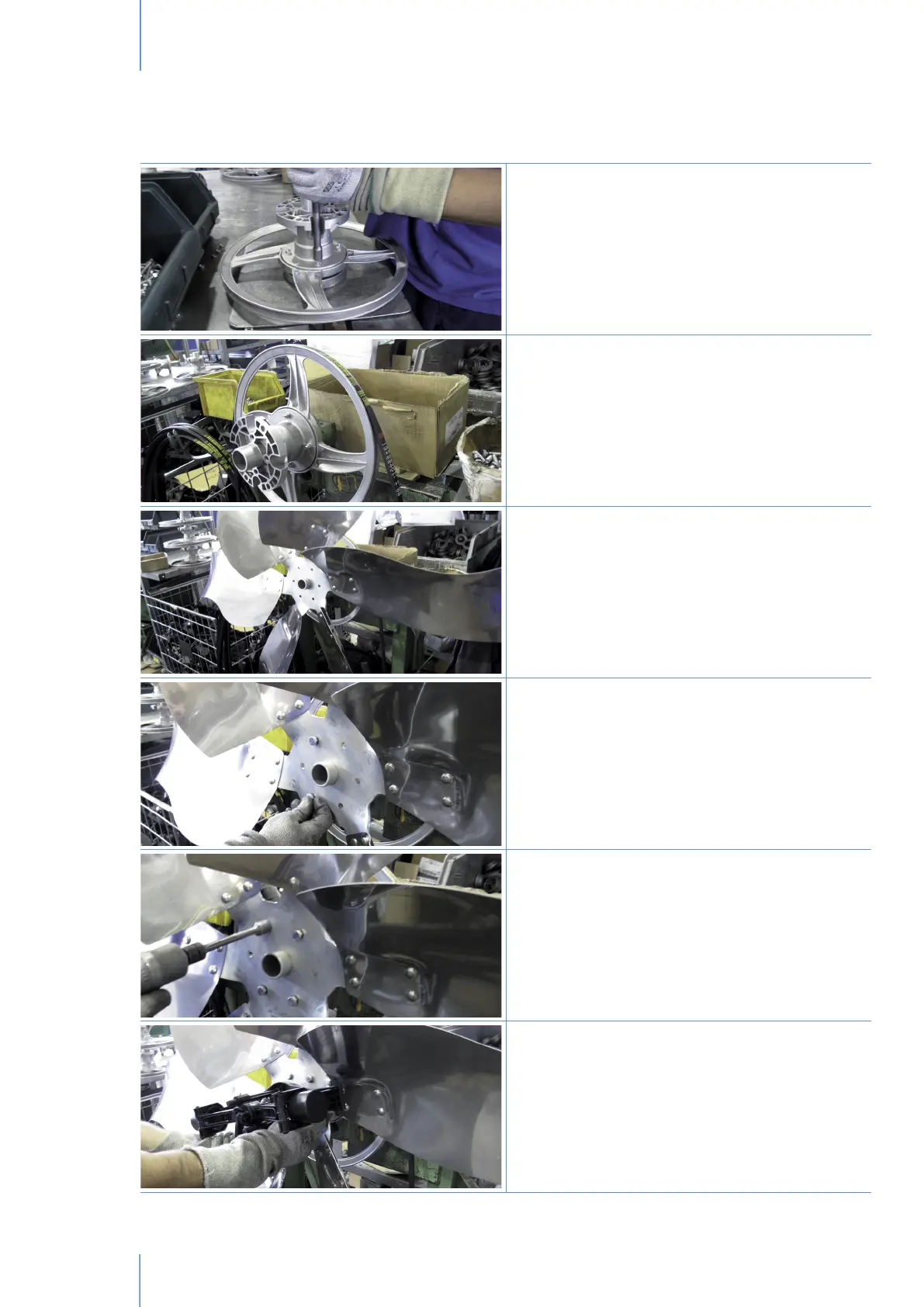

Tighten the nuts by using pneumatic screwdriver (ref.3/
Assembling tools).
Place the waterproof distance piece (ref.7.8/
Bolts&nuts) on the axle and then place the axle on a
support. Place the V-belt (ref.3.1/Belts) on the central
pulley.
Place the propeller (ref.5.1/Propeller) on the central
pulley assembly.
Fix the screws, washers and nuts (ref.7.6/Bolts&nuts)
in order to fix the propeller.
Tighten the nuts by using pneumatic screwdriver (ref.3/
Assembling tools).
Place bolts (ref.7.7/Bolts&nuts) on the centrifugal
system (ref.6.1/Centrifugal system) and then place it
on the propeller.
Assembling guidelinesChapter3
