Munters JAZ 42 - Page 5

2
List of contents
# Description Qty
1 Handle 1
2 End cap 2
3 Upper shell 1
4 Screw M5×8 6
5 Screw M5×30 4
6
Washer D.5
4
7 Nut M5 4
8 Axle 1
9 Washer 2
10 Spacer 4
11 Wheel 2
12 Cap nut 2
13 Knurled nut 1
14 Support bracket 1
Before adding fuel, installation and use,
assemble the loose parts as follows (see Fig. 1):
Fix end caps (2) to handle (1). Remove upper
cover (3) unscrewing six fixing screws (4).
Assemble handle to upper shell using four
screws (5), washers (6) and nuts (7).
Reassemble upper shell with the six screws (4).
Slide axle (8) through the two tubes on the tank
bottom. Slide spacer (10), washer (9), and
spacer (10) on each axle side. Insert wheels
(11), and cap nut (12). Tap gently on cap nuts to
secure them. Attach support bracket (14)
screwing the knurled nut (13) to the tank drain
cap. Finger tighten firmly.
JAZ 125
List of contents
# Description Qty
1 Axle 1
2 Axle bracket 2
3 Spacer 2
4 Wheel D.200 2
5 Cap nut 2
6
Screw M5x16*
4
7 Washer D.5 12
8 Nut M5 12
9
End cap
2
10 Rear handle 1
11 Front handle 1
12 Screw M5x30 8
* not used on JAZ 125
Before adding fuel, installation and use,
assemble the loose parts as follows (see Fig. 2):
Slide axle (1) through axle brackets (2).
Assemble in order: spacers (3), wheels (4), cap
nuts (5) on each end. Secure cap nuts (5) by
tapping lightly with a hammer. Connect axle
assembly to tank and front handle (11) using four
screws M5x30 (12), washers (7) and nuts (8)
lining up the holes.
Insert end caps (9) on rear and front handle (10)
(11). Connect rear handle (10) to heater tank
using four screws M5x30 (12), washers (7) and
nuts (8) as shown.

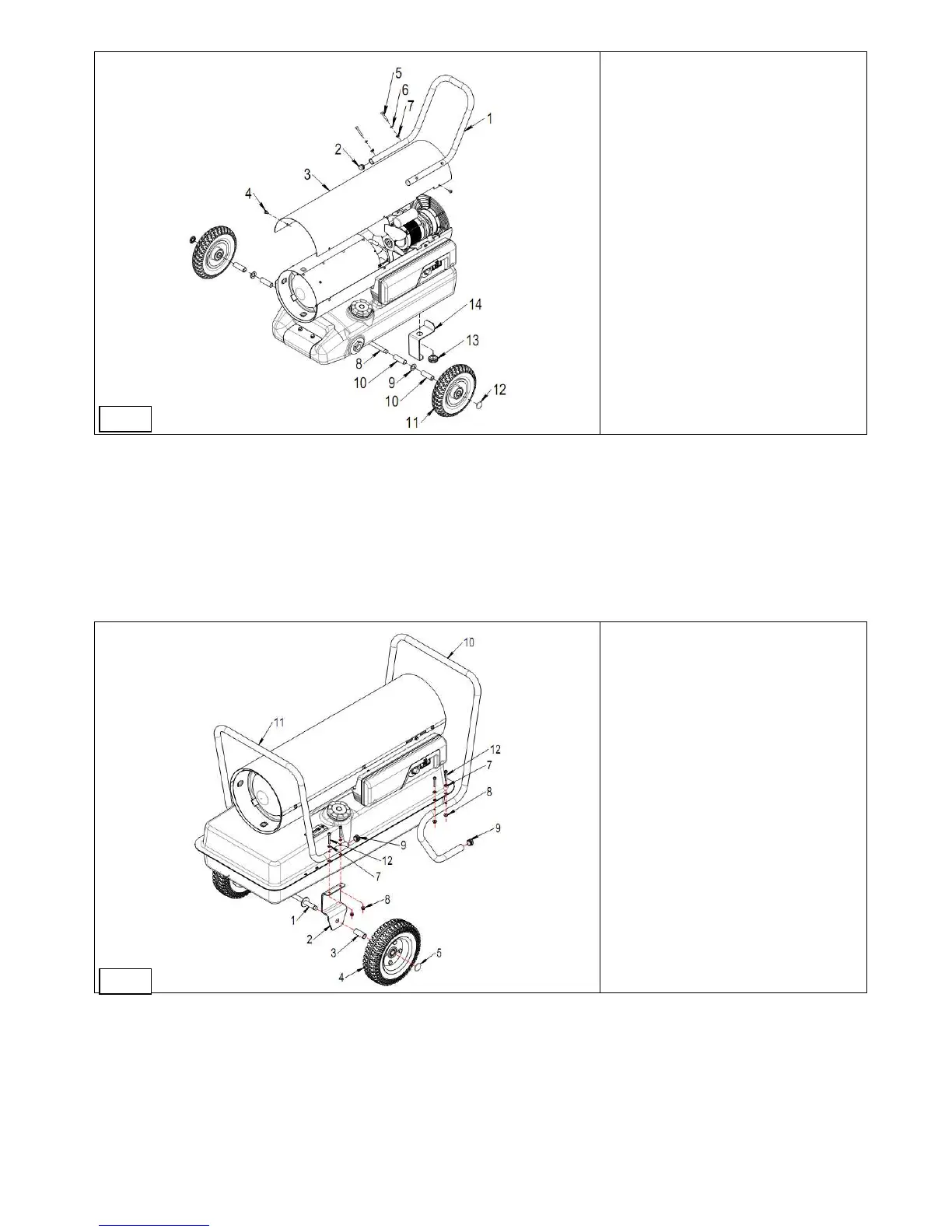

Fig. 1
Fig. 2
