Murphy VS2 User Manual

VS-7037N page 2 of 8

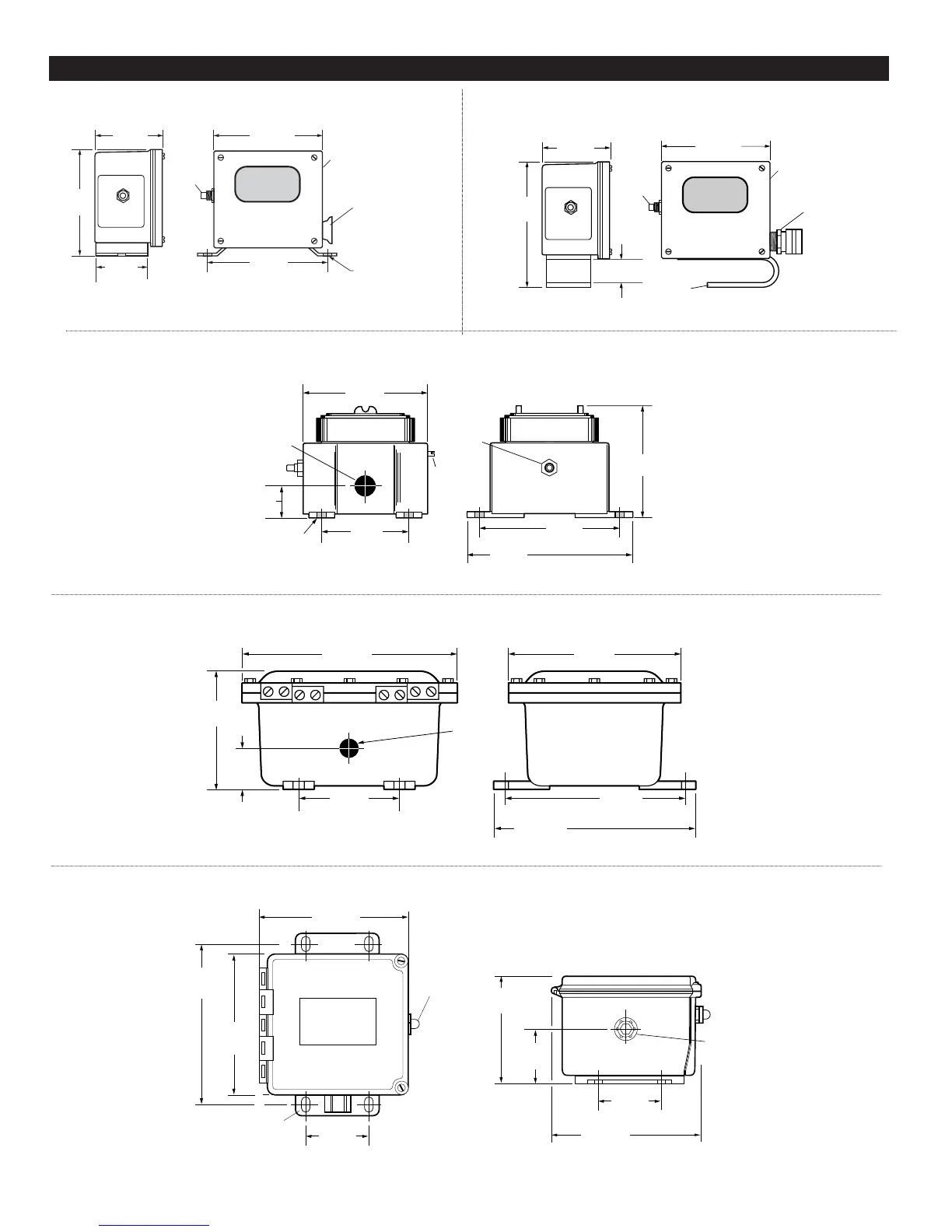

DIMENSIONS
3 in.
(76 mm)
4-3/4 in.
(121 mm)
2-1/4 in.
(57 mm)
5-1/8 in.
(130 mm)
Mounting Holes
Slotted
Sensitivity
Adjustment
Reset
Push
Button
4-19/32 in.
(116 mm)
Plug
1/4 x 1/2 in.
(6 mm x 13 mm)
Slot 2 places
3 in.
(76 mm)

4-3/4 in.
(121 mm)

Slotted
Sensitivity
Adjustment
5-7/16 in.
(138 mm)

Reset
Push
Button
Weatherproof
Strain Relief
Bushing
C-Clamp
27/32 in.
(21 mm)

1/2 NPT 
Conduit
5-5/8 in.
(143 mm)
3 in.
(76 mm)
Mounting Holes
Reset
Push
Button
Slotted
Sensitivity
Adjustment
5-1/4 in.
(133 mm)
Mounting Holes
4-7/8 in.
(124 mm)
6-3/8 in.
(162 mm)
3/8 in.
(10 mm)
4 places
1-3/4 in.
(44 mm)
10-5/8 in.
(270 mm)

6 in.
(152 mm)

4-1/2 in.
(114 mm)
Mounting Centers
1/2 NPT
Conduit
9-1/8 in.
(232 mm)
Mounting Centers

10-3/16 in.
(259 mm)

8-5/8 in.
(219 mm)

2-1/2 in.
(64 mm)

VS2
VS2C
VS2EX and VS2EXR
VS2EXRB
7-9/64 in.
(181 mm)

4 in.
(102 mm)

6-1/2 in.
(165 mm)

6-29/32 in.
(176 mm)

Manual
Reset
Push-button
Mounting slot
5/16 x 9/16 in.
(8 x 14 mm)
4-places.
6-1/2 in.
(165 mm)

4-5/8 in.
(118 mm)

1-5/8 in.
(41 mm)

4 in.
(102 mm)

3/4 NPT
conduit fitting

VS94
