OPERATION
12
F–030767L
ÇÇÇ
ÇÇÇ
ÇÇÇ
ÇÇÇ
ÉÉÉ
ÉÉÉ
ÉÉÉ
ÉÉÉ

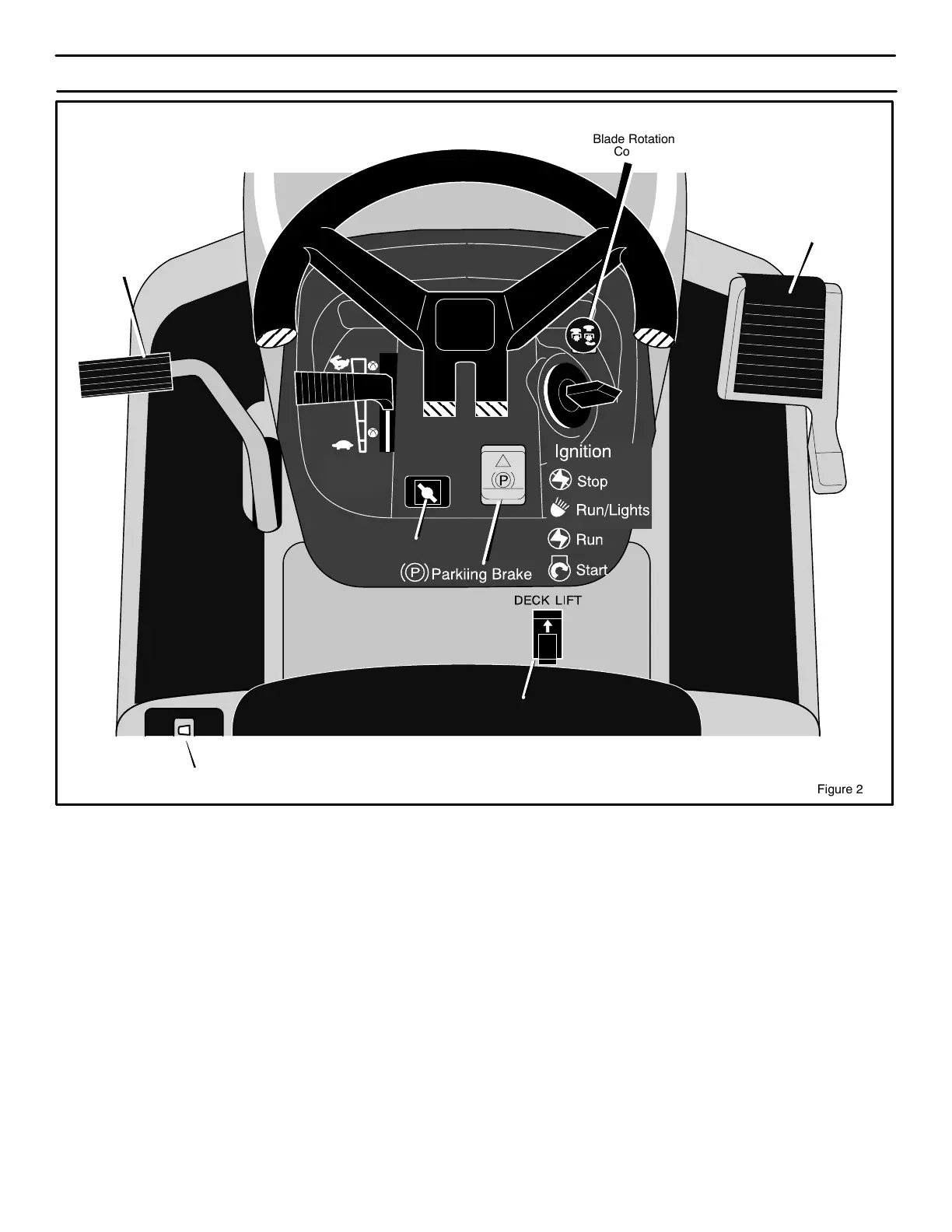

Figure 2
Blade Rotation
Control
Brake Pedal
Height-Of-Cut
Indicator
Speed Control
Pedal
Choke
Throttle
Control
Deck Lift Switch
LOCATION OF CONTROLS
BLADE ROTATION CONTROL: Use the blade rotation
control to start and stop the rotation of the blades.
BRAKE PEDAL: Use the brake pedal to quickly stop.
HEADLIGHT SWITCH: The headlight switch is the first part
of the ignition switch. To use the lights with the engine running, turn
the key to the position for the lights.
IGNITION SWITCH: Use the ignition switch to start and stop
the engine.
AUTOMATIC DRIVE DISCONNECT: Use the auto-
matic drive disconnect, located under the seat, to disengage the
transmission.
DECK LIFT SWITCH: Use the deck lift switch to change the
height of cut. The height of cut is shown by the height-of-cut indica-
tor.
PARKING BRAKE LEVER: Use the parking brake lever
to engage the brake when you leave the unit.
SPEED CONTROL PEDAL: Use the speed control pedal
to change the speed and the direction of the unit.
THROTTLE CONTROL LEVER: Use the throttle control
lever to increase or decrease the speed of the engine.
