MAINTENANCE
21
F–030767L
HOW TO CHECK AND ADJUST THE MOTION DRIVE BELT
If the motion drive belt is loose, the belt will slip when; (1) going up
a hill, (2) pulling a heavy load, or (3) the unit will not move forward.
Adjust the belt as follows.
WARNING: Before you make an inspection, adjust-
ment, or repair to the unit, disconnect the wire to the
spark plug. Remove the wire from the spark plug to
prevent the engine from starting by accident.
1. Check the routing of the motion drive belt. Make sure the belt
is installed correctly and is inside all the belt guides.
2. Remove the cotter pin, washer, and brake spring from the
adjustable nut (Figure 12).
3. Disconnect the adjustable nut from the brake lever assembly
and the parking brake latch.
4. Use the cotter pin removed in step 2. Hold the cotter pin at the
back of the slot and move the brake lever assembly rearward
against the cotter pin. This will set a 1/8 inch (3 mm) gap be-
tween the brake lever assembly and the back of the slot
(Figure 12).
5. Turn the adjustable nut until the nut will fit through the hole in
the brake lever.
6. Assemble the adjustable nut to the parking brake latch,
brake lever and brake spring. Fasten with the washer and
cotter pin.
7. If the belt still slips after the belt has been adjusted, then the
motion drive belt is worn or damaged and must be replaced.
See “How To Replace The Motion Drive Belt”.

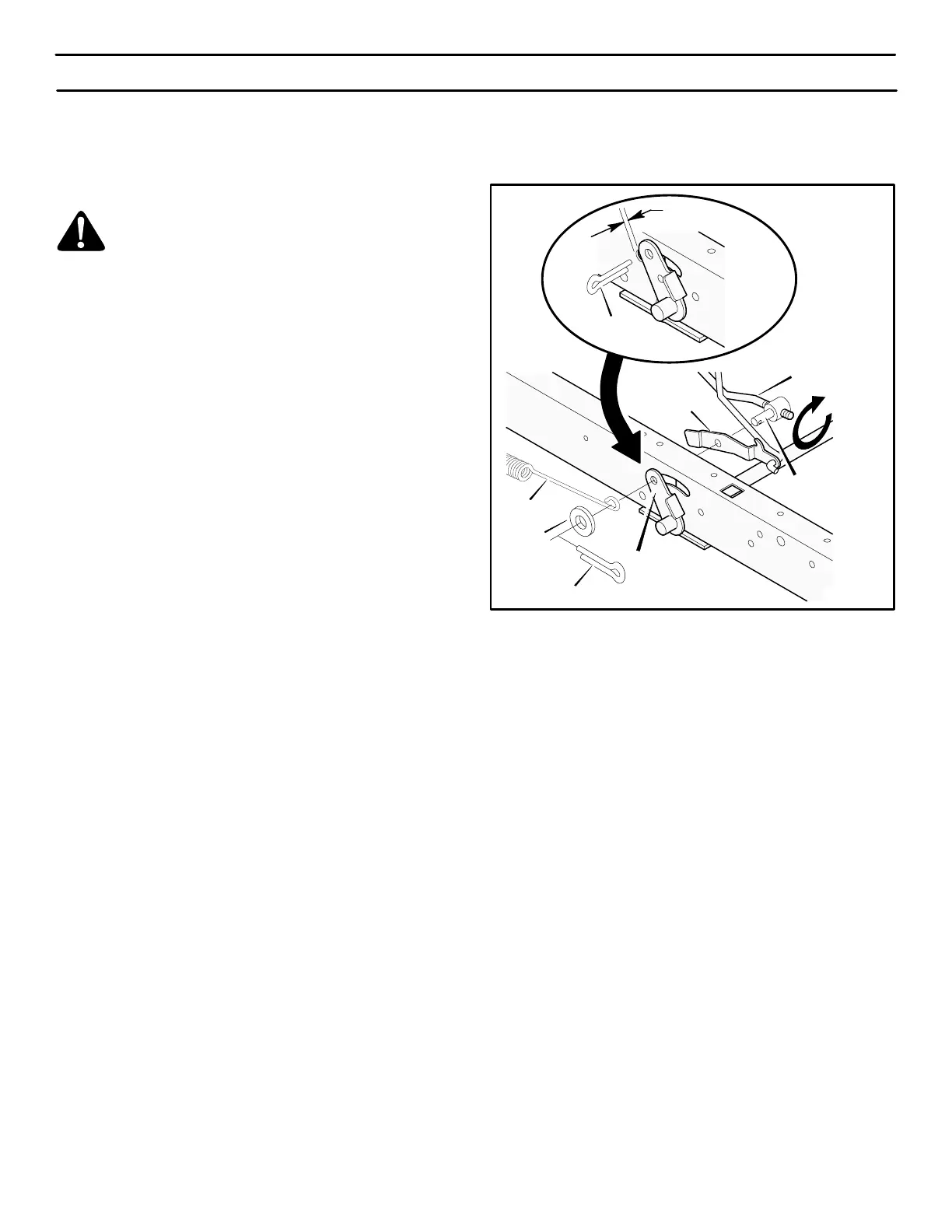

Clutch Rod
Brake Lever
Assembly
Adjustable Nut
Figure 12Cotter Pin
Brake Spring
Washer
Parking Brake
Latch
Cotter Pin
1/8 inch
