REPAIR PARTSMODEL 461603x48A
52
F–030767L

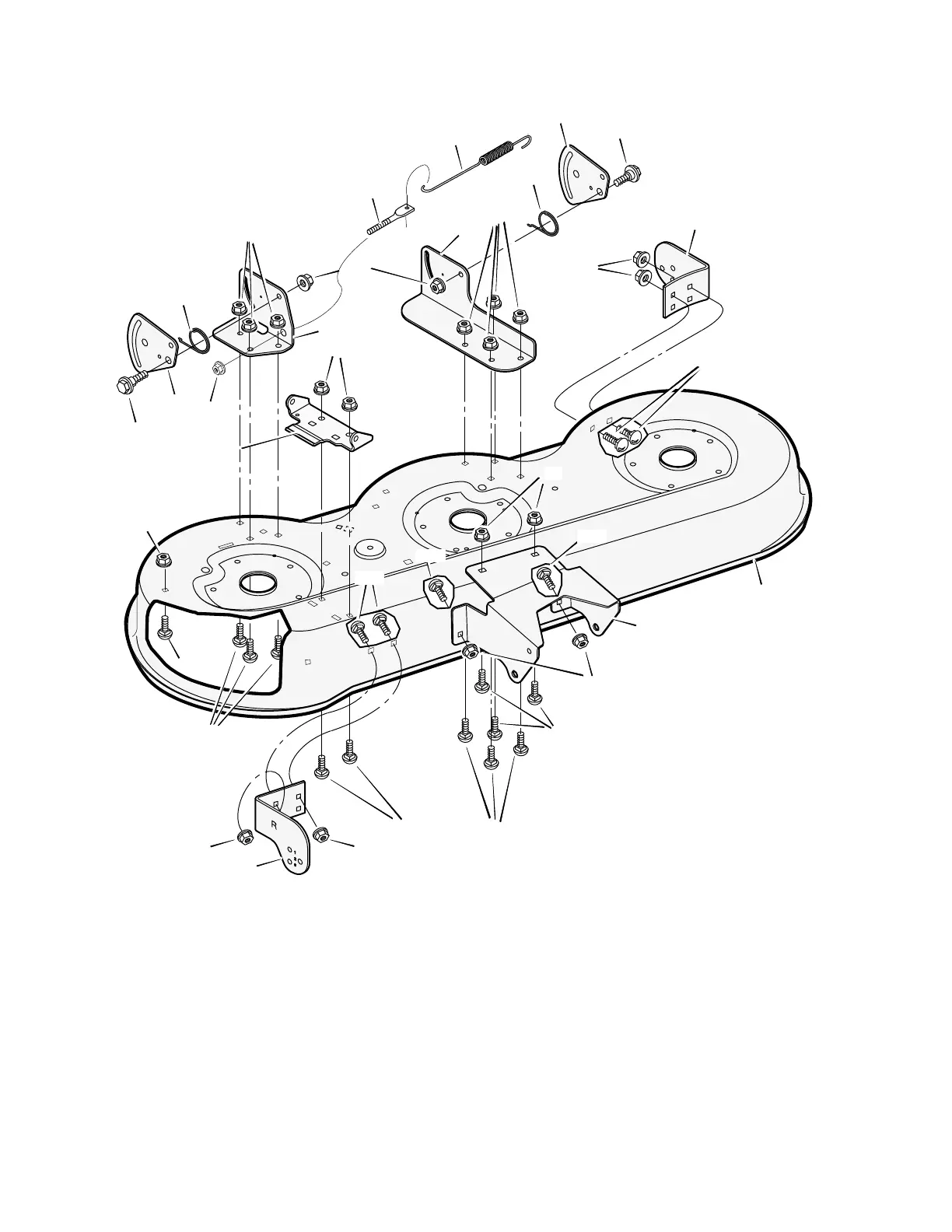

MOWER HOUSING
1
2
3
4
18
6
7
9
10
6
5
2
1
11
9
12
13
14
6
12
12
12
9
15
9
12
17
16
12
12
12
6
6
Key
No. Part No. Description
Key
No. Part No. Description
1 009x51 Bolt, Shoulder
2 690128E700 Plate, Suspension
3 094598E700 Bracket, Right Rear
4 092104E701 Bracket, Hinge
5 166x43 Spring, Left
6 015x79 Nut, Flange
7 015x84 Nut, Flange
9 015x88 Nut, Flange
10 094600E700 Bracket, Left Lifter
11 094919E700 Bracket, Left Gauge Wheel
12 002x53 Bolt, Carriage
13 1001589E701 Housing, Blade
14 094997SE Bracket, Front Deck
15 094918E701 Bracket, Right Gauge Wheel
16 028x64 Retainer
17 002x74 Bolt, Carriage
18 166x42 Spring, Right
23 1001694 Z Rod, Adjuster
24 165x131 Spring, Extension
– – 7761111 Complete Blade Housing
Assembly
