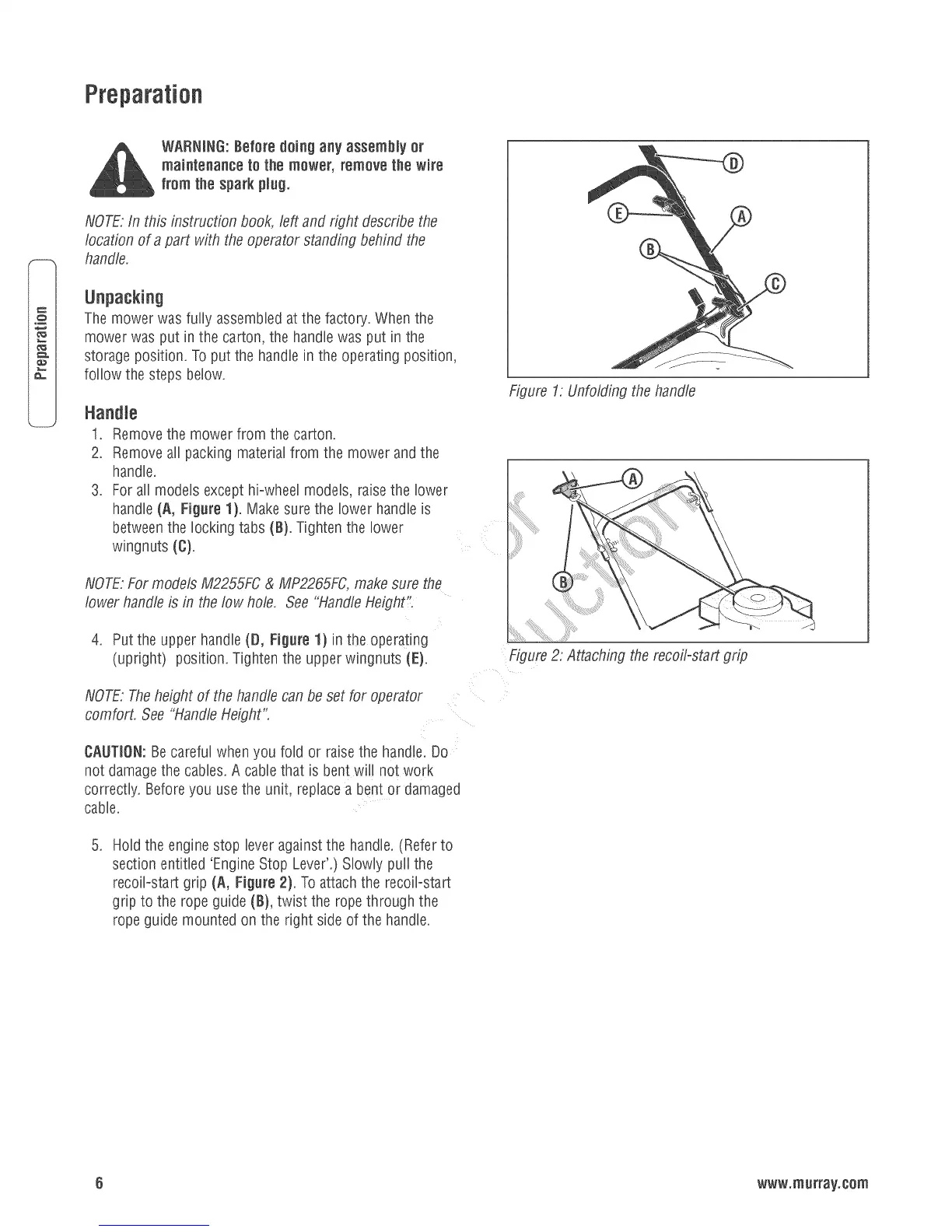

Preparation
Q_
WARNING:Before doing any assembly or
maifltenaflce to the mower, removethe wire
from the sparkplug.
NOTE:In this instruction book, left and right describe the
location of a part with the operator standing behind the
handle,
Unpacking
The mower was fully assembled at the factory, When the
mower was put in the carton, the handlewas put in the
storage position, Toput the handle in the operating position,
follow the steps below.
1. Removethe mower from the carton.
2. Removeall packing material from the mower and the
handle.
3. For all models excepthiowheelmodels, raisethe lower
handle (A, Figure 1). Make sure the lower handleis
betweenthe locking tabs (B). Tighten the lower
wingnuts (C).
NOTE:Formodels M2255FC& MP2265FC.make sure the
lower handle is in the low hole. See "HandleHeight':
4, Put the upper handle(D, Figure 1) in the operating
(upright) position. Tighten the upper wingnuts (E),
NOTE:Theheight of the handlecan be set for operator
comfort. See "HandleHeight".
CAUTION:Becareful whenyou fold or raise the handle Do
not damagethe cables,A cable that is bent will notwork
correctly, Beforeyou usethe unit, replacea bent or damaged
cable,
.
Hold the engine stop lever againstthe handle.(Referto
section entitled 'EngineStop Lever'.) Slowly puffthe
recoilostart grip (A, Figure 2). Toattachthe recoil-start
grip to the rope guide (B), twist the rope through the
rope guide mounted on the right sideof the handle.
Figure 1: Unfolding the handle
Figure2: Attaching the recoil-start grip
