7 Placing the base plates (GPx, GPU A4 resp. A3)
GPx
There are eight pin stops on the plotting area where the grey base
plate is loaded. On this base plate the aluminium base plates GPx snap
into place by catching the position holes with their corresponding pins
on the back. You can load ten base plates in two rows five frames each.
On the GPx base plates the labelling material is loaded.
GPU A4 / GPU A3
The base plate GPU A4 resp. GPU A3 is used for the labelling of sheet
labels with either the plotter or for engraving labelling material with
the engraving option extension.

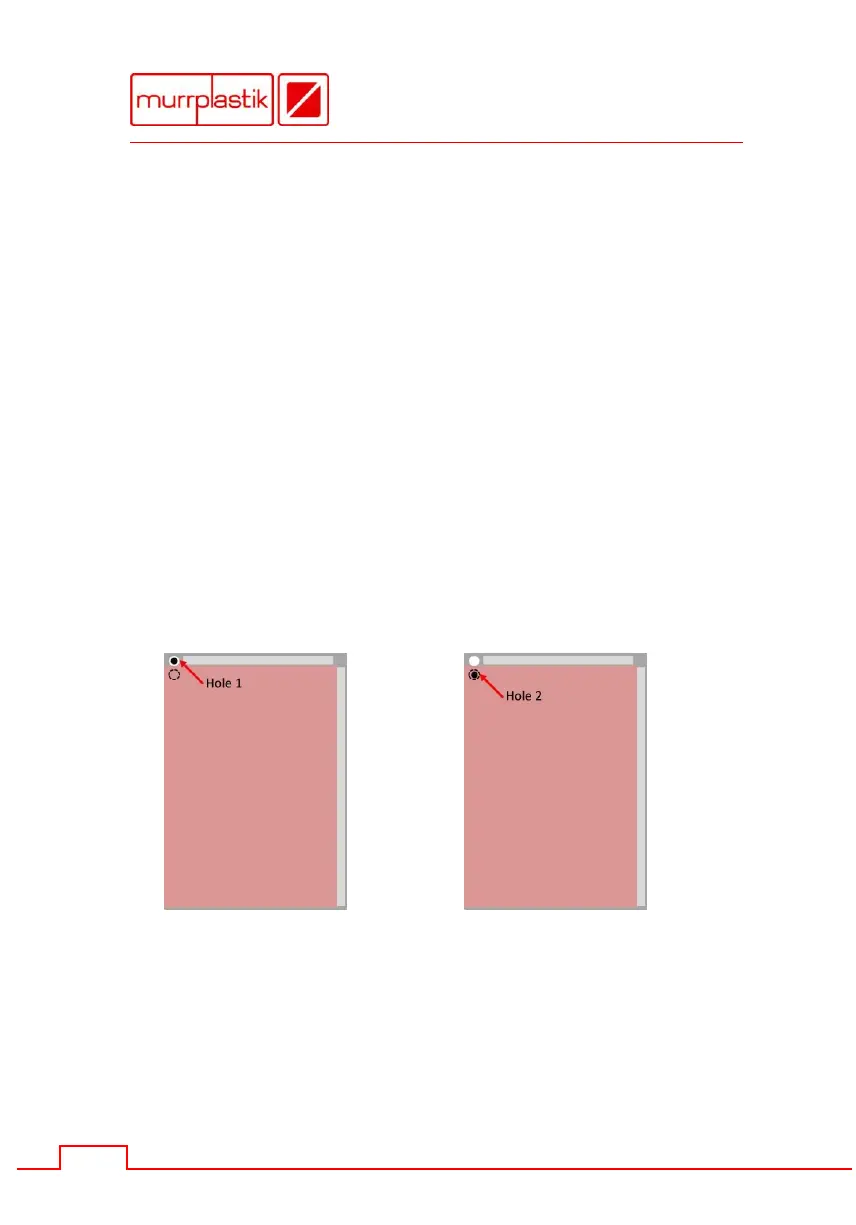

Depending on the labelling technology used (plotting or engraving)
the base plate GPU A4 can be placed in two different positions
(hole 1 or hole 2) resp. must be snapped correspondingly into the top
left holding pin of the plotter.
Hole 1 - Plotting of labels.
Hole 2 - Engraving of labels.
