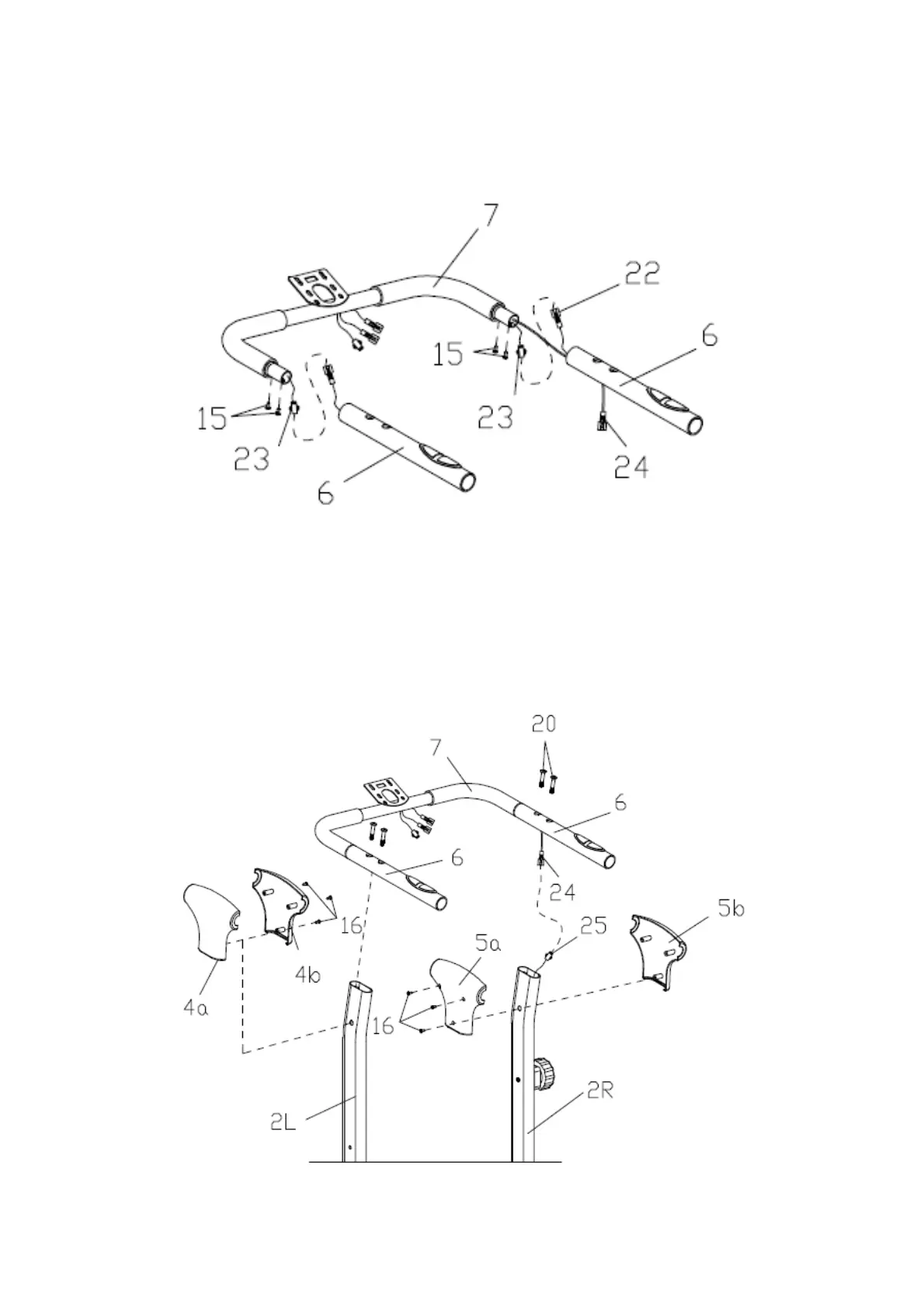

STEP3
1. Pull the Sensor connection wire (24)through the hole in bottom of the right Handlebar(6);
2. Connect the Pulse sensor(22) to the Pulse wire(23), which in two sides of the Handlebar(6),then
fix the Handlebar(6) to the Fixed handlebar(7) with Cross pan head screw (15).
STEP 4
1. Connect Sensor connection wire (24) and Sensor connection wire (25), then fix Handlebar (6) to
the Left and right upright post (2L/R) with Hexagon socket pan head screw(20).
2. Fix the Left and right handlebar cover (4a/b, 5a/b) to the Left and right upright post (2L/R) with
Cross pan head self tapered screw (16).
