FINAL ASSEMBLY

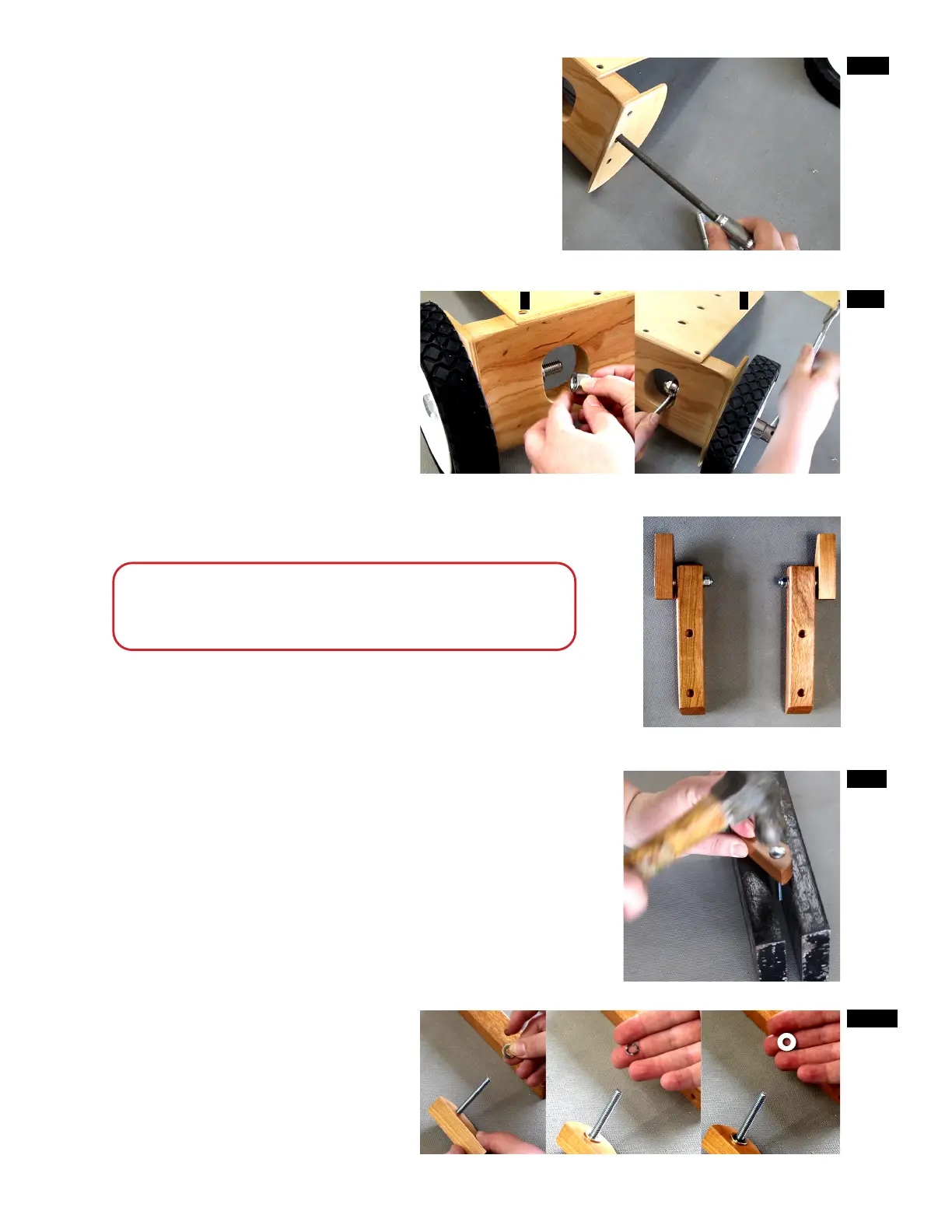

____10. Make sure the bolt will spin freely in the
hole. If it’s a little tight, ream it out a little
with a rat tail file or drill bit. (fig. 10)
FIG. 10
Place the bolt through the wheel
with the flat side of the wheel
on the outside. Place the washer
on the bolt and then install the
locking nut. (fig. 11A)
Use two 3/4” wrenches or sockets
to tighten the bolt. Be sure that
the wheel is able to spin free-
ly but is tight enough so that it
doesn’t wobble when it moves.
(fig. 11B)
____11.
FIG. 11
BA
____12. Use a solid surface as a foundation to pound the carriage
bolt to seat it into the brake. (fig. 12)
Be sure the next bolt is installed on the opposite side.
Double check yourself.
p
You must assemble the brakes in a mirror image. Be sure
that there is one right and one left.
FIG. 12
Mirror Images
Sandwich the spring wash-
er with two 1/4” steel washers
(fig. 13A)
____13.
FIG. 13A
