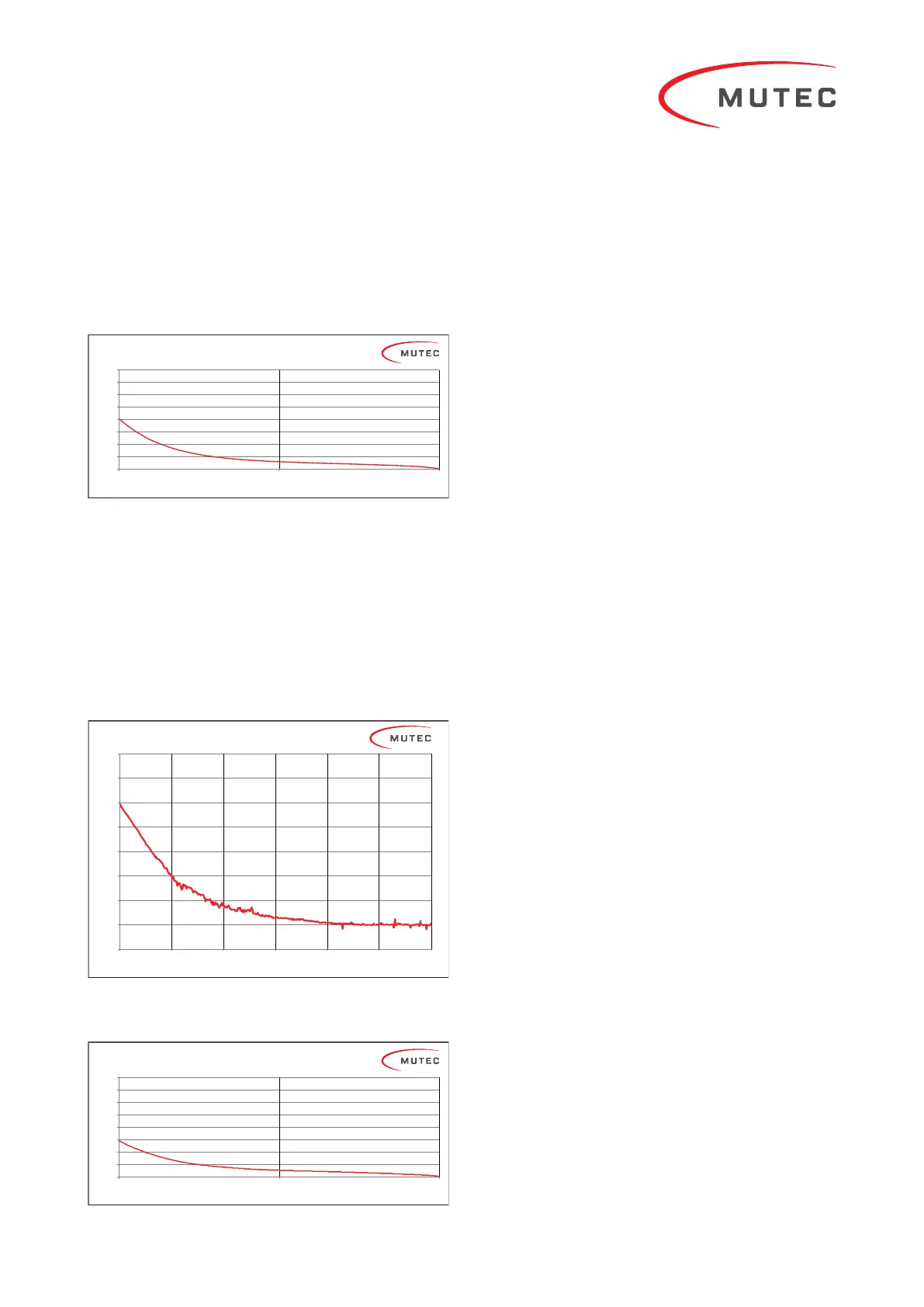

Jitter measured at REF10's outputs (!):
•
1-100 Hz: ≈ 22 fs
Phase noise measured at REF10 SE120's outputs (!):
•
1 Hz: ≤ -120 dB/c
•
10 Hz: ≤ -148 dB/c
•
100 Hz: ≤ -162 dB/c
•
1000 Hz: ≤ -167 dB/c
•
Noise Floor: ≤ -170 dB/c
(Disclaimer: All measurement figures represent average values. Minor
production related deviations will be expected.)
Jitter measured at REF10 SE120's outputs (!):
•
1-100 Hz: ≈ 15 fs
Power Supply:
•
Type: internal, linear dual power supply
•
Input voltages: 90-125 V / 200-240 V, 50-60 Hz
•
Power consumption: 12 W during oscillator warm-up, 8 W
nominal operation
•
Fuse of power entry module: 2 x FST1,0B,1B, slow-blow,
250 V / 1 A, 20 x 5 mm
Mechanical Details:
•
Enclosure size/material/color: 196 x 84 x 300 mm (W x H
x D, without connectors and case feet), 1,5mm steel, black
powder-coated
•
Front panel size/material/surface/color: 198 x 88 x 8 mm
(W x H x D), aluminium, anodized incl. anodic printing or
silk screening, aluminium- or black-colored
•
Weight: approx: 4350 g (9 lb, 9.5 oz)
REF10 Order Information:
•
Front Aluminum-colored: Item No. 8015-105,
EAN Code: 4260342461044
•
Front black-colored: Item No. 8015-106,
EAN Code: 4260342461051
REF 10 SE120 Order Information:
•
Front Aluminum-colored: Item No. 8015-107,
EAN Code: 4260342461075
•
Front black-colored: Item No. 8015-108,
EAN Code: 4260342461082
