Chapter 2 Compressor Specifications and Structure
SCV-series Screw Compressor 2.4 Compressor Structure and Mechanism
2-19

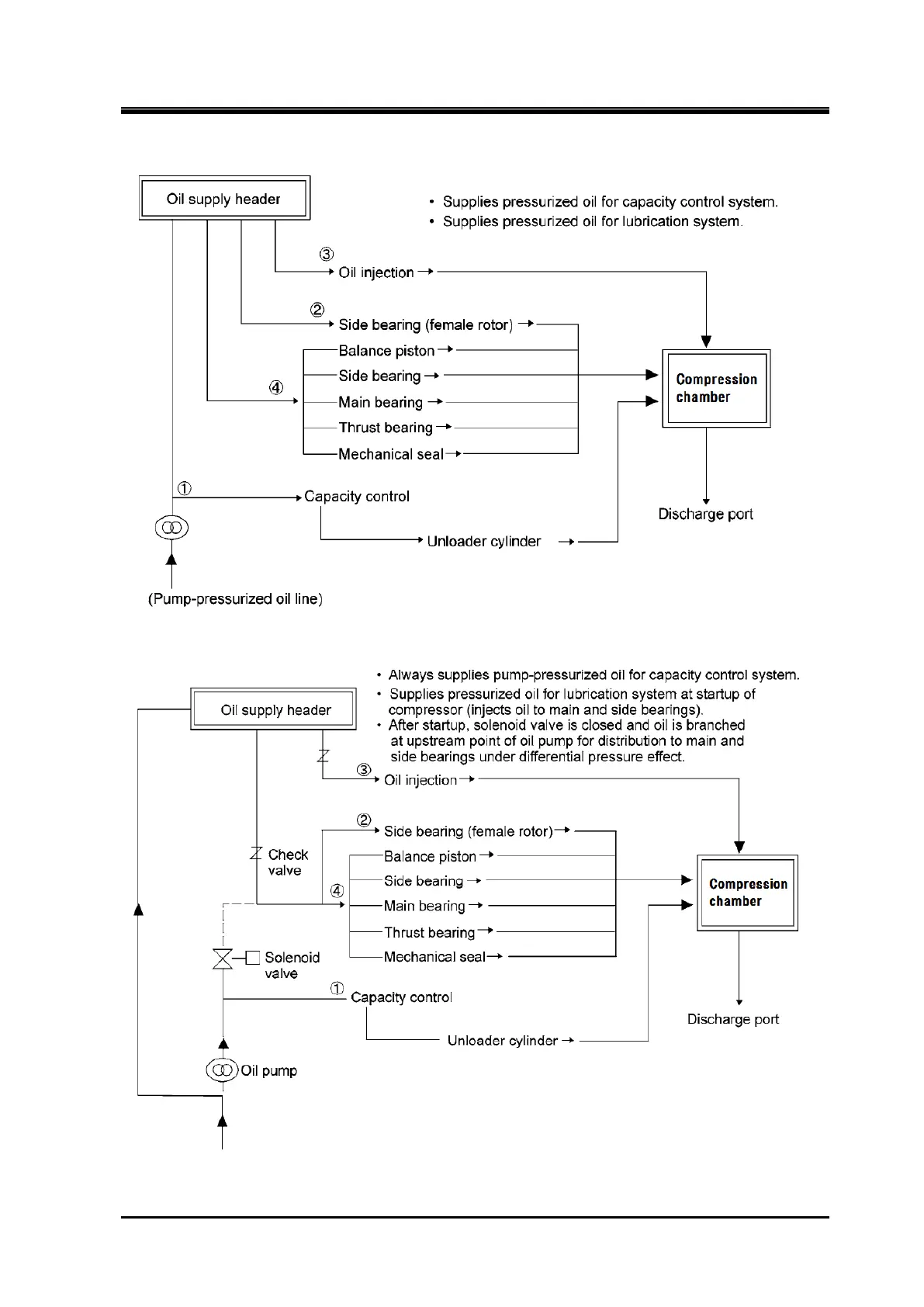

Figure 2-14 Oil Supply Route of Forced Oil Supply System
Figure 2-15 Oil Supply Route of Differential Pressure Oil Supply System
