Chapter 4 Compressor and Package Unit Operation
SCV-series Screw Compressor 4.1 Adjustment of Vi
4-4

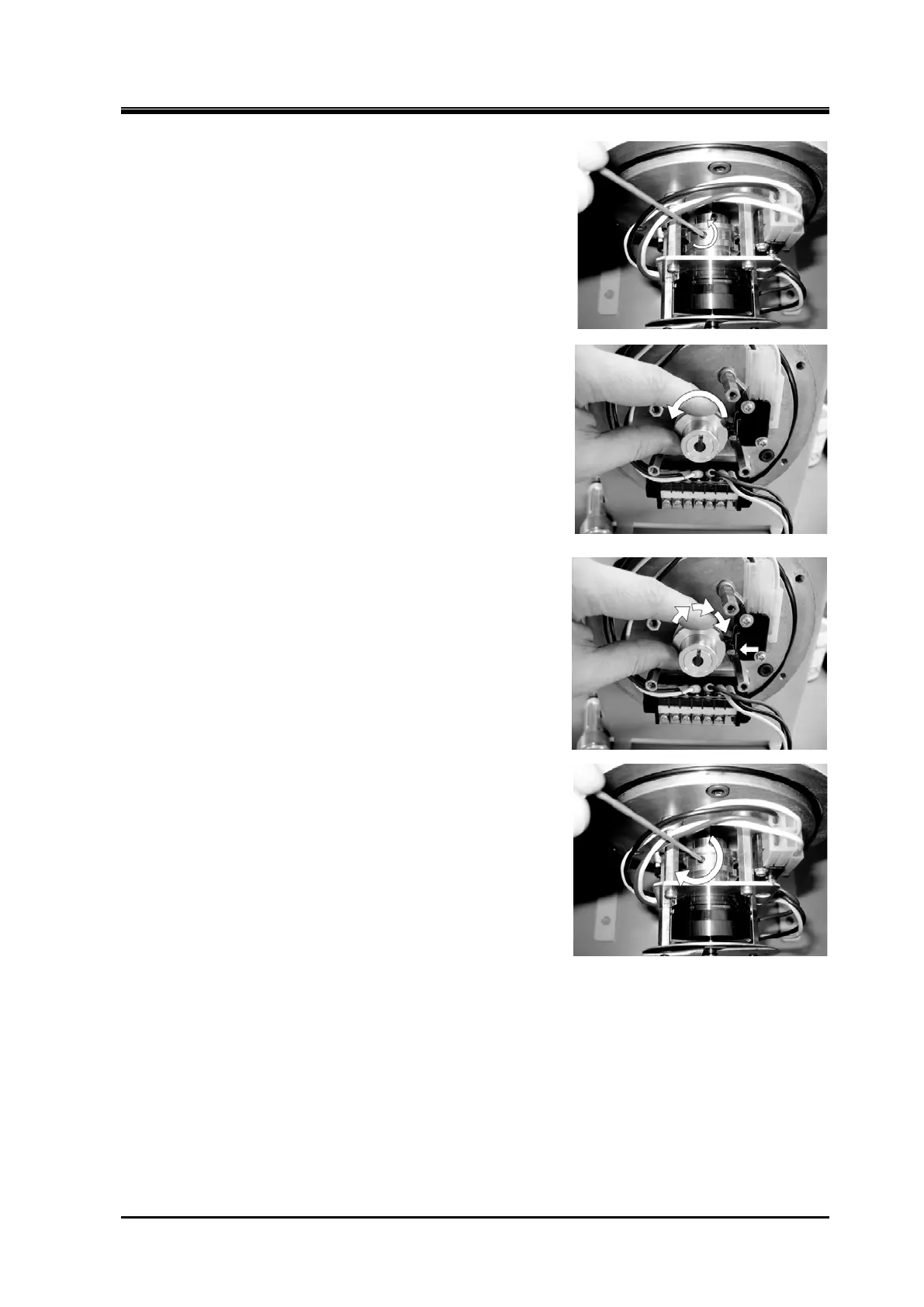

o) Adjust the position of micro switch cam No.2.
Remove the cover and loosen the micro switch cam set
screw.
p) Turn counterclockwise until the micro switch lever is raised.
q) Slowly turn clockwise, and stop turning when the micro
switch lever is lowered.
r) While holding the micro switch cam stationary, tighten the
micro switch cam set screw.
