mycom 320SUD

Chapter 5 Maintenance and Inspection
UD-series Screw Compressor 5.5 Reassembly
5-66
Micro-switch
（
For signals at slide valve full
load (100 %) position ）
1 (1)
Micro-switch
（
Slide valve partial load position
signal, for 50 % load ）
1 (1)
Micro-switch（
Slide valve partial load position
signal, for special specifications）
2
Micro-switch Cam（For 0-100 % operation
）
1
Micro-switch Cam
（
For 0-50 % or 50-100 %
operation）
1 1
Micro-switch Cam
（
For special operation
）
1

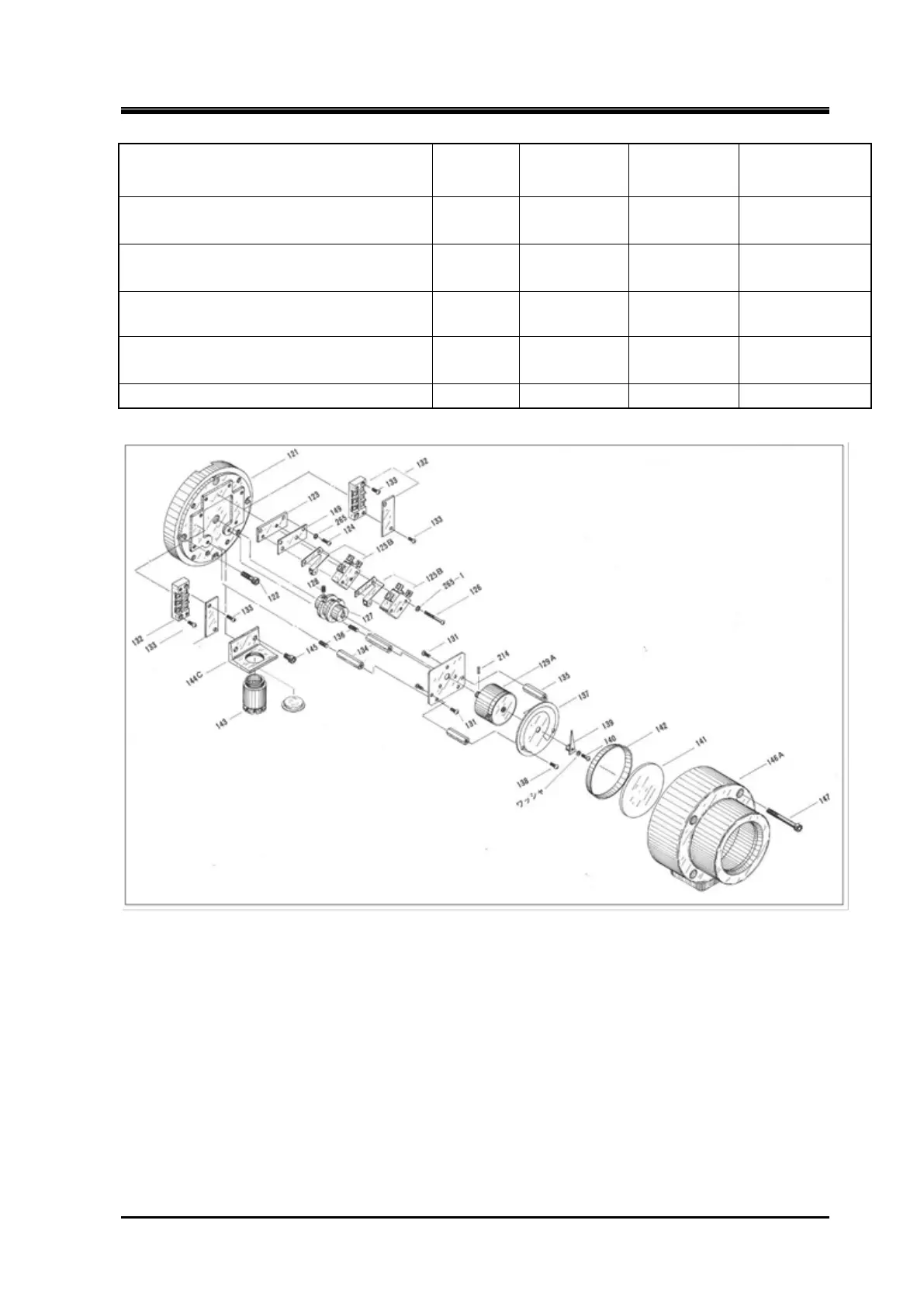

Figure 5-29 Development View of the Unloader Indicator(125 type)
