Chapter 2 Compressor Specifications and Configuration
Screw Compressor i-series 2.4
Configuration of Compressor
2-18
2.4 Configuration of Compressor
2.4.1 Sectional Views
Figure

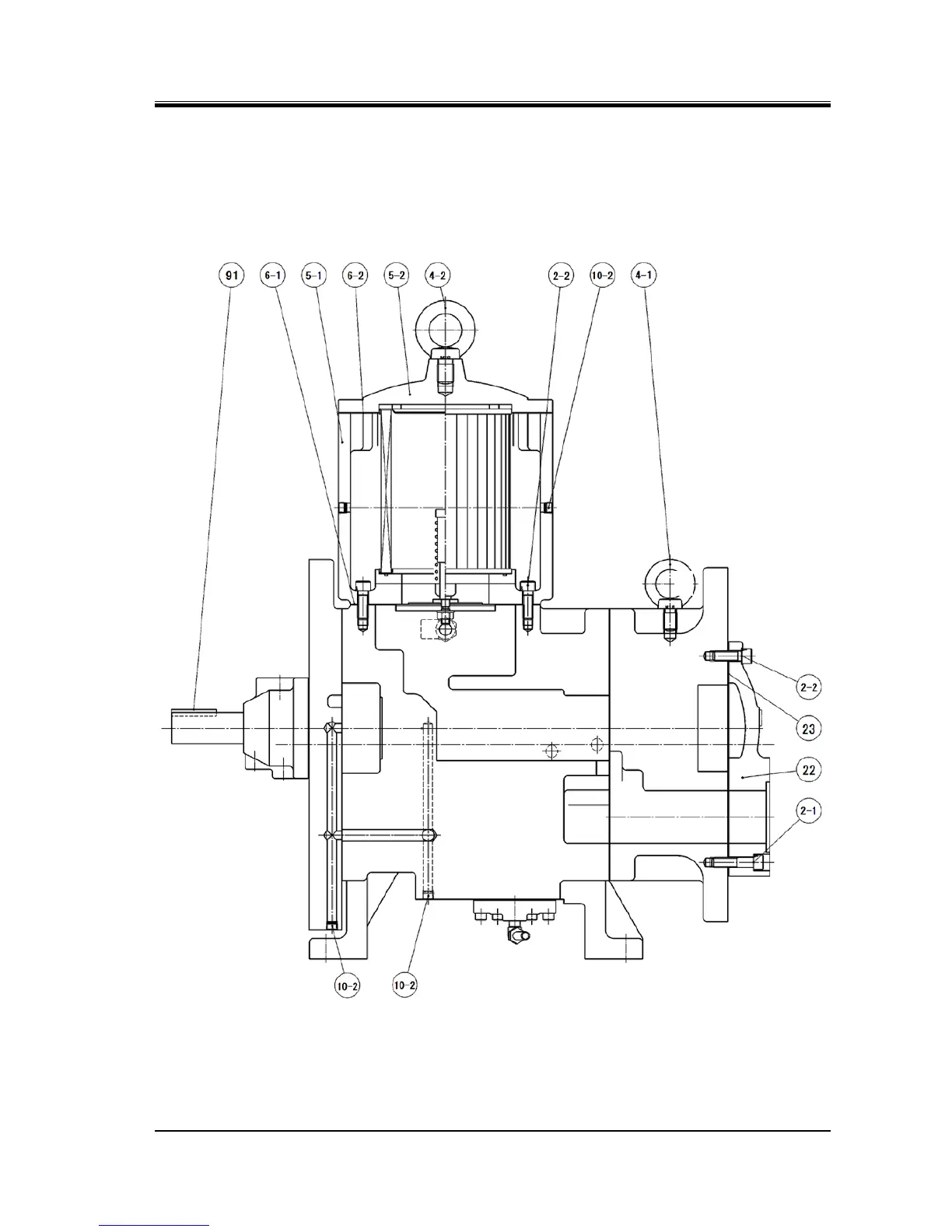

2-14 i125L Longitudinal Sectional View
