Myron L ULTRAPEN PT2 User Manual

1
INTRODUCTION
Thank you for purchasing the Myron L ULTRAPEN™ PT2 pH
Pen. This instrument is designed to be extremely accurate,
fast and simple to use in diverse water quality applications.
Advanced features include automatic temperature
compensation; highly stable microprocessor-based circuitry;
user-intuitive design; and waterproof housing. A true one-
handed instrument, the PT2 is easy to calibrate and easy to
use. To take a measurement, you simply push a button then
dip the pen in solution. Results display in seconds.

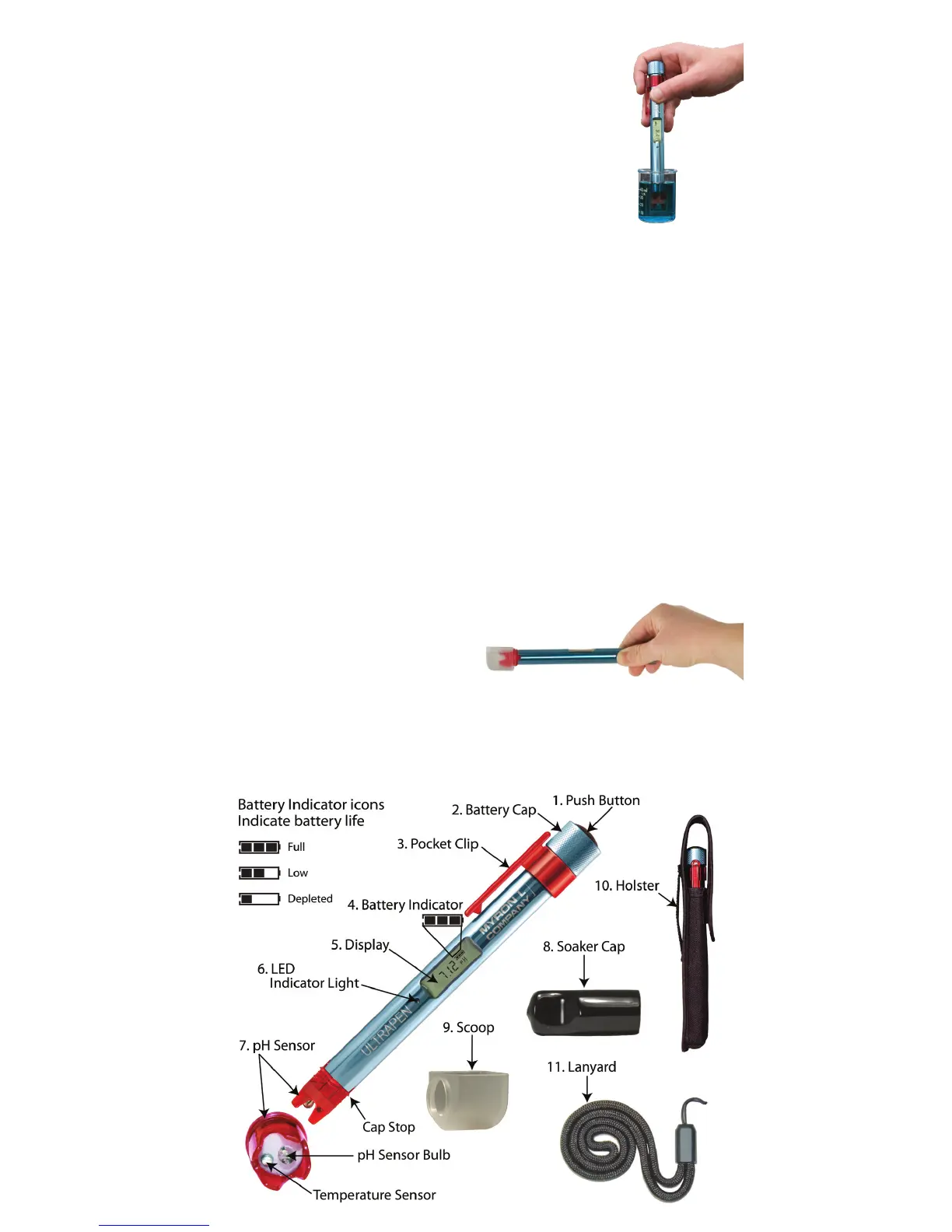

FEATURES
1. Push Button—turnsinstrumenton;selectsmodeandunitpreferences.
2. Battery Cap—providesaccesstobatteryforreplacement.
3. Pocket Clip—holdspentoshirtpocketforsecurestorage.
4. Battery Indicator—indicates life remaining in battery.
5. Display — displays measurements, menu options, battery indicator, and
rmwarerevision(duringpower-up).
6. LED Indicator Light — indicates when to dip instrument in solution, when
measurement is in progress, and when to remove instrument from solution.
7. pH Sensor—measureshydrogenionconcentrationofsolution.
8. Soaker Cap—contains pH Sensor Storage Solution to maintain sensor hydration.
To remove, twist the soaker cap while pulling off using caution not to spill the Storage
Solution. Toreplace,llthesoakercaphalf full with storage solution. Twist the soaker
cap while pushing back on usingcautionasexcessStorageSolutionmaysquirtout.
CAUTION: Fill the soaker cap ONLY half full of solution for storage.
CAUTION: Do NOT push the soaker cap beyond the Cap Stop as sensor damage
WILL occur.
NOTE: The formation of KCl crystals around the soaker cap is normal. These
crystals do not affect the sensor life, performance, or accuracy provided they are
rinsed off with water prior to a test.
9. Scoop —used to hold samplesolution when dipping is not
possible. To install, push the scoop onto the sensor while
shifting side-to-side. To remove, pull the
scoop off while shifting side-to-side. Verify
the pH sensor remained fully inserted into the PT2. If not, reinstall per pH Sensor
Replacement, p. 5. To use, pour solution into the scoop or hold the scoop directly
under a vertical stream to collect sample.
10. Holster—runyourbeltthroughthestrapinthebackoftheholsterforhands-
free portability.
11. Lanyard—attachthroughholeintopofpocketclip.
