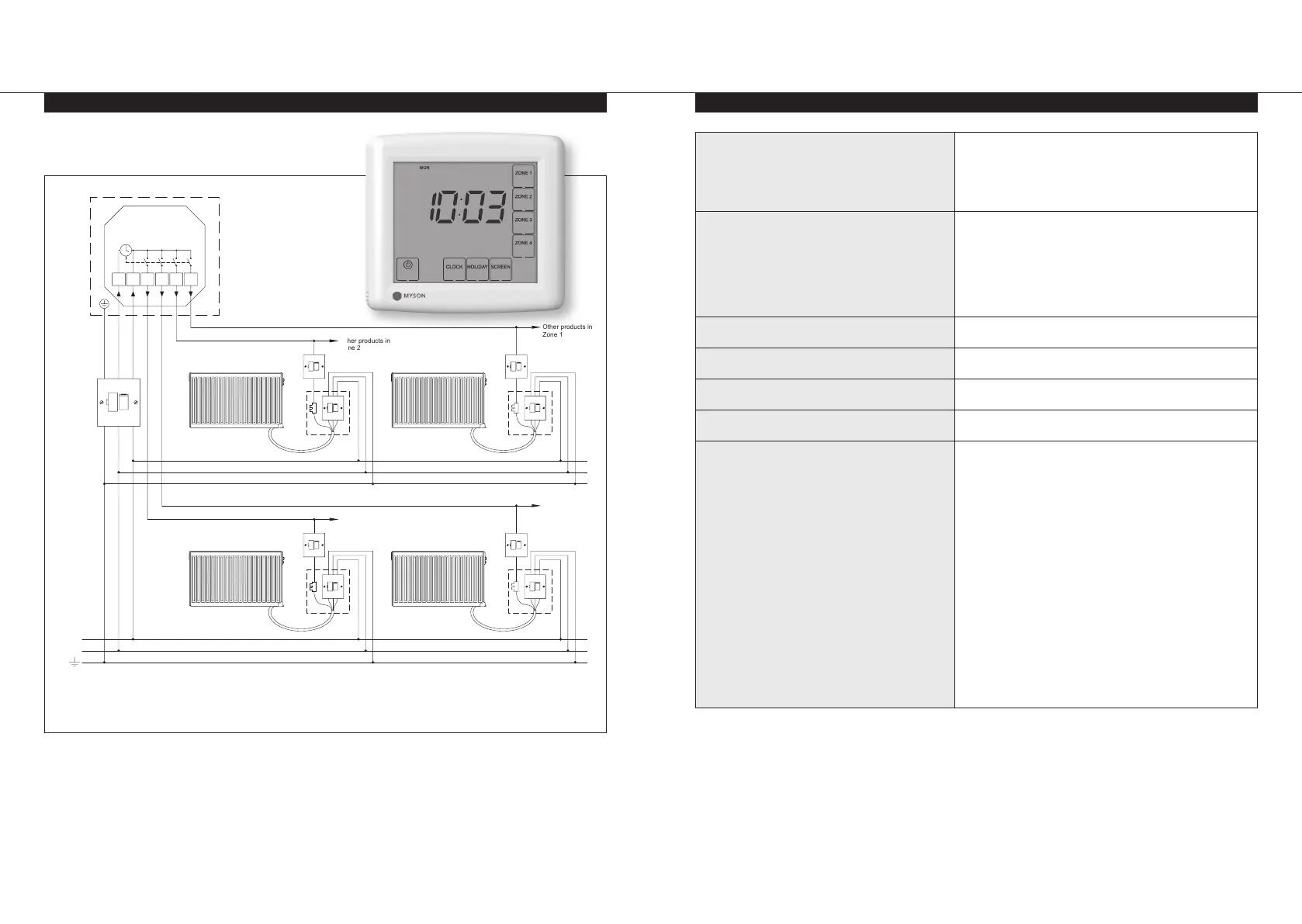

9.0 Radiator Connected to the TOUCH4 Programmer (cont...) 10.0 Technical Characteristics
BRBLG/Y
Zone 2 Zone 1
G/YBLBR
BK
Zone 4 Zone 3
Live
Neutral
BR
BL
G/Y
G/Y
BLBR
BK
G/Y
BLBR
BK
G/Y
BLBR
BK
NL
CH4 CH3 CH2 CH1
Touch
4
BRBLG/Y
Other products in
Zone 1
Other products in
Zone 2
Other products in
Zone 3
Other products in
Zone 4
ON
ON
ON ON
ON
ON
ON
ON
F
U
S
E
ON
F
U
S
E
F
U
S
E
F
U
S
E
F
U
S
E
F
U
S
E
F
U
S
E
F
U
S
E
F
U
S
E
Figure 8.
When installing in a bathroom or wet room, please refer to the installation positions in Section 4.0 Installation on page 6.
Wire Colours
BR = Brown
BK = Black
BL = Blue
G/Y = Green/Yellow
A suitable means of local isolation of the radiator from both the electrical supply and the pilot wire signal must be provided.
The fused spurs must be clearly marked to indicate that two sources of electrical supply may be present. The outputs from
the programmer are switched Live.
ENVIRONMENT:
- Operating temperature
- Transportation and storage temperature
-30°C to +50°C
-30°C to +70°C
RANGES FOR TEMPERATURE SETTINGS:
- Comfort mode
- Reduced mode
- Frost protection mode
+5°C to +30°C
Temp reduction between -3.5°C and -15°C
+7°C
ELECTRICAL INSULATION Class I
ELECTRICAL PROTECTION IP44
IMPACT PROTECTION IK08
POWER SUPPLY 230 VAC - 50 Hz
DIRECTIVES & STANDARDS:
The product has been designed to
comply with the following Directives and
Standards.
• EN 60730-1
• EN 60335-1
• EN 60335-2-30
• EN 62233
• EN 55014-1
• EN 55014-2
• EN 61000-3-2
• EN 61000-3-3
• EN 60529
• LV Directive 2014/35/EU
• EMC Directive 2014/30/EU
• RoHS Directive 2011/65/EU
• ECO Directive 2009/125/EC
