6 Mytek Brooklyn AMP User’s Manual 7
1. RCA unbalanced analog inputs (right & left)
2. XLR balanced analog inputs (right & left)
Note that if you are using BRIDGE or BI-AMP mode, only the
left input channel is effective
3. Speaker output connectors
4. Mains power connector, 100-240VAC 50/60 Hz
5. Dipswitches enable different functions / operation modes
6. Trigger connector.
7. USB interface allows
5. Quick Start

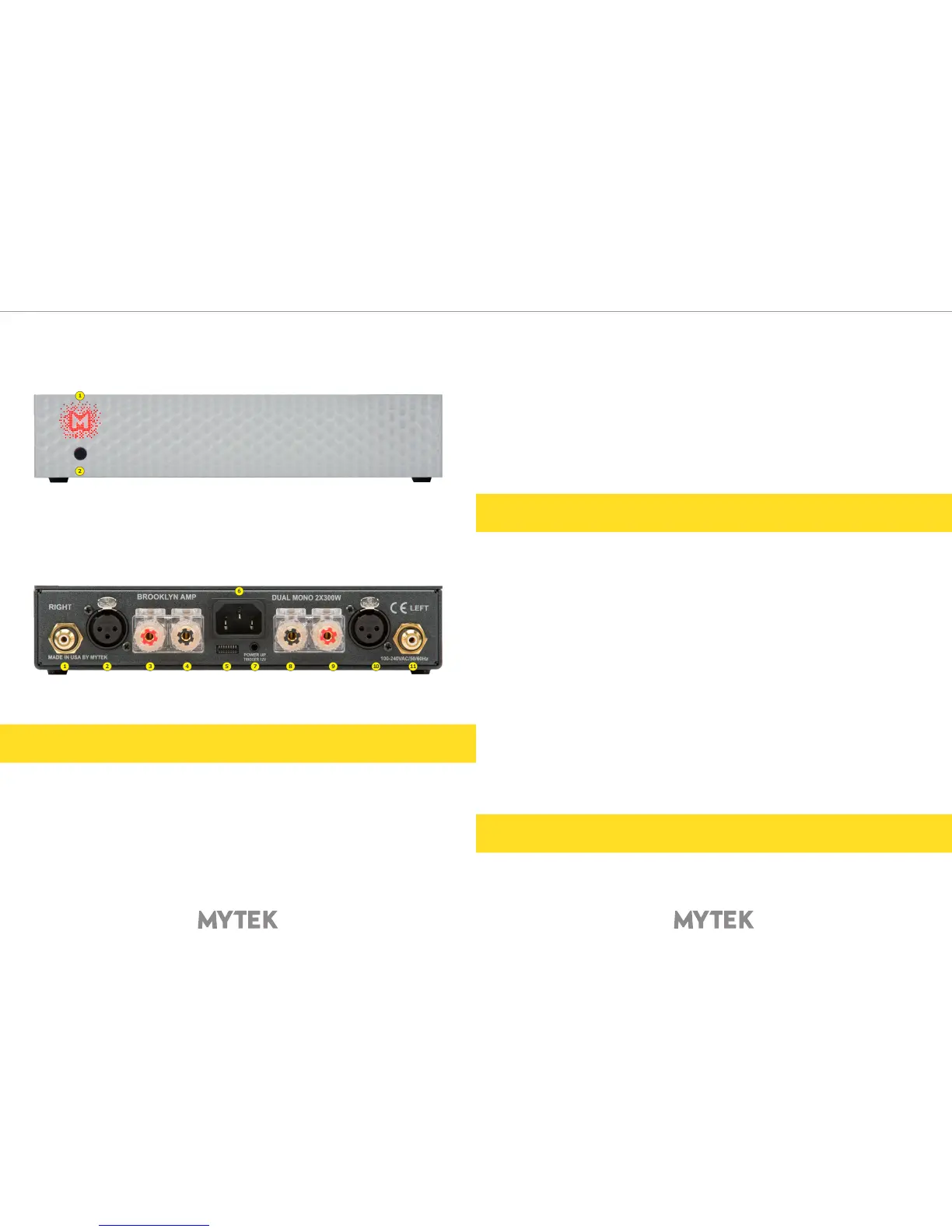

5.1 Front Panel
1. Mytek backlit logo with its color and brightness user adjustable. Color follows the color of the Mytek
Control Panel software.
2. On / Off button - press the button located at the front panel to switch the AMP on and off
5.2 Rear Panel
For best audio performance always use a high quality cables!
5.3 DIP Switches Conguration
There are eight dipswitches on the rear panel of the Brooklyn AMP. Each of them activates different
function.
Upper position = off (default setting)
Lower position = on
• 1 2nd off / on – power up trigger
• 3rd not used at the moment
• 4th not used at the moment
• 5th AMP gain (0 up, +6 dB down)
• 6th AMP mode (balanced = up, unbalanced = down)
Attention: User should switch the dipswitch to balanced mode
when using XLR connections or to unbalanced when using RCA.
• Dipswitches 7th and 8th work together:
• when 7 is up the AMP works in a regular stereo mode
• when 7 is down the AMP mode depends on dipswitch #8 setting;
• when 8 is up the AMP works in Bi-amp mode.
• when 8 is down the AMP works in a Bridge mode.
6. OPERATING MODES and their settings
STEREO (default mode) - channels left and right operate independently as with a conventional
stereo amplier. The right input channel goes to the right output channel, and the left input channel
goes to the left output channel.
BRIDGE (two units of Brooklyn AMP are required)– two amplier channels are internally connected in
such a way that twice the output power is available. Settings: dipswitches 1, 7, 8 in lower position.
Input signal should be connected to left input either XLR or RCA. The speaker should be connected
to plus, red inputs. In a bridge mode actually left plus is a plus indeed, right plus is a minus. Black
connectors remain unused.
BI-AMP - the left input channel signal is output through both: the right and the left output. The
right input channel does not function in this mode. Settings: dipswitches 1, 7 in lower position.
Input signal should be connected to left input either XLR or RCA. The speakers should be connected to
minus (black) and plus (red) outputs.
Attention: Do NOT connect cables to XLR and RCA inputs at the
same time! It could cause a damage of your Mytek Brooklyn AMP.
