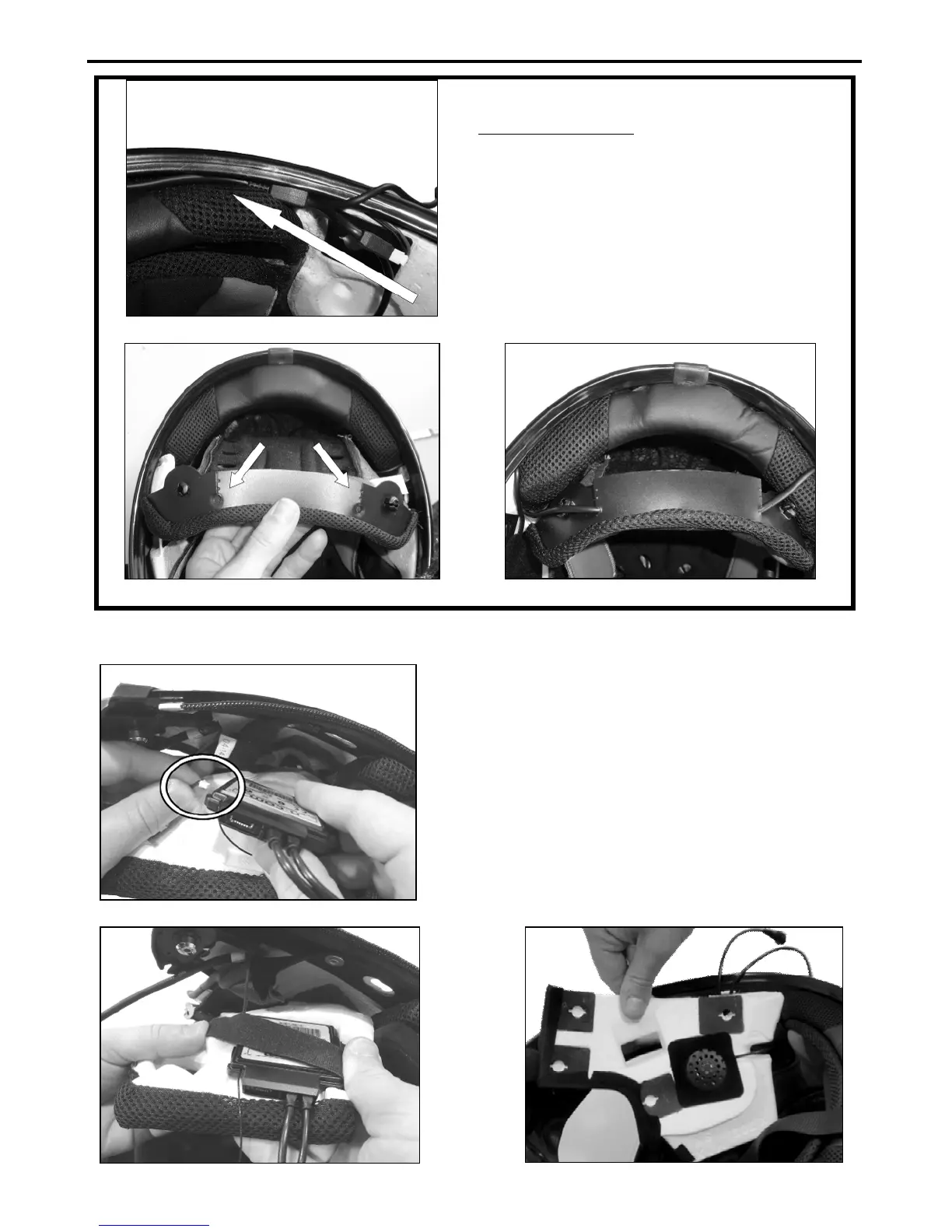

Fig. 21
Only for X702 helmet
 Position the battery connector and wiring
underneath the shell gasket (Fig. 21).
 Cut along the pre-cut lines of the plastic tab
on the back of the comfort padding (Fig. 22).
 Secure the wiring underneath the plastic tab.
Close the cut parts using the cable fixing
adhesives (Fig. 23).
Fig. 22 Fig. 23
3.6. Positioning the e-box
Fig. 24
 Connect the microphone to the e-box.
(Fig. 24)
 Position the e-box in the left
polystyrene cheek pad housing. (Fig. 25)
 Position the left-hand side speaker in
the cheek pad housing and secure it
using the specific adhesive. (Fig. 26)
Fig. 25 Fig. 26
