Appendix: Design Scheme of Input Gear
76

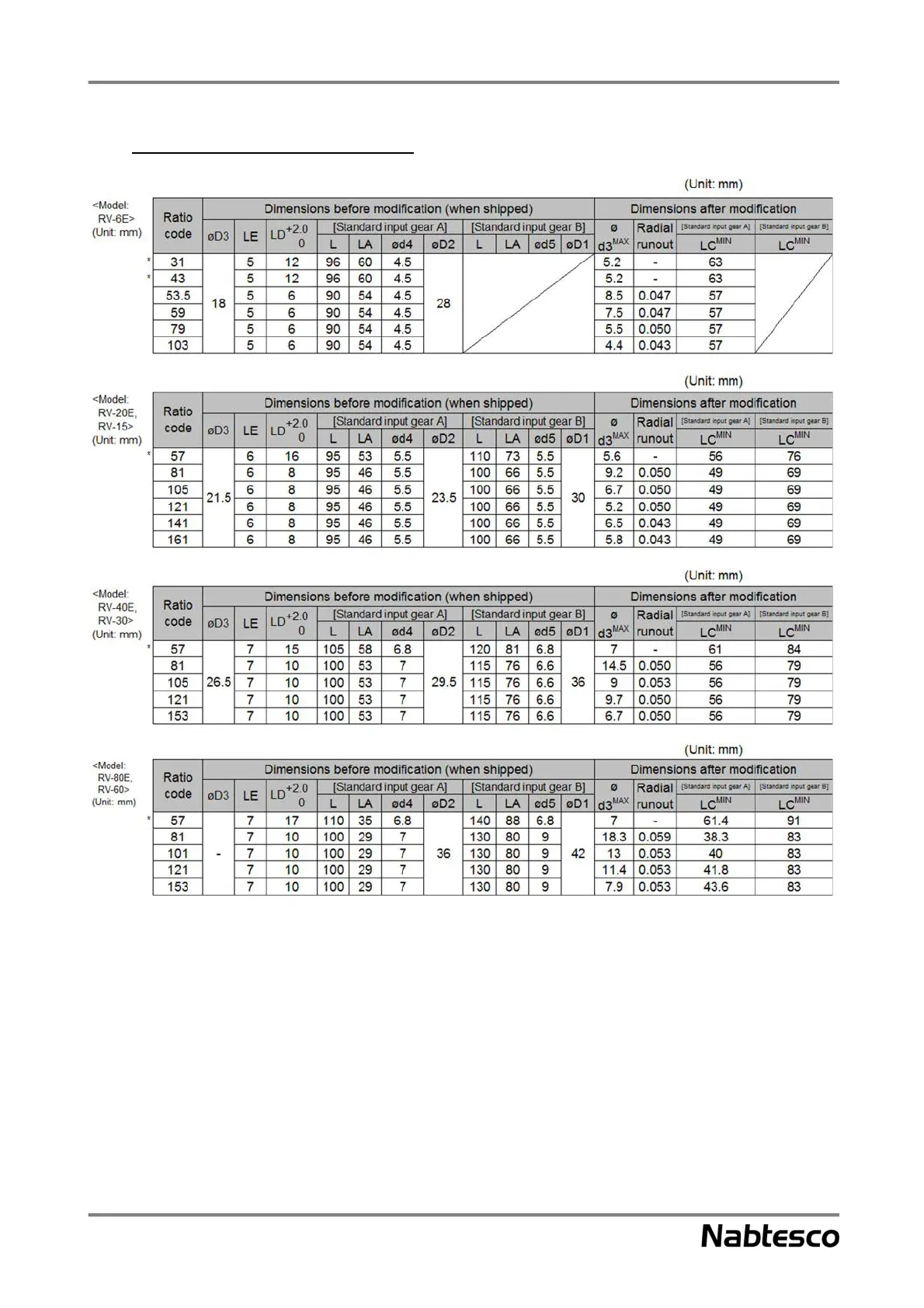

Dimensions of standard input gear
The ratio code marked with * indicates the dimensions of the standard input spline.
For the gear tooth specifications, refer to “Gear tooth specifications for each input spline model” on page 77.
