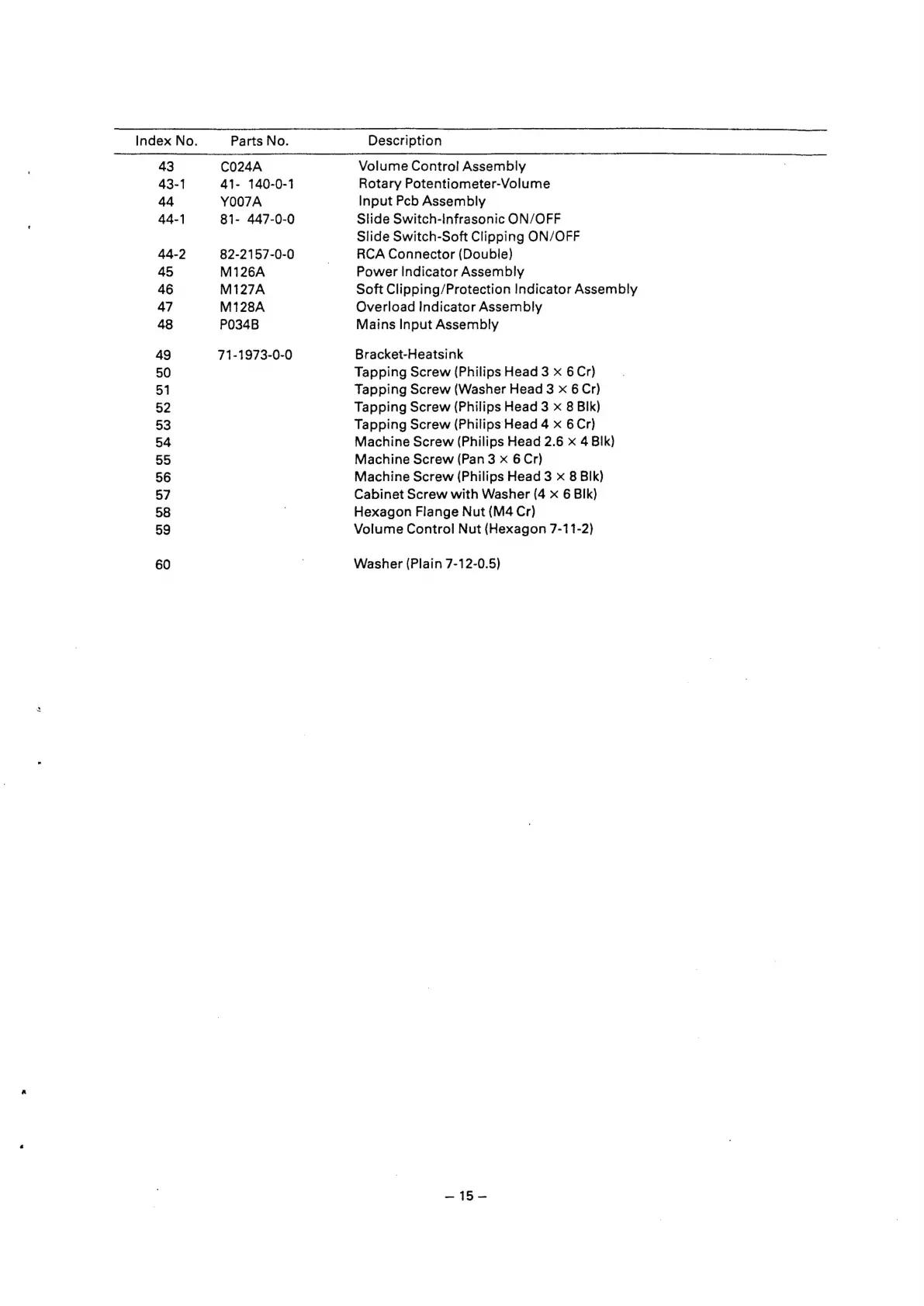

NAD 2400 - Page 11

Index No. Parts No. Description
43 C024A Volume Control Assembly
43-1 41- 140-0-1 Rotary Potentiometer-Volume
44 YO07A Input Pcb Assembly
44-1 81- 447-0-0 Slide Switch-infrasonic ON/OFF
Slide Switch-Soft Clipping ON/OFF
44-2 82-2157-0-0 RCA Connector (Double)
45 M126A Power Indicator Assembly
46 M127A Soft Clipping/Protection Indicator Assembly
47 M128A Overload Indicator Assembly
48 P034B Mains Input Assembly
49 71-1973-0-0 Bracket-Heatsink
50 Tapping Screw (Philips Head 3 x 6 Cr)
51 Tapping Screw (Washer Head 3 x 6 Cr)
52 Tapping Screw (Philips Head 3 x 8 BIk)
53 Tapping Screw (Philips Head 4 x 6 Cr)
54 Machine Screw (Philips Head 2.6 x 4 Blk)
55 Machine Screw (Pan 3 x 6 Cr)
56 Machine Screw (Philips Head 3 x 8 Blk)
57 Cabinet Screw with Washer (4 x 6 Blk)
58 Hexagon Flange Nut (M4 Cr)
59 Volume Control Nut (Hexagon 7-11-2)
60 Washer (Plain 7-12-0.5)
