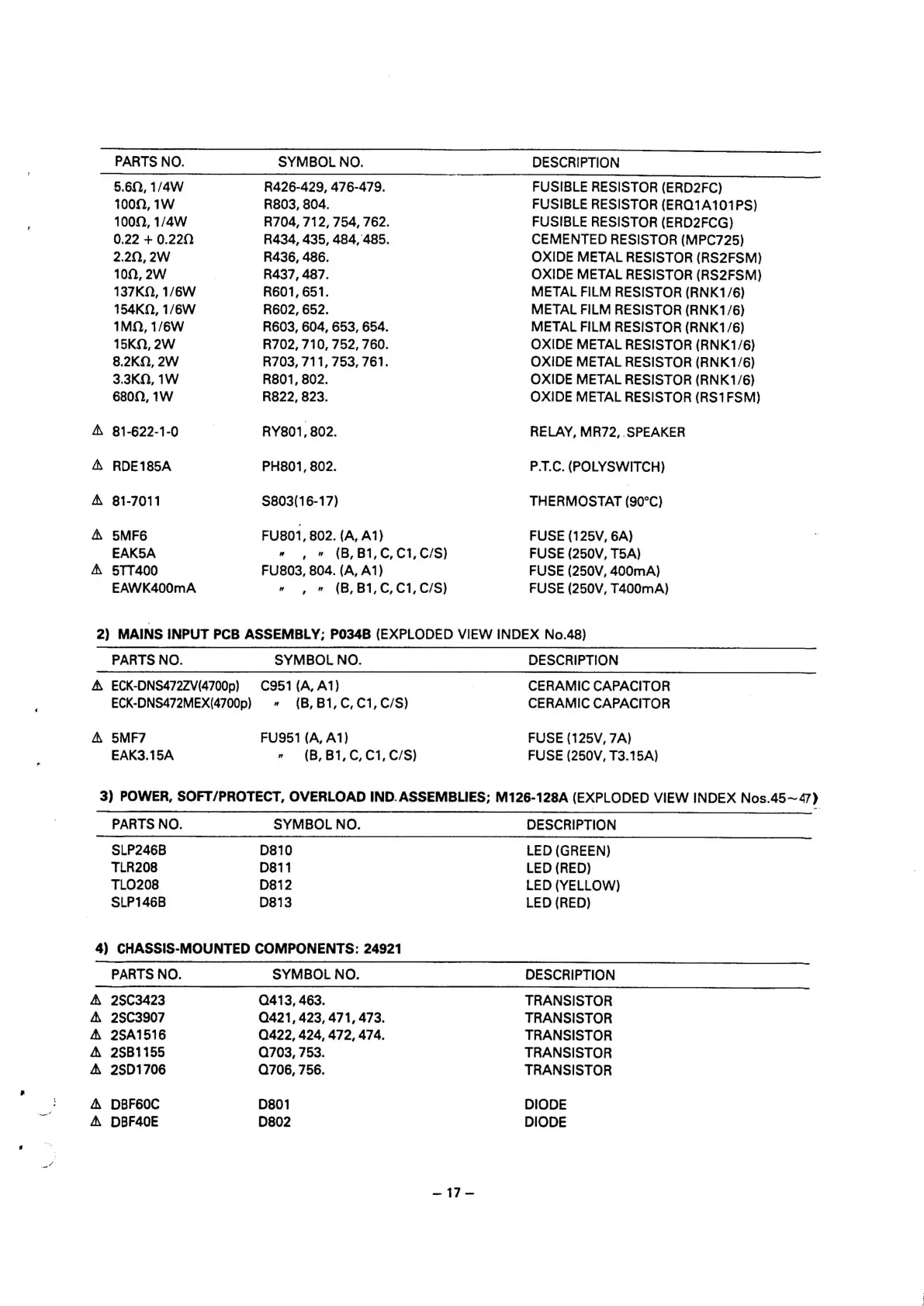

NAD 2400 - NAD 2400 Electrical Parts List (Other PCBs); Mains Input PCB Component List; Indicator Assemblies Component List; Chassis-Mounted Components Listing

PrP PrP P PP PB
PARTS NO.
5.622, 1/4W
10020, 1W
1002, 1/4W
0.22 + 0.220
2.20, 2W
100, 2W
137KQ, 1/6W
154KQ, 1/6W
1MQ, 1/6W
15KQ, 2W
8.2KQ, 2W
3.3KQ, 1W
6800, 1W
81-622-1-0
RDE185A
81-7011
5MF6
EAK5A
5TT400
EAWK400mA
SYMBOL NO.
R426-429, 476-479.
R803, 804.
R704, 712, 754, 762.
R434, 435, 484,485.
R436, 486.
R437, 487.
R601, 651.
R602, 652.
R603, 604, 653, 654.
R702, 710, 752, 760.
R703, 711, 753, 761.
R801, 802.
R822, 823.
RY801, 802.
PH801, 802.
$803(16-17)
FU801, 802. (A, A1)
» , » (B,B1,C, C1, C/S)
FU803, 804. (A, A1)
n , » (B,B1,C,C1,C/S)
DESCRIPTION
FUSIBLE RESISTOR (ERD2FC)
FUSIBLE RESISTOR (ERQ1A101PS)
FUSIBLE RESISTOR (ERD2FCG)
CEMENTED RESISTOR (MPC725)
OXIDE METAL RESISTOR (RS2FSM)
OXIDE METAL RESISTOR (RS2FSM)
METAL FILM RESISTOR (RNK1/6)
METAL FILM RESISTOR (RNK1/6)
METAL FILM RESISTOR (RNK1/6)
OXIDE METAL RESISTOR (RNK1/6)
OXIDE METAL RESISTOR (RNK1/6)
OXIDE METAL RESISTOR (RNK1/6)
OXIDE METAL RESISTOR (RS1FSM)
RELAY, MR72,.SPEAKER
P.T.C. (POLYSWITCH)
THERMOSTAT (90°C)
FUSE (125V, 6A)
FUSE (250V, T5A)
FUSE (250V, 400mA)
FUSE (250V, T400mA)
2) MAINS INPUT PCB ASSEMBLY; P034B (EXPLODED VIEW INDEX No.48)
A, ECK-DNS472ZV(4700p)
ECK-DNS472MEX(4700p)
A
PARTS NO.
5MF7
EAK3.15A
SYMBOL NO.
C951 (A, A1)
» (B,B1,C,C1,C/S)
FU951 (A, A1)
» (B,B1,C, Ci, C/S)
DESCRIPTION
CERAMIC CAPACITOR
CERAMIC CAPACITOR
FUSE (125V, 7A)
FUSE (250V, T3.15A)
3) POWER, SOFT/PROTECT, OVERLOAD IND. ASSEMBLIES; M126-128A (EXPLODED VIEW INDEX Nos.45~47)
PARTS NO. SYMBOL NO. DESCRIPTION
SLP246B D810 LED (GREEN)
TLR208 D811 LED (RED)
TLO208 D812 LED (YELLOW)
SLP146B D813 LED (RED)
4) CHASSIS-MOUNTED COMPONENTS: 24921
PARTS NO. SYMBOL NO. DESCRIPTION
A 2$C3423 Q413, 463. TRANSISTOR
4, 28C3907 0421, 423, 471, 473. TRANSISTOR
A 2SA1516 0422, 424, 472, 474. TRANSISTOR
& 2SB1155 Q703, 753. TRANSISTOR
4 2SD1706 Q706, 756. TRANSISTOR
4. DBF6OC D801 DIODE
4. DBF40E D802 DIODE
