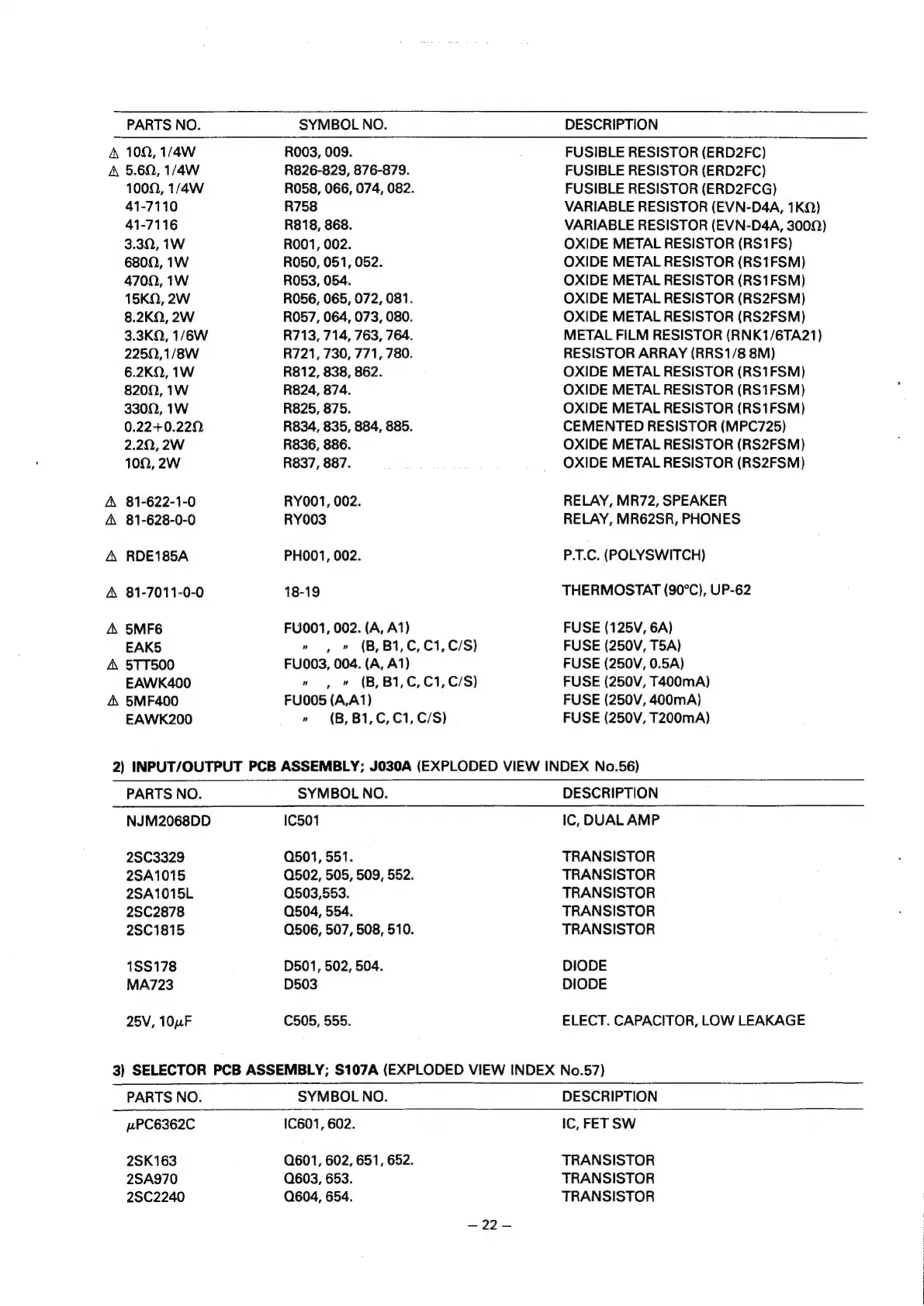

NAD 3400 - Electrical Parts List; Main;Control;Supply PCB Parts; Input;Output PCB Parts; Selector PCB Parts

PARTS NO. SYMBOL NO. DESCRIPTION
A 100, 1/4W R003, 009. FUSIBLE RESISTOR (ERD2FC)
A 5.60, 1/4W R826-829, 876-879. FUSIBLE RESISTOR (ERD2FC)
1000, 1/4W R058, 066, 074, 082. FUSIBLE RESISTOR (ERD2FCG)
41-7110 R758 VARIABLE RESISTOR (EVN-D4A, 1KQ)
41-7116 R818, 868. VARIABLE RESISTOR (EVN-D4A, 3000)
3.320, 1W R001, 002. OXIDE METAL RESISTOR (RS1FS)
6800, 1W R050, 051, 052. OXIDE METAL RESISTOR (RS1FSM)
4700, 1W R053, 054. OXIDE METAL RESISTOR (RS1FSM)
15KQ, 2W R056, 065, 072, 081. OXIDE METAL RESISTOR (RS2FSM)
8.2KQ,, 2W R057, 064, 073, 080. OXIDE METAL RESISTOR (RS2FSM)
3.3KQ, 1/6W R713, 714, 763, 764. METAL FILM RESISTOR (RNK1/6TA21)
2252, 1/8W R721, 730, 771, 780. RESISTOR ARRAY (RRS1/8 8M)
6.2KQ, 1W R812, 838, 862. OXIDE METAL RESISTOR (RS1FSM)
8200, 1W R824, 874. OXIDE METAL RESISTOR (RS1FSM)
3300, 1W R825, 875. OXIDE METAL RESISTOR (RS1FSM)
0.22+0.220 R834, 835, 884, 885. CEMENTED RESISTOR (MPC725)
2.20, 2W R836, 886. OXIDE METAL RESISTOR (RS2FSM)
100, 2W R837, 887. OXIDE METAL RESISTOR (RS2FSM)
A 81-622-1-0 RY001, 002. RELAY, MR72, SPEAKER
A 81-628-0-0 RY003 RELAY, MR62SR, PHONES
A RDE185A PHO001, 002. P.T.C. (POLYSWITCH)
A
81-7011-0-0
18-19
THERMOSTAT
(90°C),
UP-62
A 5MF6 FU001, 002. (A, A1) FUSE (125V, 6A)
EAK5 » , » {B,B1,C,C1,C/S) FUSE (250V, T5A)
A 5TT500 FU003, 004. (A, A1) FUSE (250V, 0.5A)
EAWK400 » , » (B,B1,C,C1,C/S) FUSE (250V, T400mA)
4. 5MF400 FU005 (A,A1) FUSE (250V, 400mA)
EAWK200 » (B, B1,C, C1, C/S) FUSE (250V, T200mA)
2) INPUT/OUTPUT PCB ASSEMBLY; J030A (EXPLODED VIEW INDEX No.56)
PARTS NO.
NJM2068DD
25C3329
2SA1015
2SA1015L
2SC2878
2SC1815
18S178
MA723
25V, 10F
SYMBOL NO.
IC501
0501, 551.
Q502, 505, 509, 552.
Q503,553.
Q504, 554.
Q506, 507, 508, 510.
D501, 502, 504.
D503
C505, 555.
DESCRIPTION
IC, DUAL AMP
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
DIODE
DIODE
ELECT. CAPACITOR, LOW LEAKAGE
3) SELECTOR PCB ASSEMBLY; S107A (EXPLODED VIEW INDEX No.57)
PARTS NO. SYMBOL NO. DESCRIPTION
pPC6362C IC601, 602. IC, FET SW
2SK163 Q601, 602, 651, 652. TRANSISTOR
25A970 Q603, 653. TRANSISTOR
2$C2240 Q604, 654. TRANSISTOR
